477TTA100M
lmages are for reference only.477TTA100M
CAP ALUM 470UF 20% 100V AXIAL TH
DatasheetAxial, Can
68,918 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 µF 100 V Aluminum Electrolytic Capacitors Axial, Can 353mOhm @ 120Hz 2000 Hrs @ 85°C
477TTA100M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | TTA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 353mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 960 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3248 A @ 50 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia x 1.220" L (16.00mm x 31.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
|

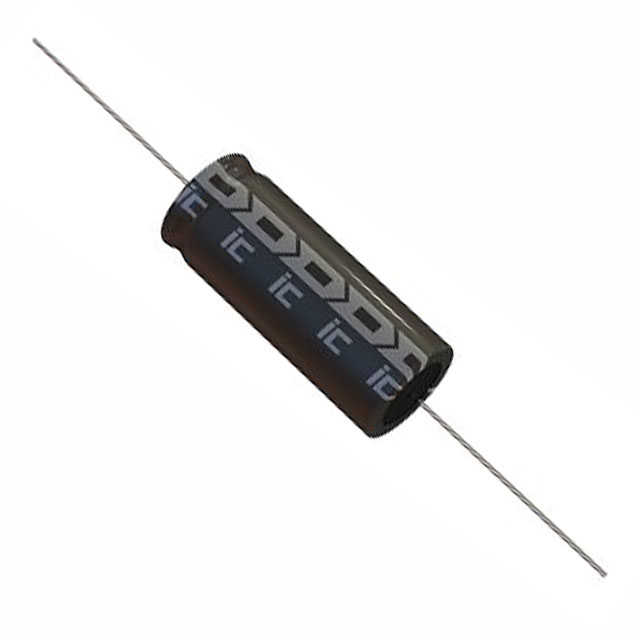

| Part Number | 477TMA010M | 477TMA010M | 477TMA010MSD | 477TMA010MSD |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ELECTROLYTIC/IC | ELECTROLYTIC/IC | ELECTROLYTIC/IC | ELECTROLYTIC/IC |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
