49471SC
lmages are for reference only.49471SC
FIXED IND 470UH 750MA 810MOHM SM
DatasheetNonstandard, 4 Lead
57,433 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 µH Shielded Wirewound Inductor 750 mA 810mOhm Max Nonstandard, 4 Lead
49471SC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | 4900S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 750 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 810mOhm Max |
| Q @ Freq | 37 @ 800kHz |
| Frequency - Self Resonant | 4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Base Product Number | 49 |
| Product Attribute |  |
 |
 |
 |

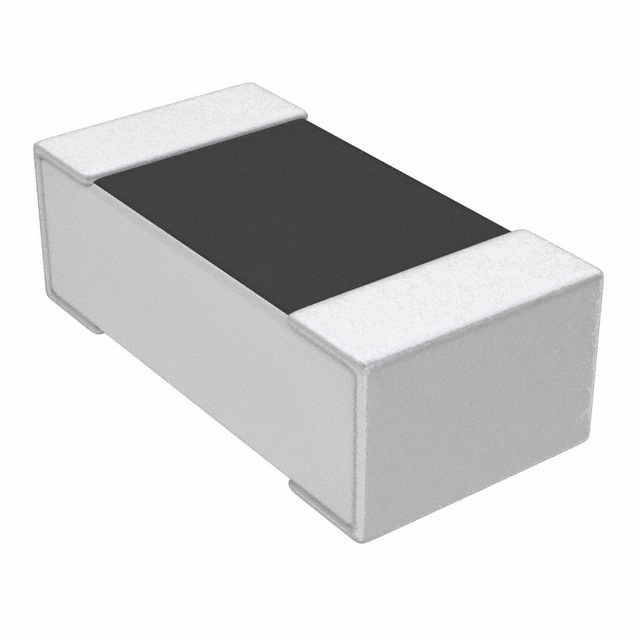

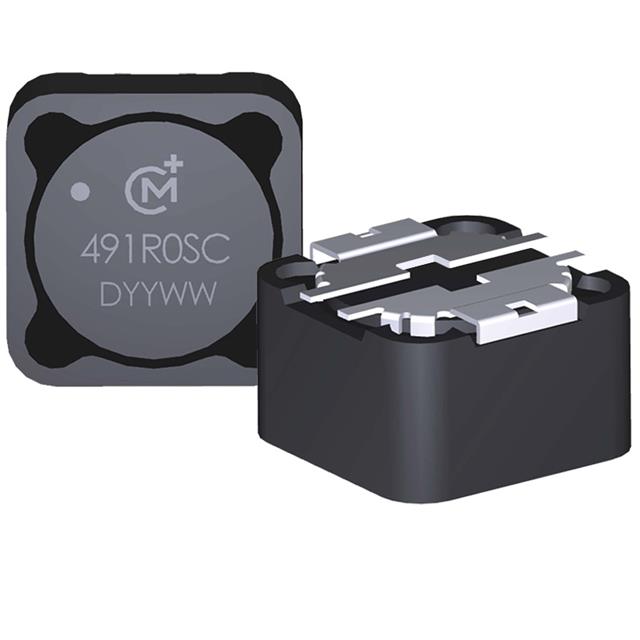

| Part Number | 49470C | 49470SC | 4-2176075-0 | 4-2176075-1 |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 47UH 2.1A 191MOHM SMD | FIXED IND 47UH 2.3A 100MOHM SMD | FIXED IND 4NH SMD | FIXED IND 4.4NH SMD |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
