5-1617785-2

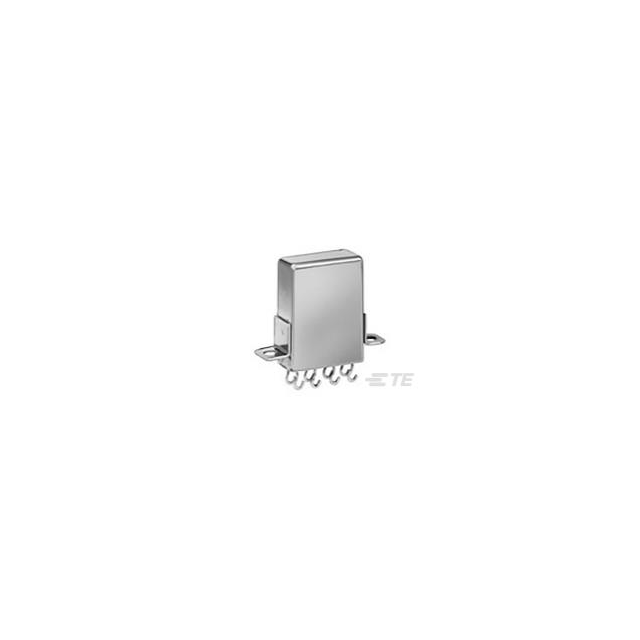

lmages are for reference only.5-1617785-2
FCA-410-1518L=M83536/15-018L
Datasheet-
16,509 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 28VDC Coil Chassis Mount
5-1617785-2
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | FCA-410, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 28VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Load - Max Switching | 1150VA, 280W |
| Coil Current | 96.6 mA |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | Solder Hook |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -70°C ~ 125°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 290 Ohms |
| Base Product Number | 1617785 |
| Product Attribute | |
|
|
|
| Part Number | 5-1617785-0 | 5-1617785-1 | 5-1617785-3 | 5-1617785-4 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FCA-410-1516M=M83536/15-016M | FCA-410-1517L=M83536/15-017L | FCA-410-1518M=M83536/15-018M | RELAY GEN PURPOSE 4PDT 10A |
| Series | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Bulk | Bulk | Bulk | Bulk |
