503HC1102K2SM6
lmages are for reference only.503HC1102K2SM6
CAP FILM 0.05UF 10% 1KVAC CHASS
DatasheetNonstandard
16,000 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.05 µF Film Capacitor 1000V (1kV) Polypropylene (PP) Nonstandard
503HC1102K2SM6
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | HC1 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.05 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 1000V (1kV) |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.677" L x 1.189" W (68.00mm x 30.20mm) |
| Height - Seated (Max) | 1.201" (30.50mm) |
| Termination | Threaded, Female |
| Lead Spacing | - |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | 1.5 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

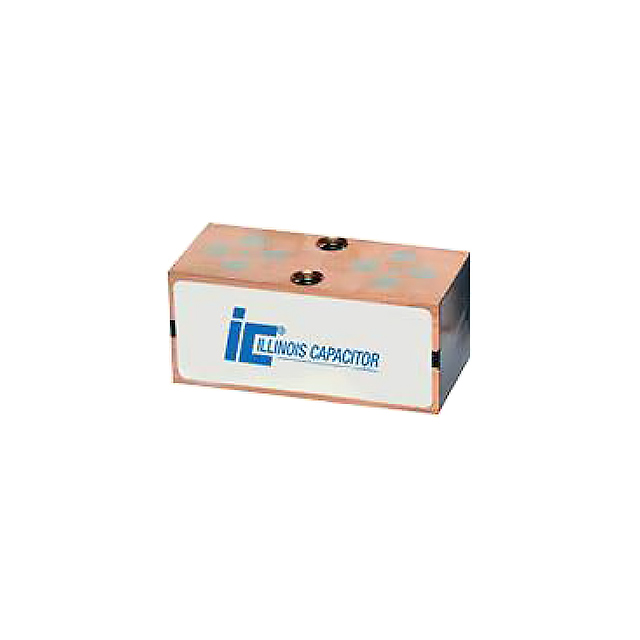

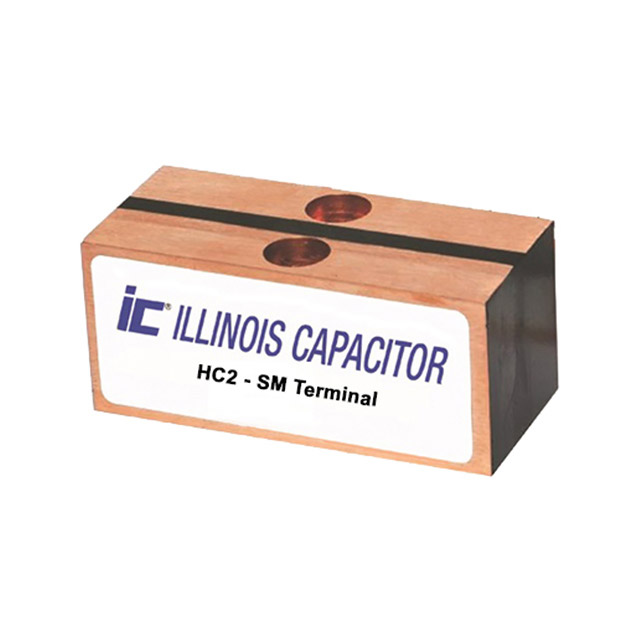

| Part Number | 503HC1102K2CM6 | 503HC2102K2CM6 | 503HC2102K2SM6 | BFC233416274 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.05UF 1KVAC CHAS MT | CAP FILM 0.05UF 1KVAC CHAS MT | CAP FILM 0.05UF 10% 1KVAC CHASS | CAP FILM 0.27UF 10% 400VDC RAD |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
