Product CatalogPart Number
5051101097
Manufacturer
MolexDescription
CONN FFC BOTTOM 10POS 0.5MM R/A
Datasheet
DatasheetPackage
-
In Stock
77,345 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
5051101097
5051101097
lmages are for reference only.Payment Methods
Delivery Services
10 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Quick Inquiry
5051101097
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Molex |
| Series | Easy-On FD19 505110 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 10 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.075" (1.90mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed, Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 150°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | 1.97µin (0.050µm) |
| Housing Color | Beige |
| Actuator Color | Black |
| Mating Cycles | 25 |
| Base Product Number | 505110 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

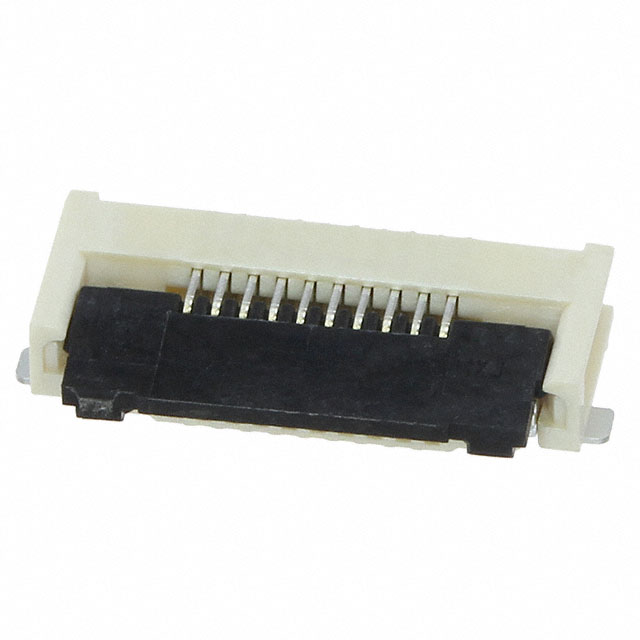

| Part Number | 5051101092 | 5051101192 | 5051101197 | 5051101292 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CONN FFC BOTTOM 10POS 0.5MM R/A | CONN FFC BOTTOM 11POS 0.5MM R/A | 0.5 FPC ZIF BTM CONT EMBT PKG 11 | CONN FFC BOTTOM 12POS 0.5MM R/A |
| Series | Easy-On FD19 505110 | Easy-On FD19 505110 | Easy-On FD19 505110 | Easy-On FD19 505110 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

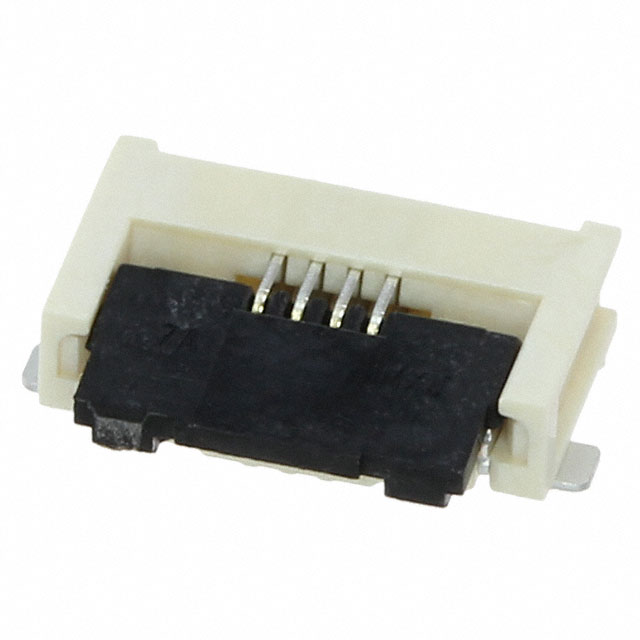

5051100492
Molex
5051100497
Molex

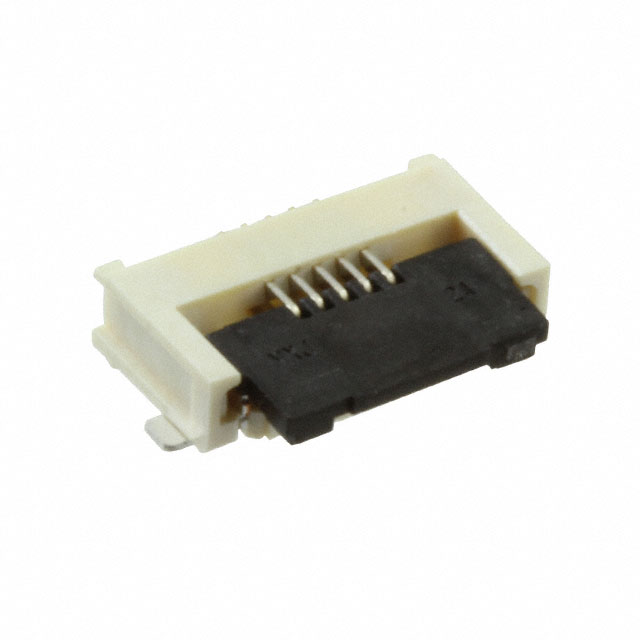

5051100592
Molex
5051100597
Molex

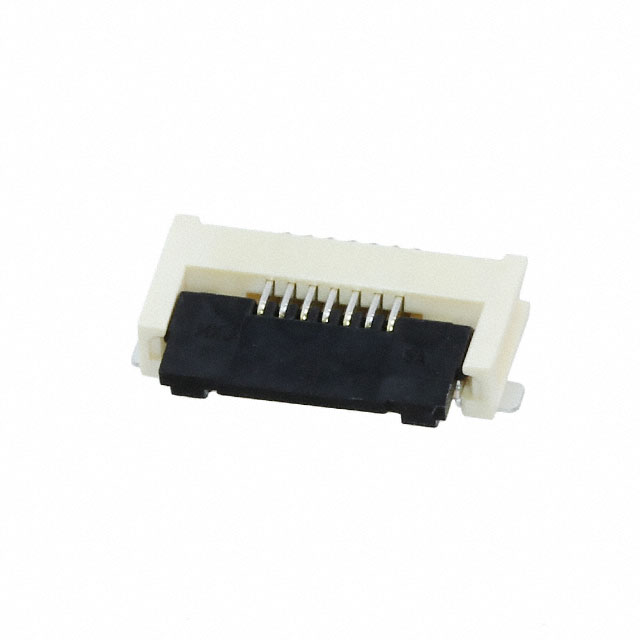

5051100692
Molex
5051100697
Molex

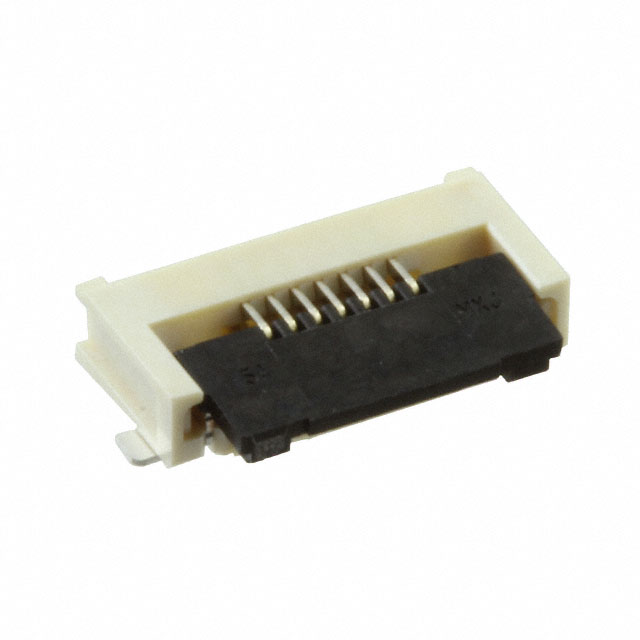

5051100792
Molex
5051100797
Molex

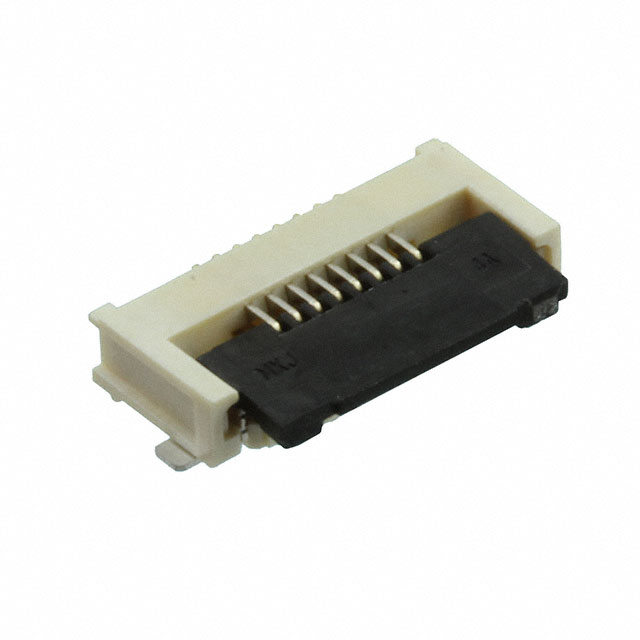

5051100892
Molex
5051100897
Molex

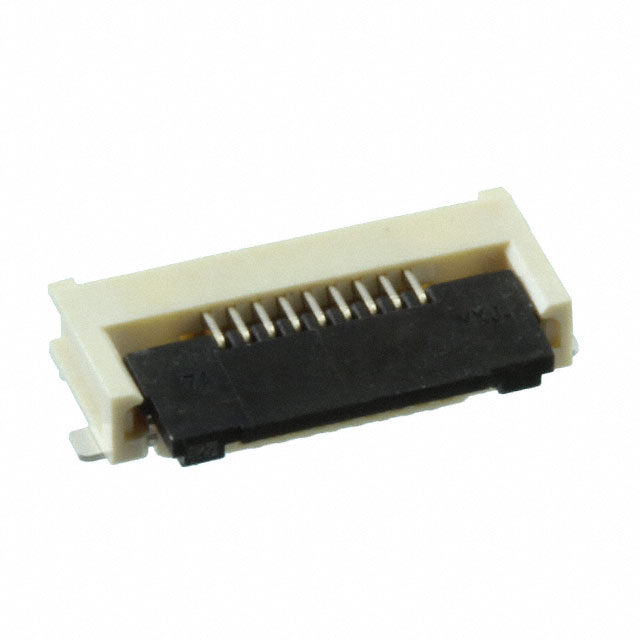

5051100992
Molex
5051100997
Molex
5051101092
Molex

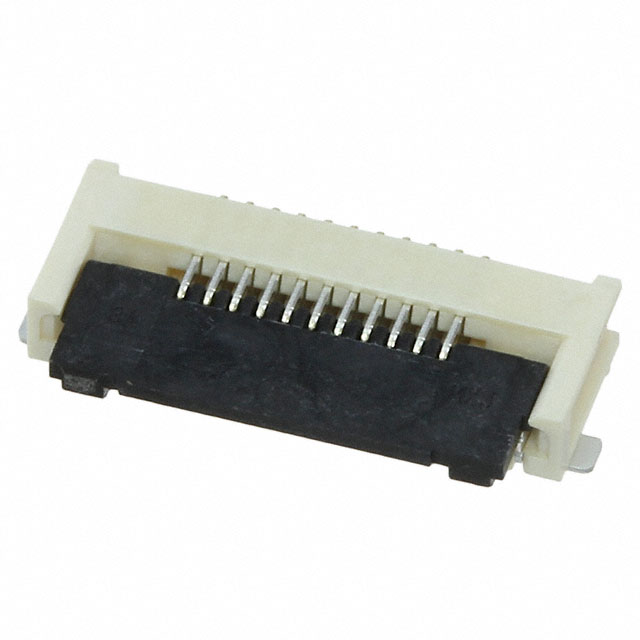

5051101192
Molex
5051101197
Molex

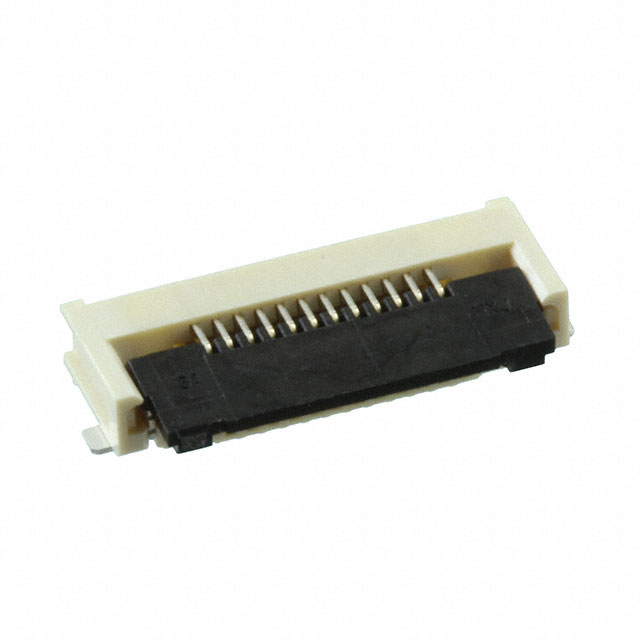

5051101292
Molex

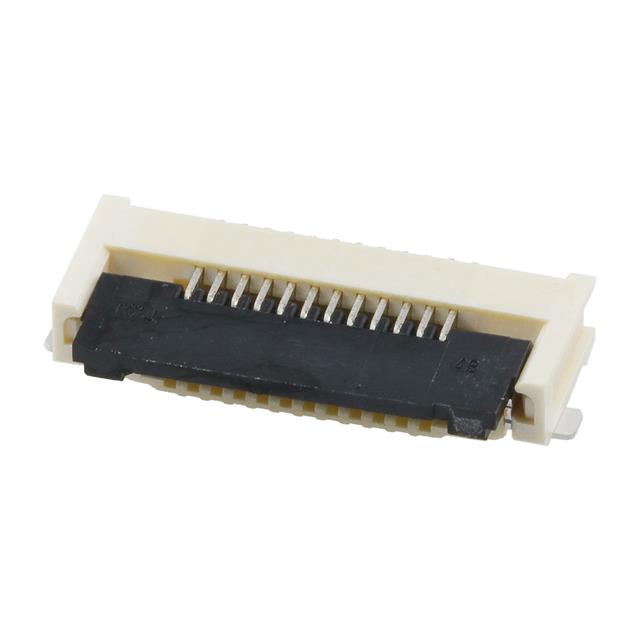

5051101297
Molex

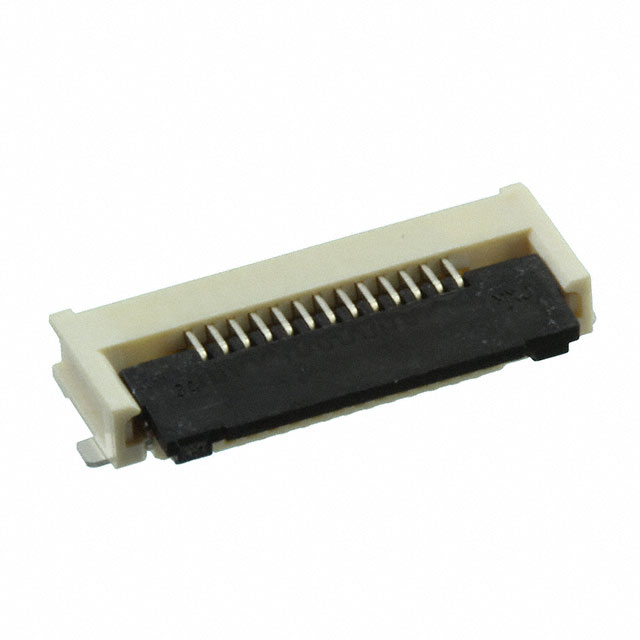

5051101392
