50SEK120M
lmages are for reference only.50SEK120M
CAP ALUM POLY 120UF 20% 50V TH
DatasheetRadial, Can
39,411 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 µF 50 V Aluminum - Polymer Capacitors Radial, Can 20mOhm 1000 Hrs @ 125°C
50SEK120M
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SEK |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 67.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.35 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | 50SEK |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 50SEK22M | 50SEK33M | 50SEK68M | 50SVF10M |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

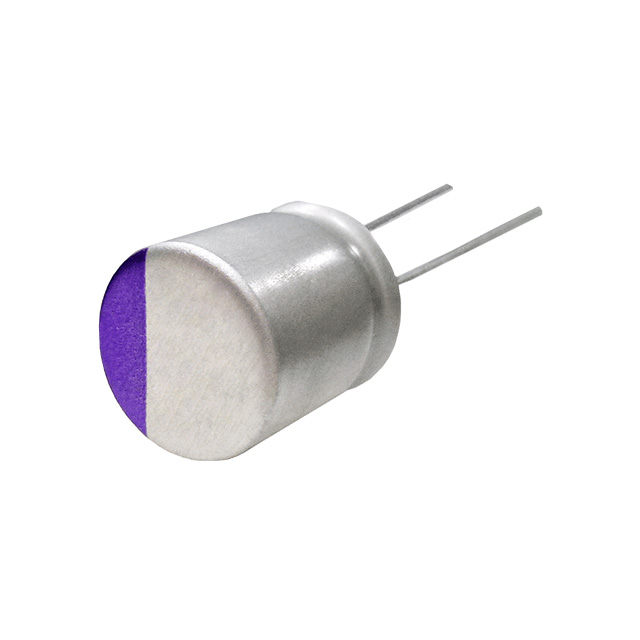

| Description | CAP ALUM POLY 22UF 20% 50V TH | CAP ALUM POLY 33UF 20% 50V TH | CAP ALUM POLY 68UF 20% 50V TH | CAP ALUM POLY 10UF 20% 50V SMD |
| Series | OS-CON™, SEK | OS-CON™, SEK | OS-CON™, SEK | OS-CON™, SVF |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
