510CAA14M7000CAGR

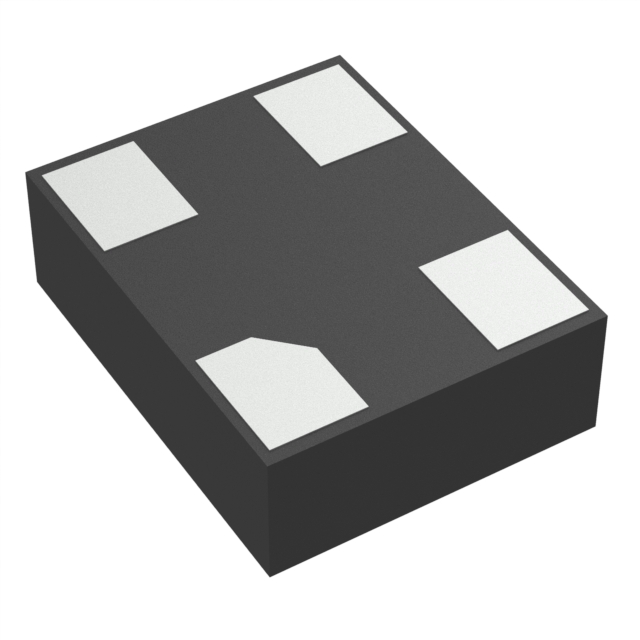

lmages are for reference only.510CAA14M7000CAGR
DIFFERENTIAL/SINGLE-ENDED; SINGL
Datasheet4-SMD, No Lead
24,941 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14.7 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
510CAA14M7000CAGR
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | Si510 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 14.7 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 26mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

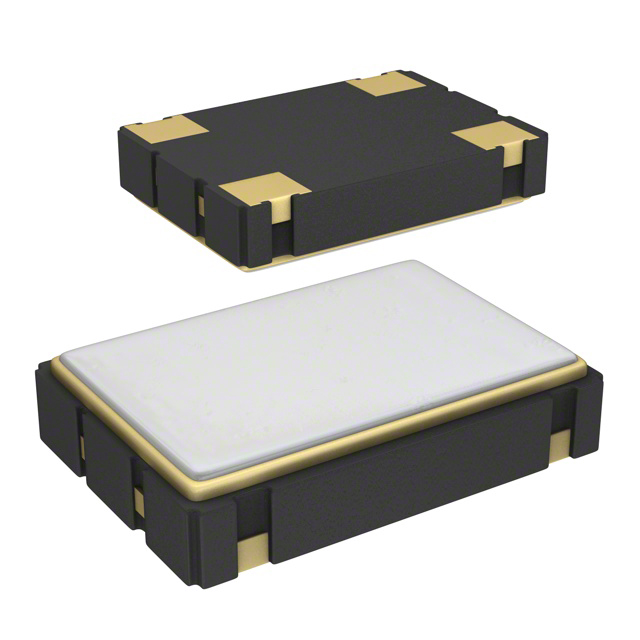

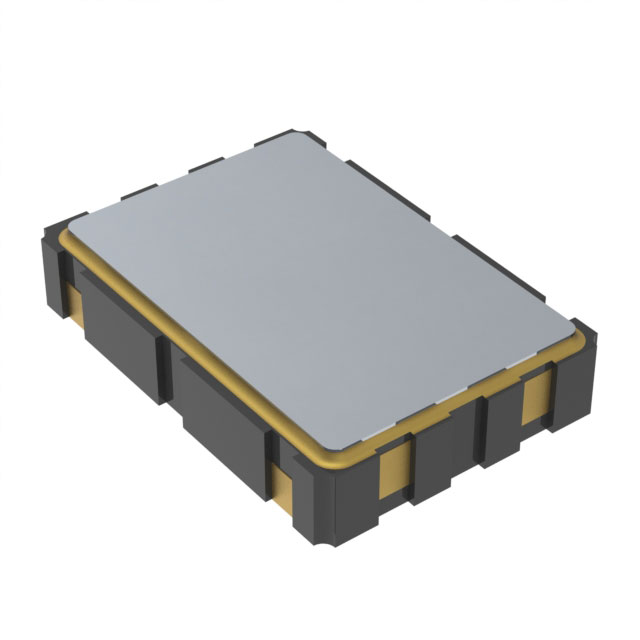

| Part Number | 510CAA14M7000CAG | 510CAA100M000AAG | 510CAA100M000AAGR | 510CAA100M000BAG |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ||||
| Description | DIFFERENTIAL/SINGLE-ENDED; SINGL | XTAL OSC XO 100.0000MHZ CMOS SMD | XTAL OSC XO 100.0000MHZ CMOS SMD | XTAL OSC XO 100.0000MHZ CMOS SMD |
| Series | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Packaging | Strip | Strip | Tape & Reel (TR) | Strip |
