510CAA90M0000BAGR
lmages are for reference only.510CAA90M0000BAGR
XTAL OSC XO 90.0000MHZ CMOS SMD
Datasheet4-SMD, No Lead
36,875 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
90 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
510CAA90M0000BAGR
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | Si510 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 90 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 26mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.050" (1.28mm) |
| Base Product Number | 510CAA |
| Product Attribute | |
|
 |
 |

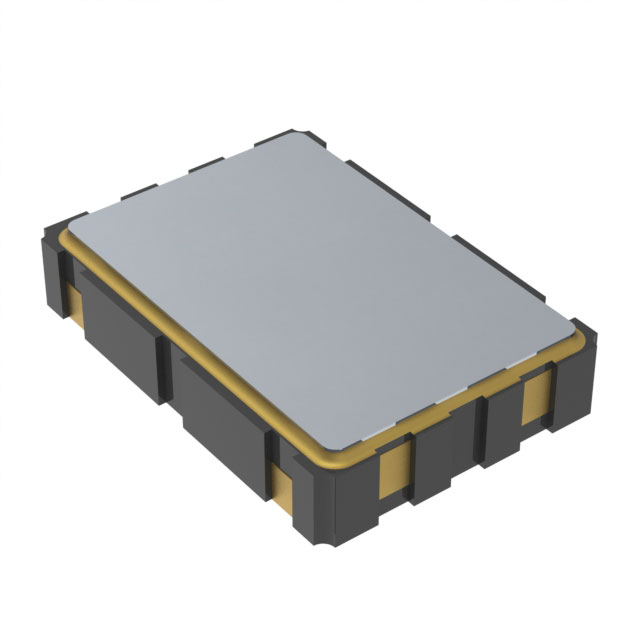

| Part Number | 510CAA90M0000BAG | 510CAA91M0000AAG | 510CAA91M0000AAGR | 510CAA91M0000CAG |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | XTAL OSC XO 90.0000MHZ CMOS SMD | XTAL OSC XO 91.0000MHZ CMOS SMD | XTAL OSC XO 91.0000MHZ CMOS SMD | DIFFERENTIAL/SINGLE-ENDED; SINGL |
| Series | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Packaging | Strip | Strip | Tape & Reel (TR) | Strip |
