Product CatalogPart Number
544BACC000199BBGR
Manufacturer
Skyworks Solutions Inc.Description
XTAL OSCILLATOR
Datasheet
DatasheetPackage
8-SMD, No Lead
In Stock
13,522 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
544BACC000199BBGR
544BACC000199BBGR
lmages are for reference only.Payment Methods
Delivery Services
40 MHz XO (Standard) LVDS Oscillator 1.8V, 2.5V, 3.3V Enable/Disable (Reprogrammable) 8-SMD, No Lead
Quick Inquiry
544BACC000199BBGR
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | Ultra™ Si544 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 40 MHz |
| Function | Enable/Disable (Reprogrammable) |
| Output | LVDS |
| Voltage - Supply | 1.8V, 2.5V, 3.3V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 111mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.052" (1.33mm) |
| Base Product Number | 544BAC |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | 544BACC000199BBG | 544BACC000199BCG | 544BACC000199BCGR | 544BACC000112ABG |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | XTAL OSCILLATOR | OSCILLATOR SMD | OSCILLATOR SMD | XTAL OSCILLATOR |
| Series | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Packaging | Strip | Strip | Strip | Strip |
Customers Also Interested in
Recommended Products
544BAAA000112BCG
Skyworks Solutions Inc.
544BAAA000112BCGR
Skyworks Solutions Inc.
544BAAA000115CCG
Skyworks Solutions Inc.
544BAAA000115CCGR
Skyworks Solutions Inc.
544BAAA000137BBG
Skyworks Solutions Inc.
544BAAA000137BBGR
Skyworks Solutions Inc.

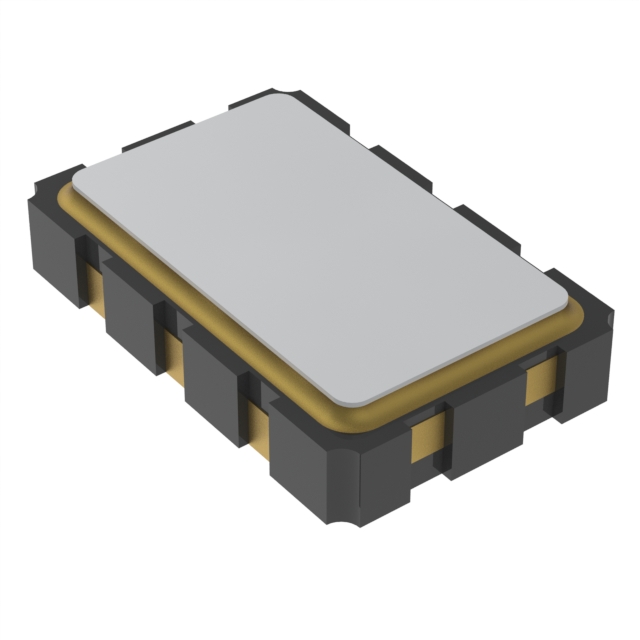

544BAAA001741BBG
