54H22DM

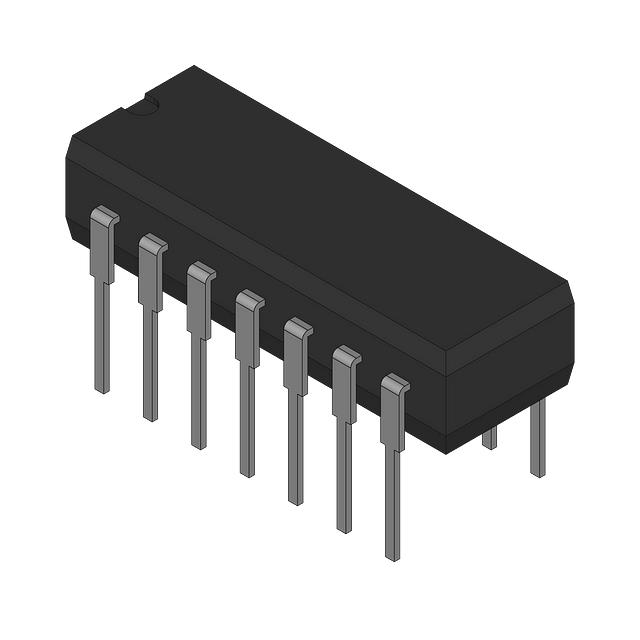

lmages are for reference only.54H22DM
IC GATE NAND 2CH 4-INP 14CDIP
Datasheet14-CDIP (0.300", 7.62mm)
18,411 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
NAND Gate IC 2 Channel Open Collector 14-CDIP
54H22DM
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | National Semiconductor |
| Series | 54H |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Base Product Number | 54H22 |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | Open Collector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 20 mA |
| Current - Output High, Low | - |
| Input Logic Level - Low | - |
| Input Logic Level - High | - |
| Max Propagation Delay @ V, Max CL | - |
| Operating Temperature | -55＜C ~ 125＜C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-CDIP |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 54H22/BCA | 54ACTQ04E-QMLV | 54LS13/BCA | 54ACTQ04W-QMLV |
| Manufacturer | Rochester Electronics, LLC | National Semiconductor | Rochester Electronics, LLC | National Semiconductor |
| RoHS Status | Not applicable | Not applicable | ||
| Description | IC DUAL | IC INVERTER 6CH 1-INP 20LCCC | IC DUAL | IC INVERTER 6CH 1-INP 14CFP |
| Series | * | 54ACTQ | * | 54ACTQ |
| Packaging | Bulk | Bulk | Bulk | Bulk |
