550C542T500DN2B
lmages are for reference only.550C542T500DN2B
CAP ALUM 5400UF 500V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
42,382 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5400 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 26.1mOhm 10000 Hrs @ 105°C
550C542T500DN2B
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 550C |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 5400 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 26.1mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 34.48 A @ 10 kHz |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 7.625" (193.68mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
 |

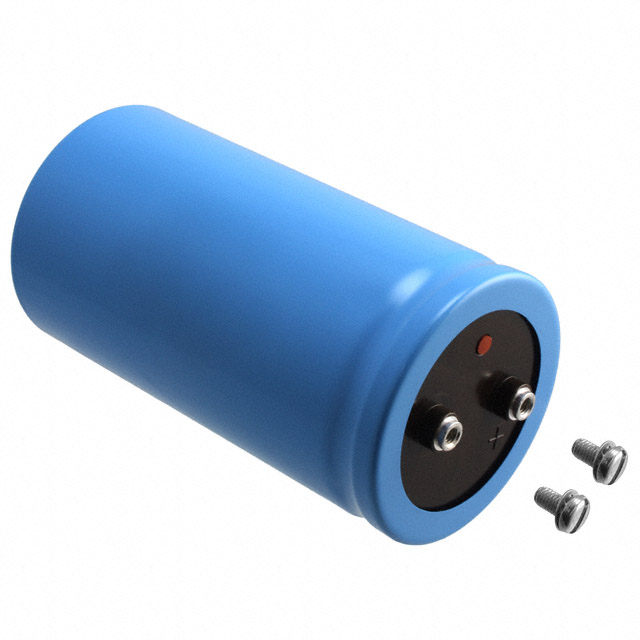

| Part Number | 550C502T450FF2D | 550C542T500DN2B | 550C562T400DP2B | 25YXM100MEFR6.3X11 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 5000UF 450V SCREW CHAS | CAP ALUM 5400UF 500V SCREW CHAS | CAP ALUM 5600UF 400V SCREW CHAS | CAP ALUM 100UF 20% 25V RADIAL TH |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Rubycon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
