598BCC000115DG

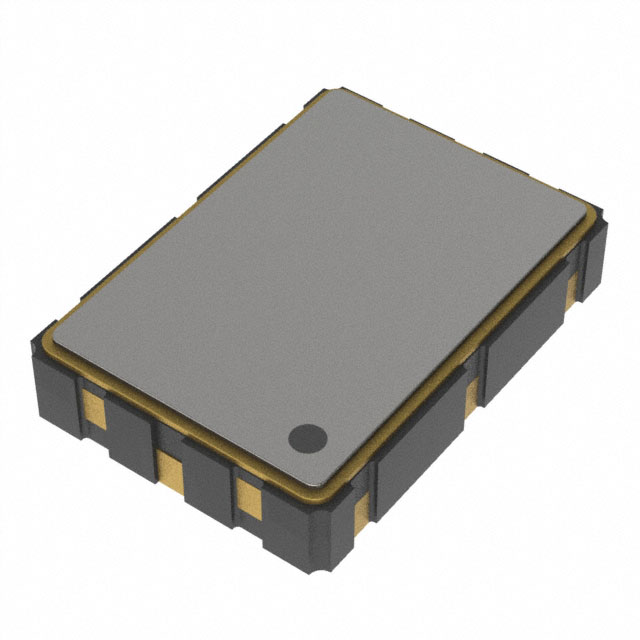

lmages are for reference only.598BCC000115DG
XTAL OSC XO 125.0000MHZ LVDS SMD
Datasheet8-SMD, No Lead
81,276 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
125 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable (Reprogrammable) 8-SMD, No Lead
598BCC000115DG
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Skyworks Solutions Inc. |
| Series | Si598 |
| Packaging | Strip |
| RoHS Status | |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 125 MHz |
| Function | Enable/Disable (Reprogrammable) |
| Output | LVDS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 110mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | - |
| Base Product Number | 598BCC |
| Product Attribute |  |
|
|
|
| Part Number | 598BCC000115DGR | 598BCC000112DG | 598BCC000112DGR | 598BCC000118DG |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| RoHS Status | ||||
| Description | XTAL OSC XO 125.0000MHZ LVDS SMD | XTAL OSC XO 10.0000MHZ LVDS SMD | XTAL OSC XO 10.0000MHZ LVDS SMD | XTAL OSC XO 156.2500MHZ LVDS SMD |
| Series | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Packaging | Tape & Reel (TR) | Strip | Tape & Reel (TR) | Strip |
