Product CatalogPart Number
66226-004LF
Manufacturer
Amphenol ICC (FCI)Description
CONN FFC HEADER 4POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
83,181 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

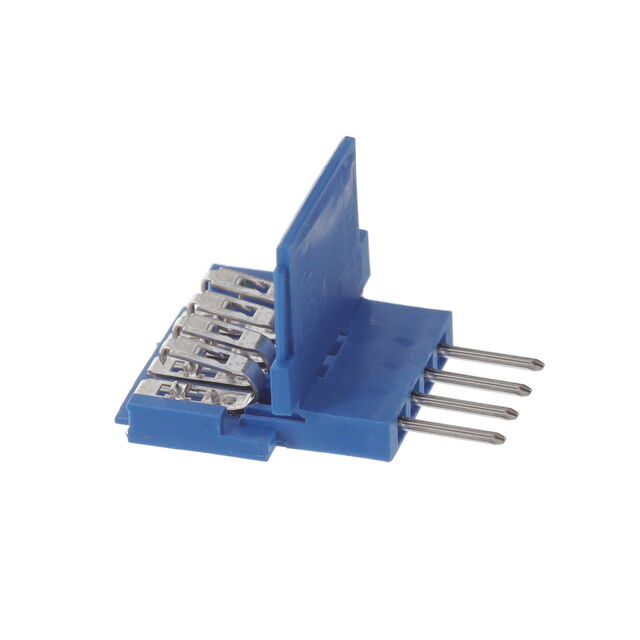

66226-004LF
66226-004LF
lmages are for reference only.Payment Methods
Delivery Services
4 Position FFC Connector Header 0.100" (2.54mm) Free Hanging (In-Line)
Quick Inquiry
66226-004LF
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Amphenol ICC (FCI) |
| Series | Clincher™ |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FFC |
| Mounting Type | Free Hanging (In-Line) |
| Connector/Contact Type | Header |
| Number of Positions | 4 |
| Pitch | 0.100" (2.54mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | - |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Tapered |
| Contact Material | Copper Nickel Alloy |
| Contact Finish | Tin |
| Housing Material | Thermoplastic |
| Actuator Material | - |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 500V |
| Operating Temperature | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Housing Color | Blue |
| Actuator Color | Black |
| Mating Cycles | 100 |
| Base Product Number | 66226 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 66226-002 | 66226-002LF | 66226-003 | 66226-003LF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS non-compliant | RoHS Compliant |
| Description | CLINCHER PIN ASSEMBLY-TI-N | CONN FFC HEADER 2POS 2.54MM | CLINCHER PIN ASSEMBLY-TI-N | CONN FFC HEADER 3POS 2.54MM |
| Series | Clincher™ | Clincher™ | Clincher™ | Clincher™ |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
66226-002
Amphenol ICC (FCI)

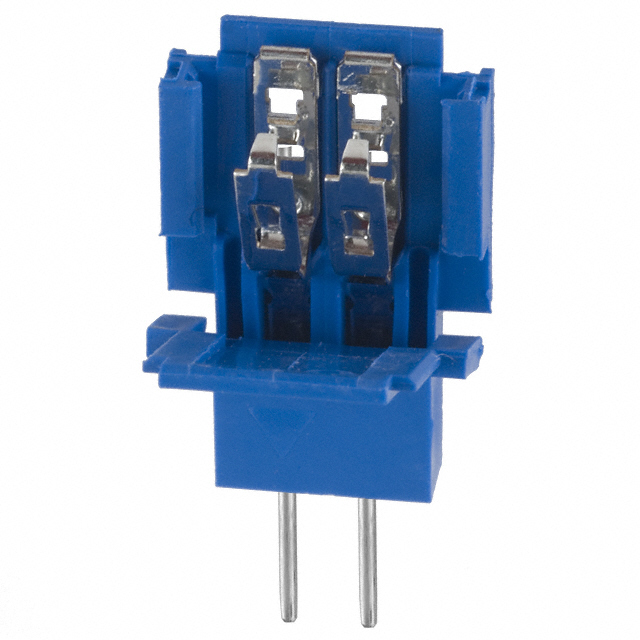

66226-002LF
Amphenol ICC (FCI)
66226-003
Amphenol ICC (FCI)

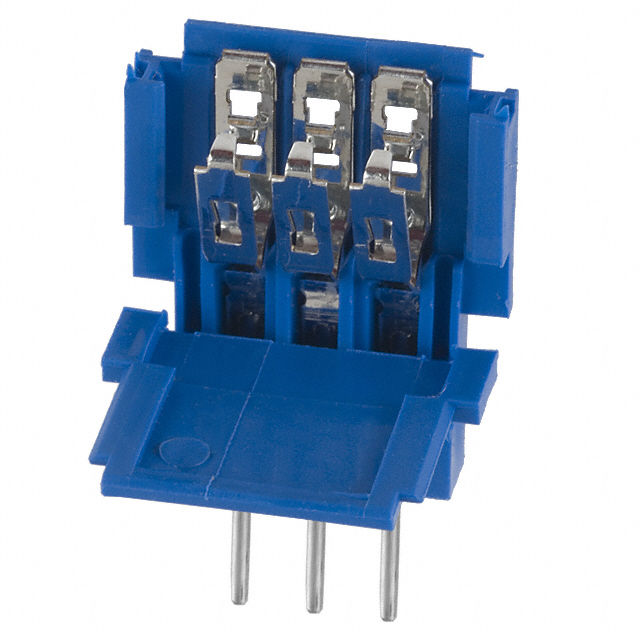

66226-003LF
Amphenol ICC (FCI)
66226-004
Amphenol ICC (FCI)
66226-005
Amphenol ICC (FCI)

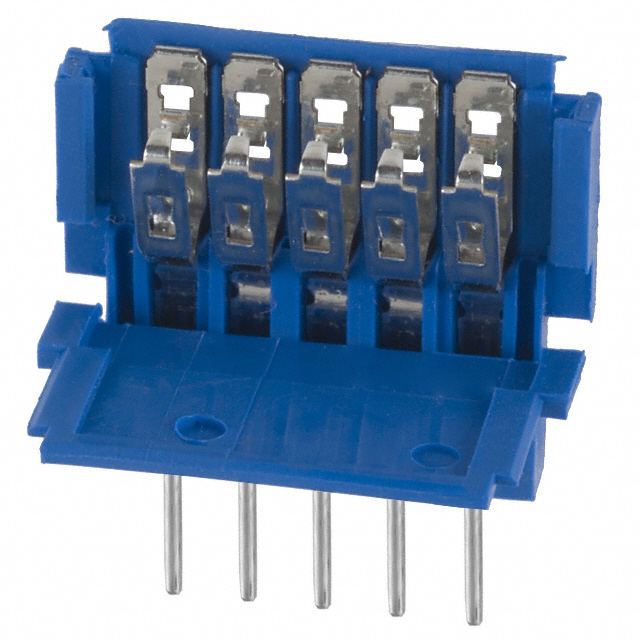

66226-005LF
Amphenol ICC (FCI)
66226-006
Amphenol ICC (FCI)

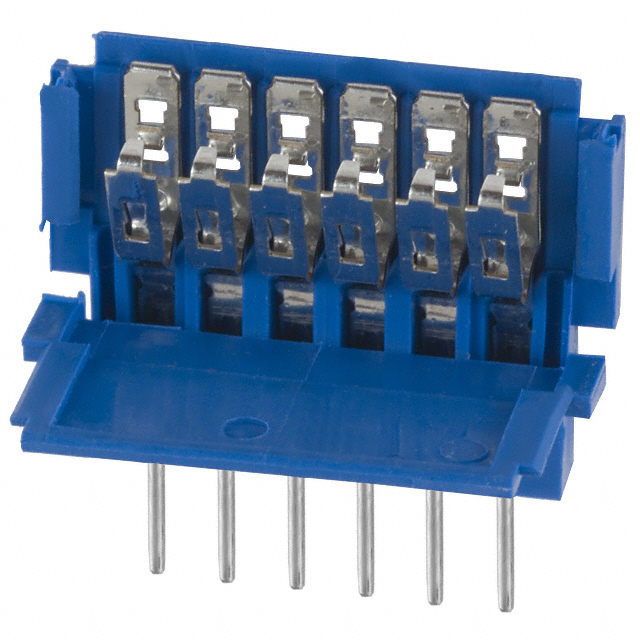

66226-006LF
Amphenol ICC (FCI)

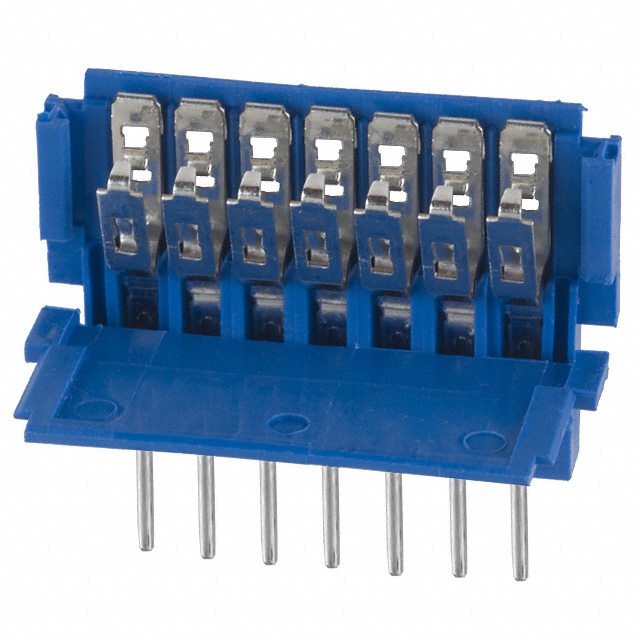

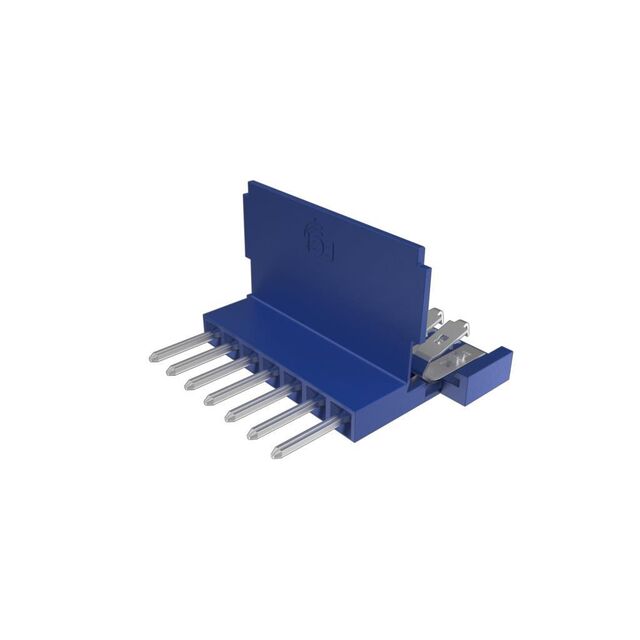

66226-007
Amphenol ICC (FCI)
66226-007LF
Amphenol ICC (FCI)

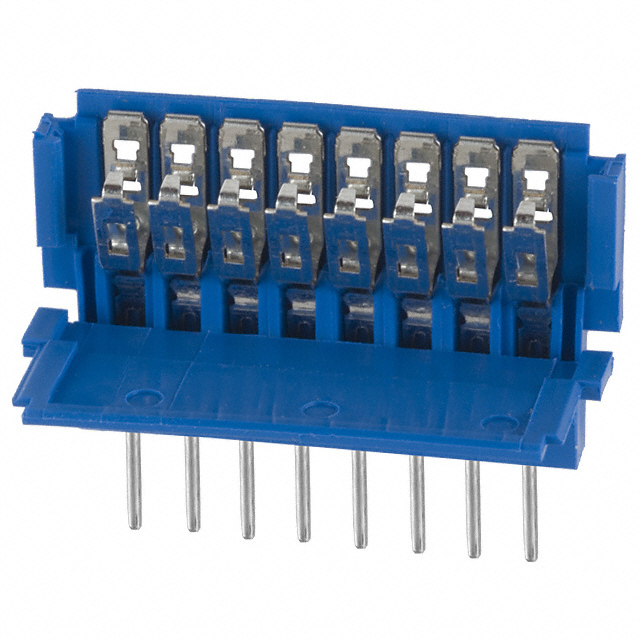

66226-008
Amphenol ICC (FCI)
66226-008LF
Amphenol ICC (FCI)

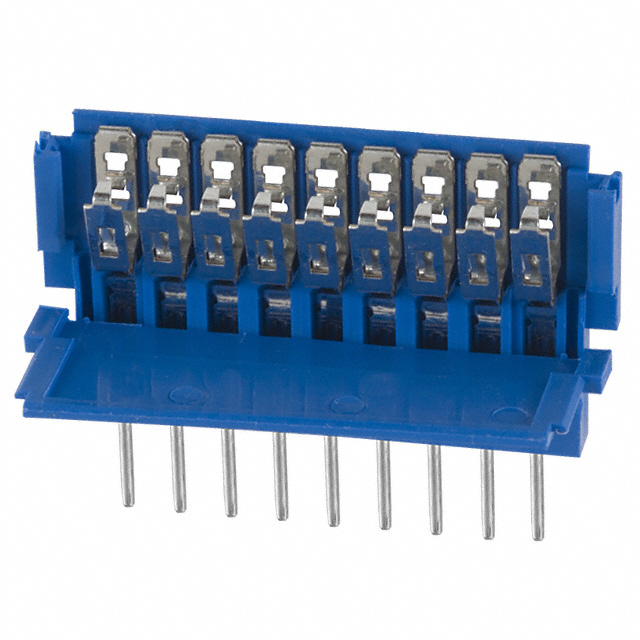

66226-009
Amphenol ICC (FCI)

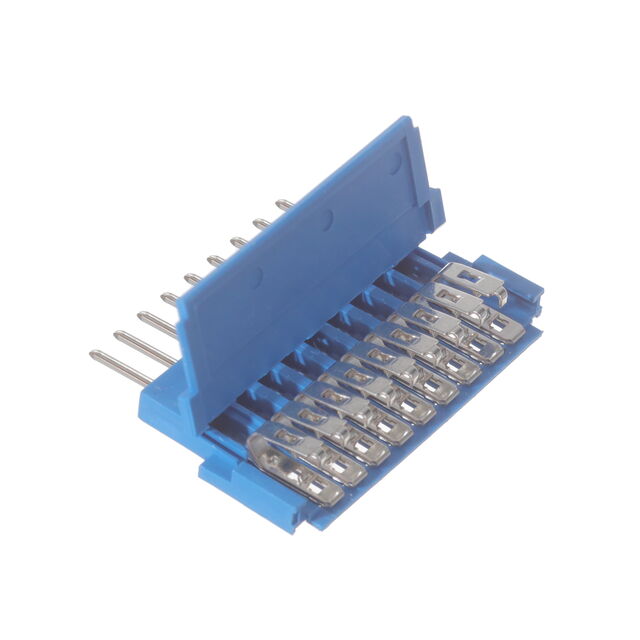

66226-009LF
Amphenol ICC (FCI)
66226-010
Amphenol ICC (FCI)

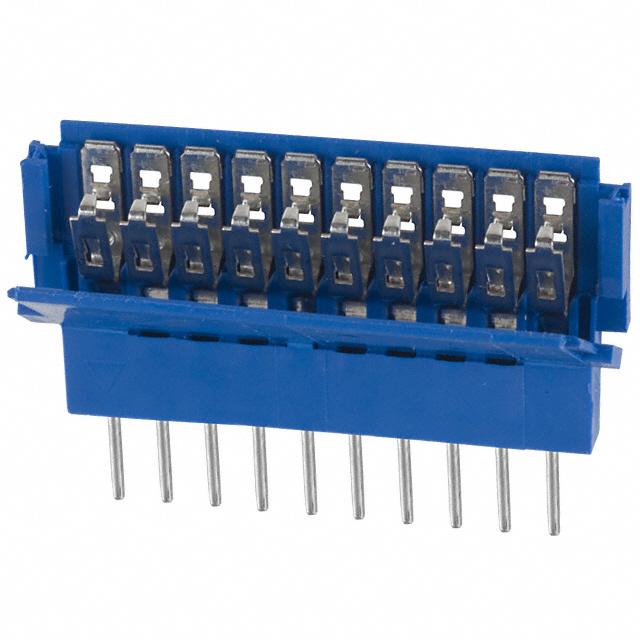

66226-010LF
Amphenol ICC (FCI)

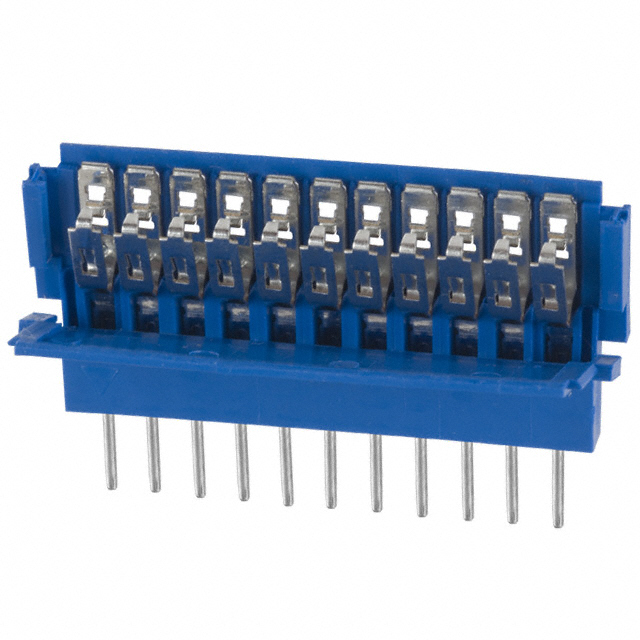

66226-011
