Product CatalogPart Number
68692-205
Manufacturer
Amphenol ICC (FCI)Description
BERGSTIK# II HEADERS
Datasheet
DatasheetPackage
-
In Stock
47,020 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
68692-205
68692-205
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 5 position 0.100" (2.54mm)
Quick Inquiry
68692-205
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (FCI) |
| Series | BERGSTIK® II |
| Packaging | Bag |
| RoHS Status | |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 5 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.100" (2.54mm) |
| Overall Contact Length | 0.430" (10.92mm) |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | - |
| Features | - |
| Operating Temperature | -65°C ~ 130°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | 68692 |
Parts with Similar Specifications
| Product Attribute | |
|
|
 |
| Part Number | 68692-205HLF | 68692-206H | 68692-208HLF | 68692-032HLF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS Compliant | |||
| Description | BERGSTIK# II HEADERS | BERGSTIK UNSHROUDED HEADER | BERGSTIK II .100CC DR ST-RAIGHT | CONN HEADER VERT 32POS 2.54MM |
| Series | BERGSTIK® II | BERGSTIK® II | BERGSTIK® II | BERGSTIK® II |
| Packaging | Bag | Bag | Bag | Bag |
Customers Also Interested in
Recommended Products
68692-032HLF
Amphenol ICC (FCI)
68692-102HLF
Amphenol ICC (FCI)

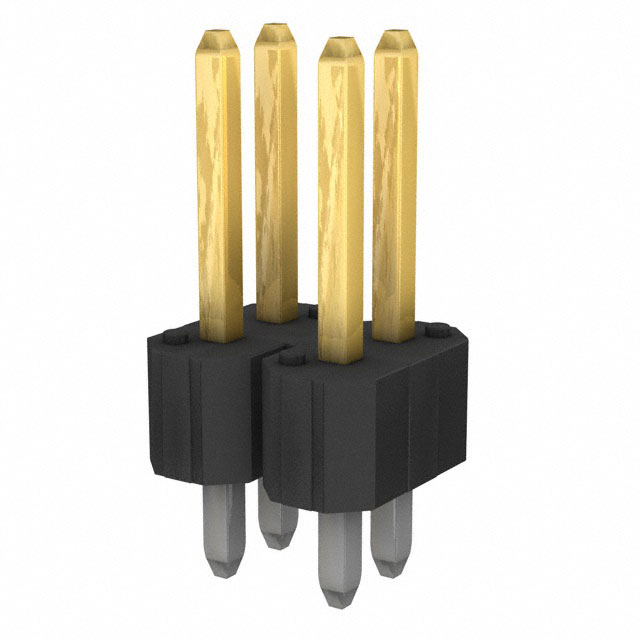

68692-104HLF
Amphenol ICC (FCI)
68692-106HLF
Amphenol ICC (FCI)

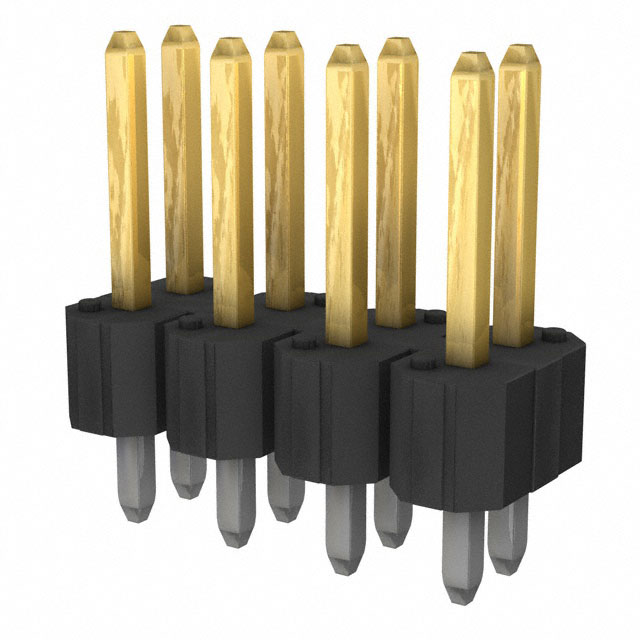

68692-108HLF
Amphenol ICC (FCI)

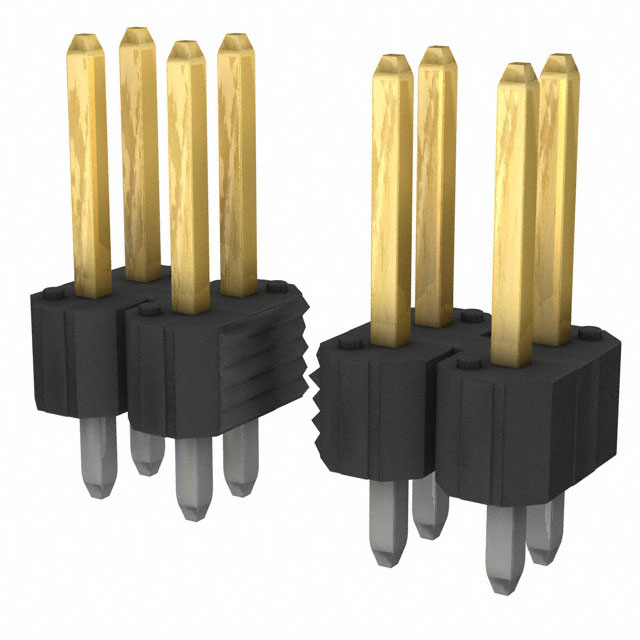

68692-112H
