687AXZ016M

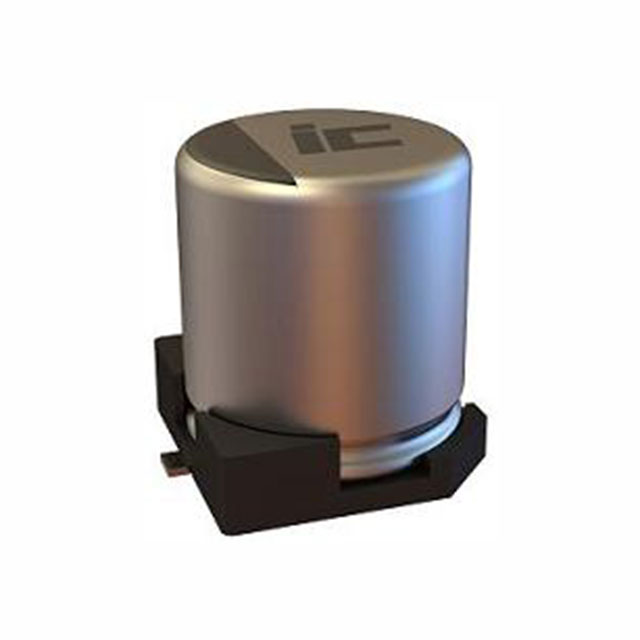

lmages are for reference only.687AXZ016M
CAP ALUM 680UF 20% 16V SMD
DatasheetRadial, Can - SMD
11,541 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 488mOhm @ 120Hz 2000 Hrs @ 105°C
687AXZ016M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | AXZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 488mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.417" (10.60mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Impedance | 90 mOhms |
| Product Attribute |  |
 |
 |
 |
| Part Number | 687AXZ6R3MD8 | 25YXM100MEFR6.3X11 | 16PX100MEFCTA5X11 | ECA-0JM101I |
| Manufacturer | Cornell Dubilier Knowles | Rubycon | Rubycon | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 680UF 20% 6.3V SMD | CAP ALUM 100UF 20% 25V RADIAL TH | CAP ALUM 100UF 20% 16V RADIAL TH | CAP ALUM 100UF 20% 6.3V RADIAL |
| Series | Cornell Dubilier Knowles | Rubycon | Rubycon | Panasonic Electronic Components |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
