6N136-020E
lmages are for reference only.6N136-020E
OPTOISO 5KV TRANS W/BASE 8DIP
Datasheet8-DIP (0.300", 7.62mm)
72,236 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

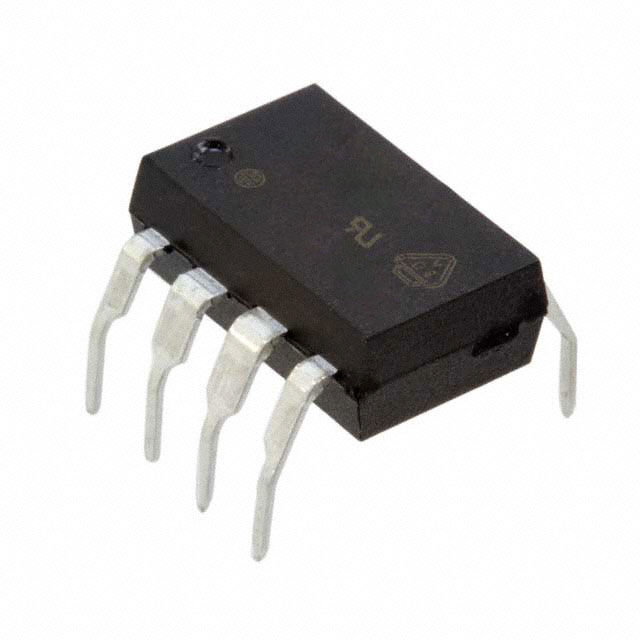

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 8-DIP
6N136-020E
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 19% @ 16mA |
| Current Transfer Ratio (Max) | 50% @ 16mA |
| Turn On / Turn Off Time (Typ) | 200ns, 600ns |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 8mA |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 25 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Base Product Number | 6N136 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | 6N136-000E | 6N136-060E | 6N135 | 6N135 |
| Manufacturer | Broadcom Limited | Broadcom Limited | onsemi | QT Brightek (QTB) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | OPTOISO 3.75KV TRANS W/BASE 8DIP | OPTOISO 3.75KV TRANS W/BASE 8DIP | OPTOISO 2.5KV TRANS W/BASE 8DIP | 8 PIN 1 MBITS HIGH SPEED PHOTOTR |
| Series | - | - | - | Optocoupler |
| Packaging | Tube | Tube | Tube | Tube |
