6N137SMT&R
lmages are for reference only.6N137SMT&R

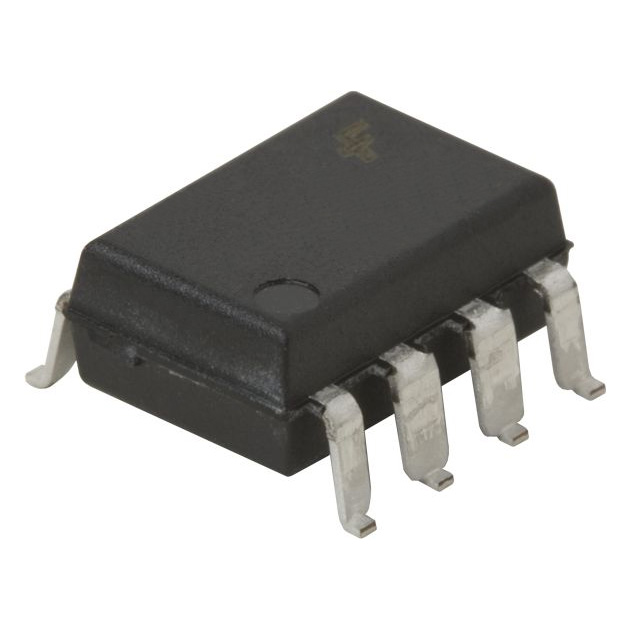

OPTOISO 5KV 1CH OPEN COLL 8SMD
Datasheet8-SMD, Gull Wing
56,918 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 1 Channel 5kV/µs CMTI 8-SMD
6N137SMT&R
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 5kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 40ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 7V |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|
| Part Number | 6N137SMT&R | 6N137SM | 6N137SM | 6N137SM |
| Manufacturer | Isocom Components 2004 LTD | Isocom Components 2004 LTD | onsemi | Isocom Components 2004 LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 5KV 1CH OPEN COLL 8SMD | 8PIN LOGIC OUTPUT, HIGH SPEED OP | OPTOISO 5KV 1CH OPEN COLL 8SMD | 8PIN LOGIC OUTPUT, HIGH SPEED OP |
| Series | - | 6N137 | - | 6N137 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tube |
