7010X1
lmages are for reference only.7010X1
LED RED CLEAR 1206 SMD
Datasheet1206 (3016 Metric)
78,911 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red LED Indication - Discrete 1.7V 1206 (3016 Metric)
7010X1
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | 7010X |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 6mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.80mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 660nm |
| Features | - |
| Package / Case | 1206 (3016 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Height (Max) | 1.50mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

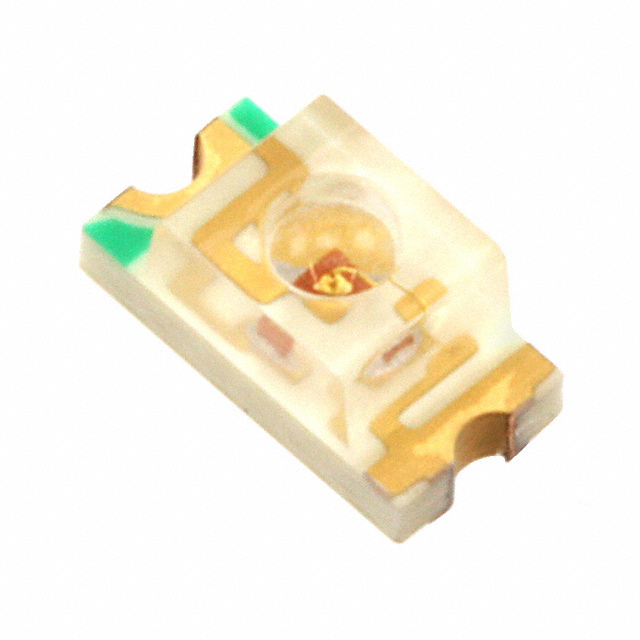

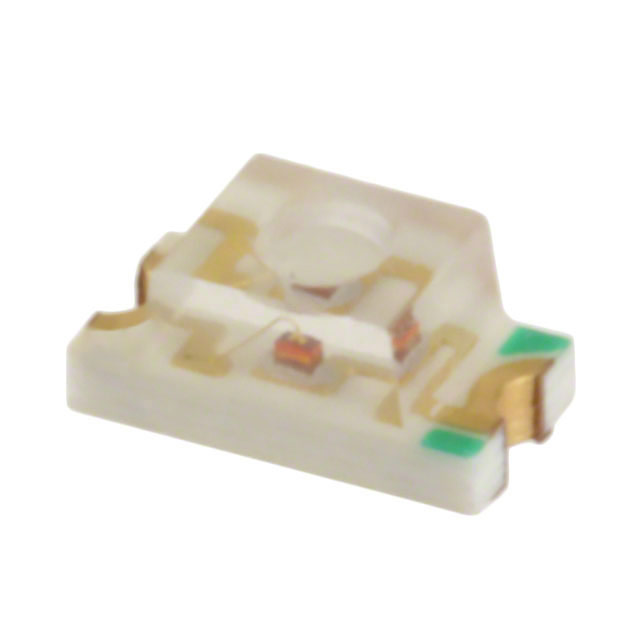

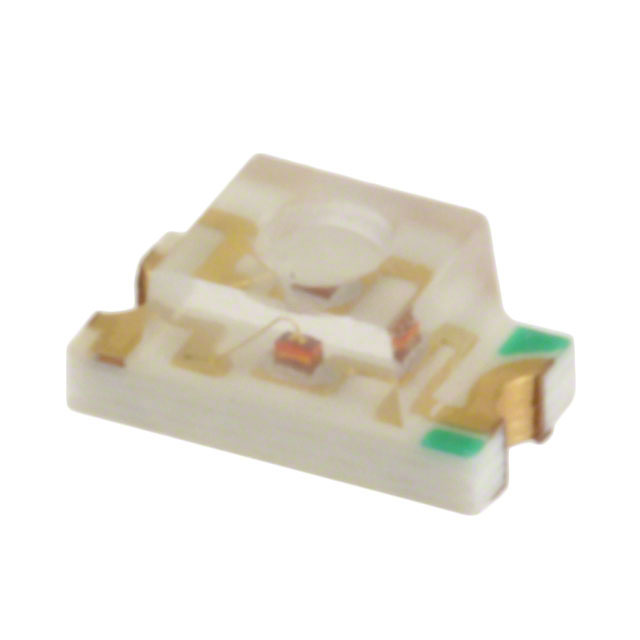

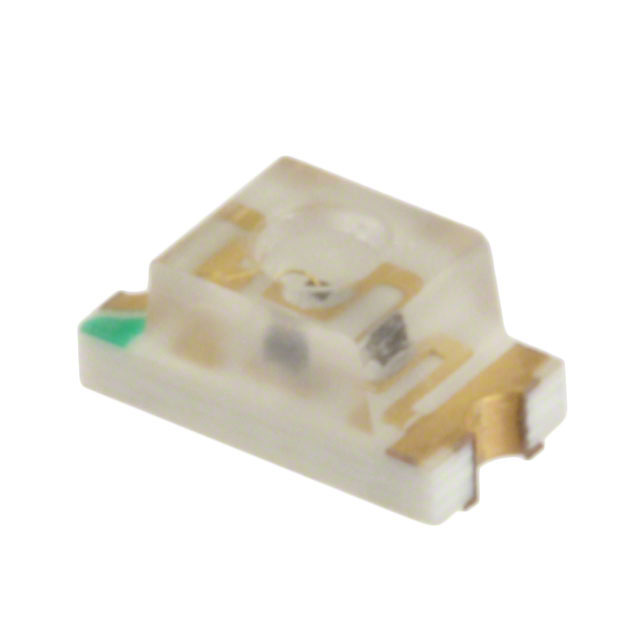

| Part Number | 7010X11 | 7010X3 | 7010X5 | 7010X5-A |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED CLEAR 1206 SMD | LED ORANGE CLEAR 1206 SMD | LED GREEN CLEAR 1206 SMD | LED YLW-GRN CLEAR 1206 SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
