7017X13
lmages are for reference only.7017X13
LED YELLOW DIFFUSED 0603 SMD
Datasheet0603 (1608 Metric)
52,269 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Yellow LED Indication - Discrete 2.2V 0603 (1608 Metric)
7017X13
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | 7017X |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 3.4mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.09mm x 0.79mm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 580nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.71mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

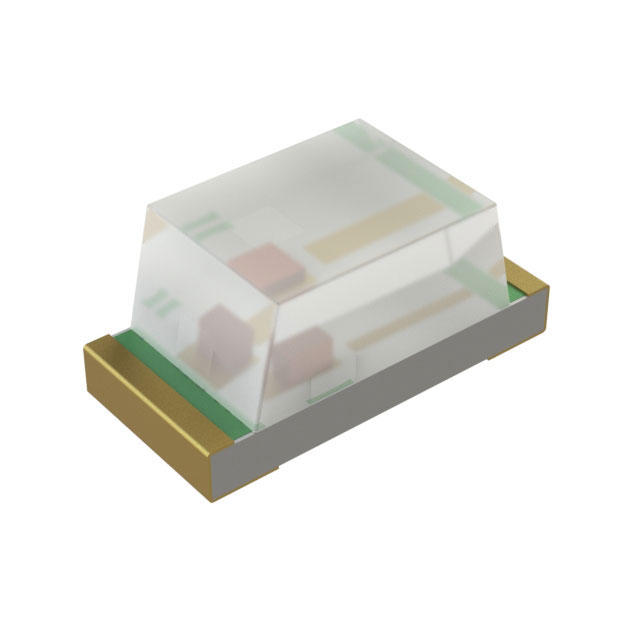

| Part Number | 7017X1 | 7017X15 | 7017X21 | 7017X3 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED DIFFUSED 0603 SMD | LED GREEN DIFFUSED 0603 SMD | LED RED DIFFUSED 0603 SMD | LED ORANGE DIFFUSED 0603 SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
