Product CatalogPart Number
72454-040
Manufacturer
Amphenol ICC (FCI)Description
CONN HEADER SMD 40POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
99,281 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
72454-040
72454-040
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount 40 position 0.100" (2.54mm)
Quick Inquiry
72454-040
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (FCI) |
| Series | Quickie™ |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.365" (9.27mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | - |
| Features | Keying Slot, Pick and Place |
| Operating Temperature | -65°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Applications | - |
| Base Product Number | 72454 |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | 72454-040LF | 72454-040VLF | 72454-041VLF | 72454-008 |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS non-compliant | |
| Description | CONN HEADER SMD 40POS 2.54MM | CONN BERGSTIK II/S | QKE HDR 2X20, SMT | CONN HEADER SMD 8POS 2.54MM |
| Series | Quickie™ | Quickie™ | Quickie™ | Quickie™ |
| Packaging | Tray | Tape & Reel (TR) | Tape & Reel (TR) | Tray |
Customers Also Interested in
Recommended Products
72454-008
Amphenol ICC (FCI)
72454-010
Amphenol ICC (FCI)

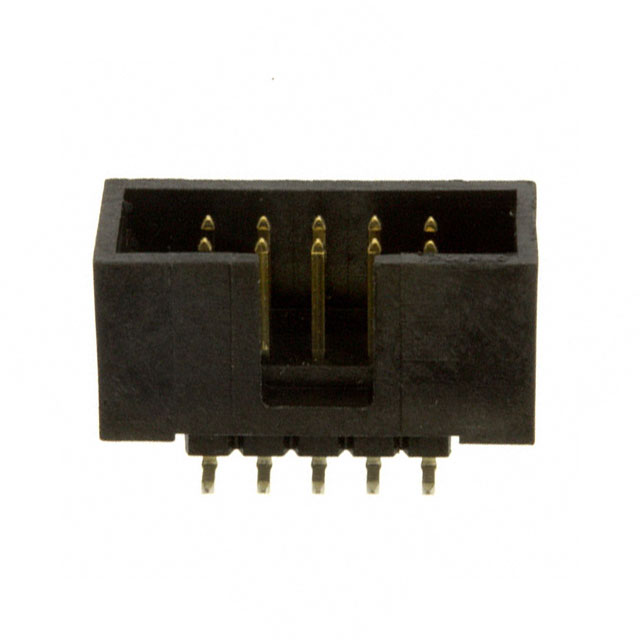

72454-010LF
Amphenol ICC (FCI)
72454-010V
Amphenol ICC (FCI)

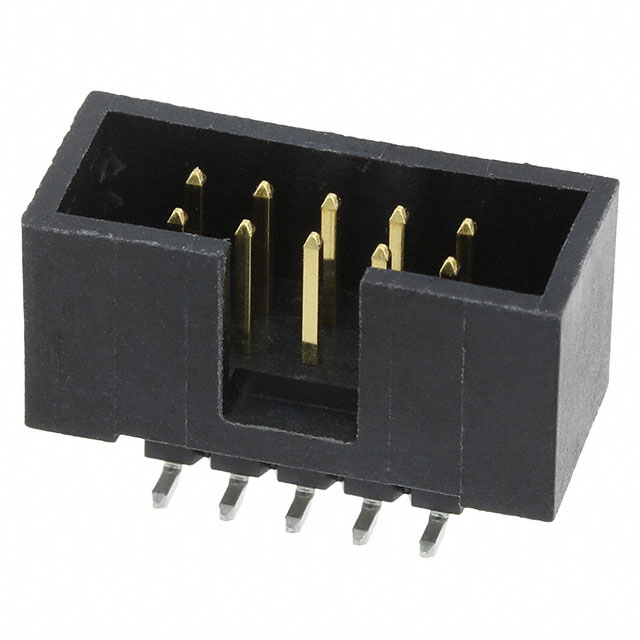

72454-010VLF
Amphenol ICC (FCI)
72454-014
Amphenol ICC (FCI)

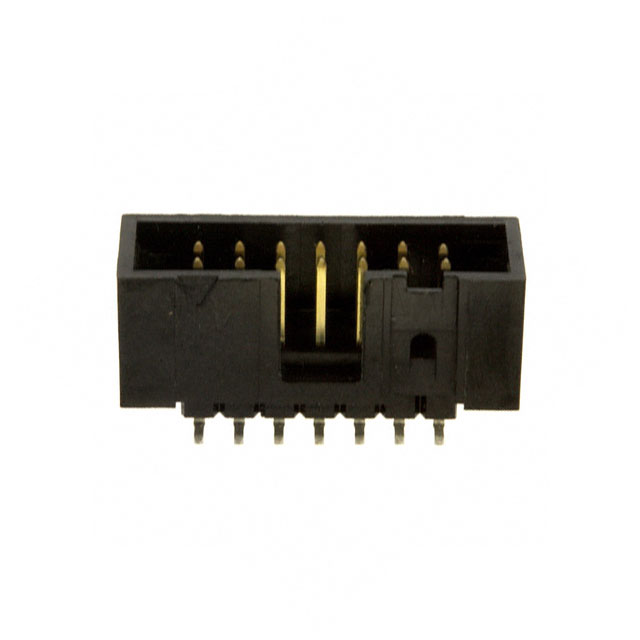

72454-014LF
Amphenol ICC (FCI)

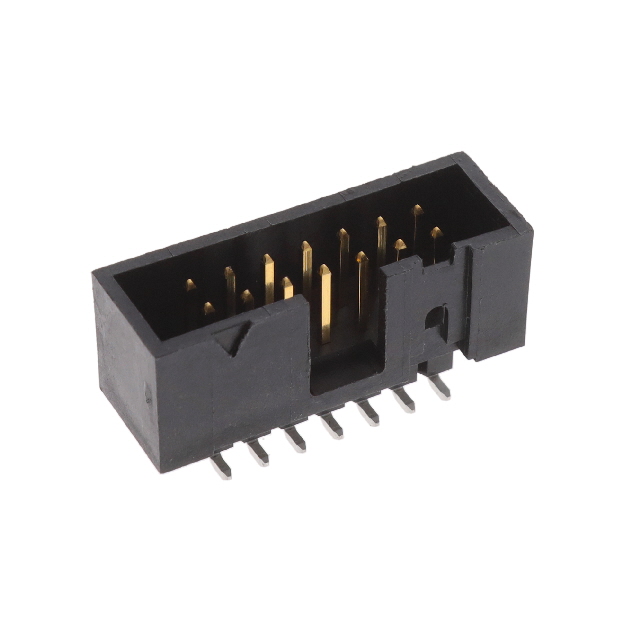

72454-014VLF
Amphenol ICC (FCI)
72454-016
Amphenol ICC (FCI)

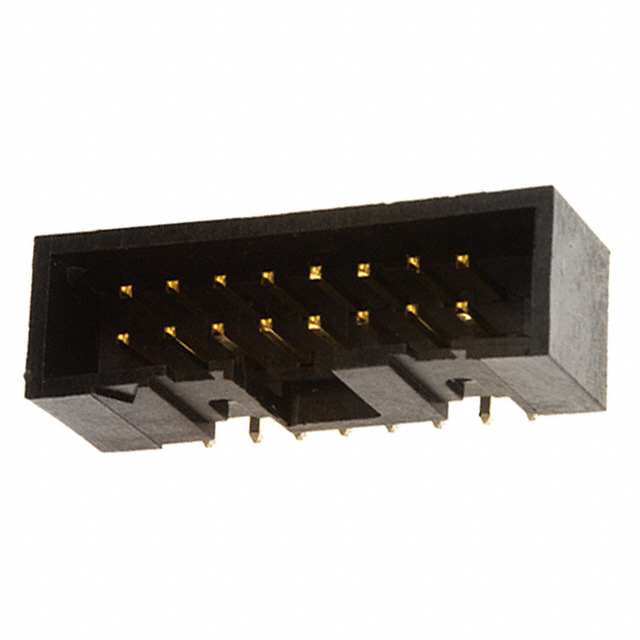

72454-016LF
Amphenol ICC (FCI)

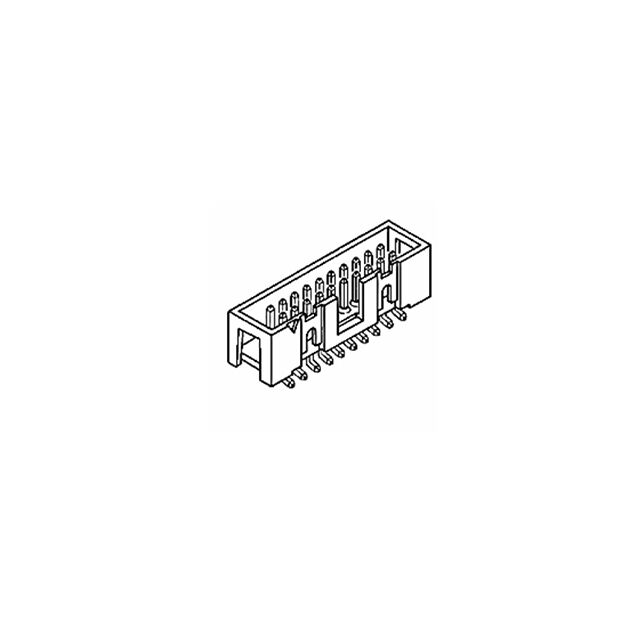

72454-016V
Amphenol ICC (FCI)

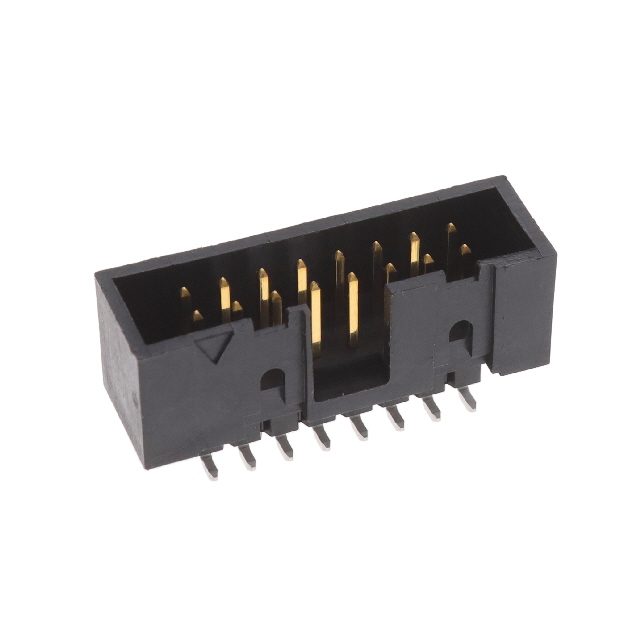

72454-016VLF
Amphenol ICC (FCI)
72454-020
Amphenol ICC (FCI)
72454-020BLF
Amphenol ICC (FCI)

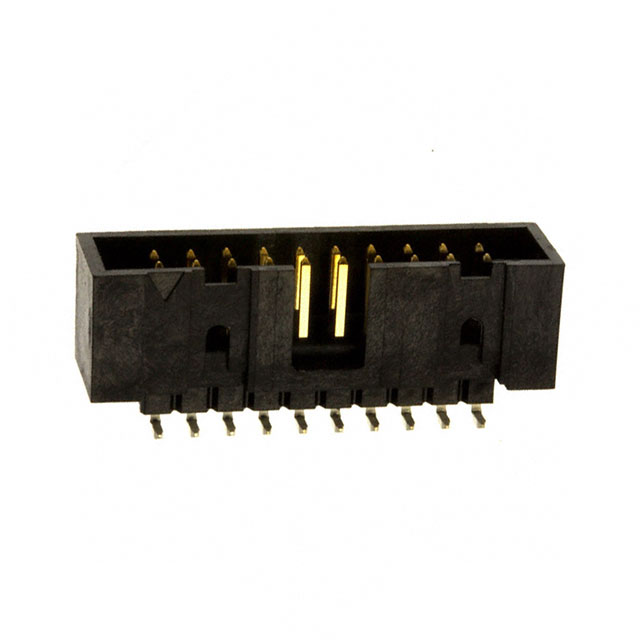

72454-020LF
Amphenol ICC (FCI)
72454-020V
Amphenol ICC (FCI)

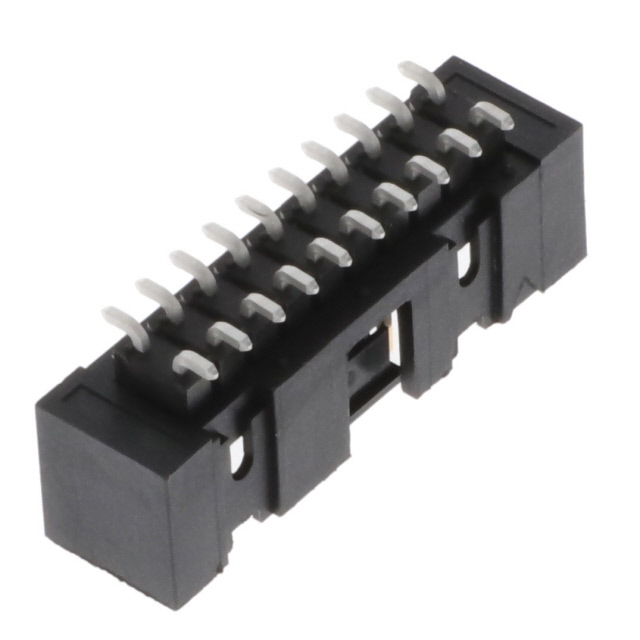

72454-020VLF
