740X043224JP
lmages are for reference only.740X043224JP
RES ARRAY 2 RES 220K OHM 0302
Datasheet0302 (0805 Metric), Convex, Long Side Terminals
60,990 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220k Ohm ±5% 31mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0302 (0805 Metric), Convex, Long Side Terminals
740X043224JP
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | CTS Resistor Products |
| Series | 740 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Isolated |
| Resistance (Ohms) | 220k |
| Tolerance | ±5% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 4 |
| Power Per Element | 31mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Applications | DDR SDRAM, DRAM, MDDR |
| Mounting Type | Surface Mount |
| Package / Case | 0302 (0805 Metric), Convex, Long Side Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.031" L x 0.024" W (0.80mm x 0.60mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Base Product Number | 740X043 |
| Product Attribute | |
 |
 |
 |
| Part Number | 740X043000XP | 740X043100JP | 740X043101JP | 740X043102JP |
| Manufacturer | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

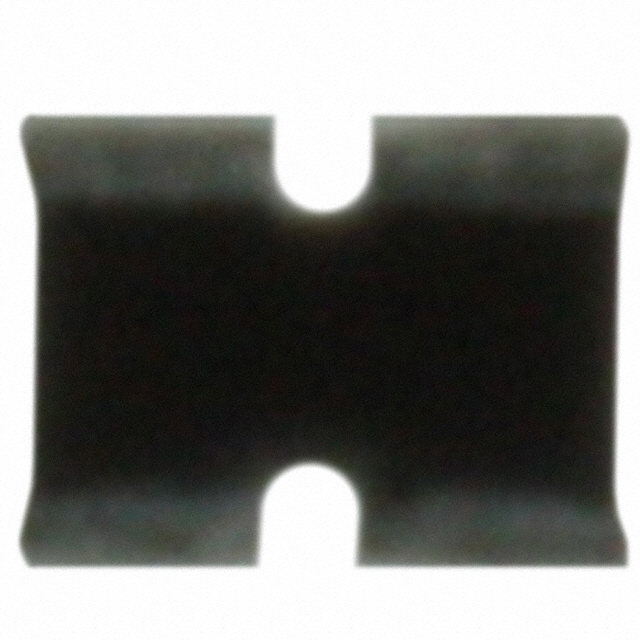

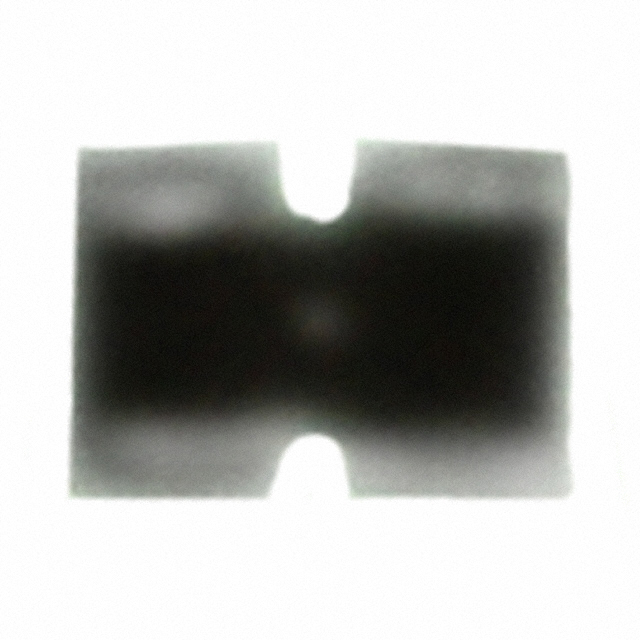

| Description | RES ARRAY 2 RES ZERO OHM 0302 | RES ARRAY 2 RES 10 OHM 0302 | RES ARRAY 2 RES 100 OHM 0302 | RES ARRAY 2 RES 1K OHM 0302 |
| Series | 740 | 740 | 740 | 740 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
