743C083222GP
lmages are for reference only.743C083222GP
RES ARRAY 4 RES 2.2K OHM 2008
Datasheet2008, Concave, Long Side Terminals
44,846 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2k Ohm ±2% 100mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 2008, Concave, Long Side Terminals
743C083222GP
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | CTS Resistor Products |
| Series | 743 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Isolated |
| Resistance (Ohms) | 2.2k |
| Tolerance | ±2% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 2008, Concave, Long Side Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.200" L x 0.079" W (5.08mm x 2.00mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

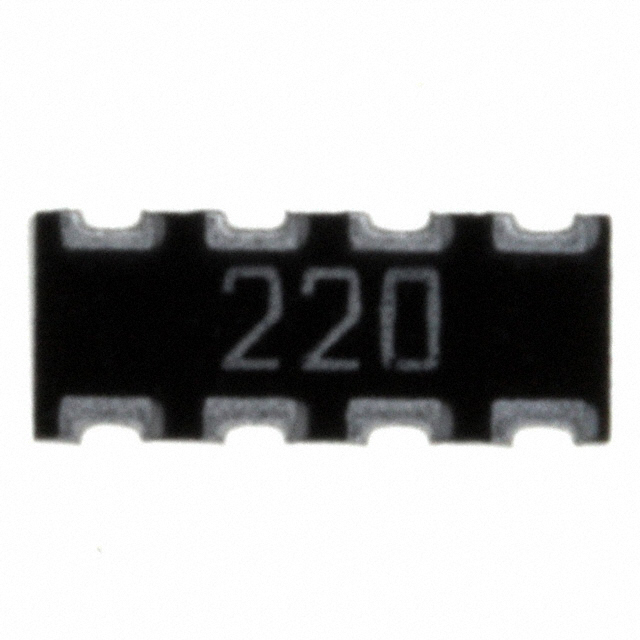

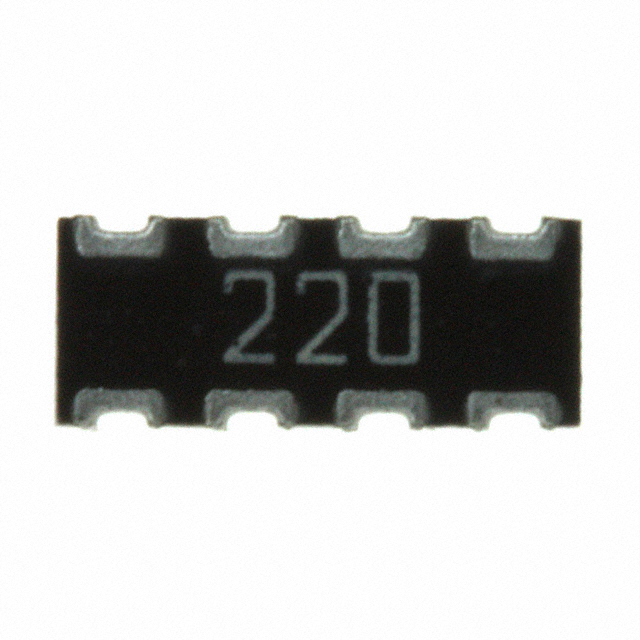

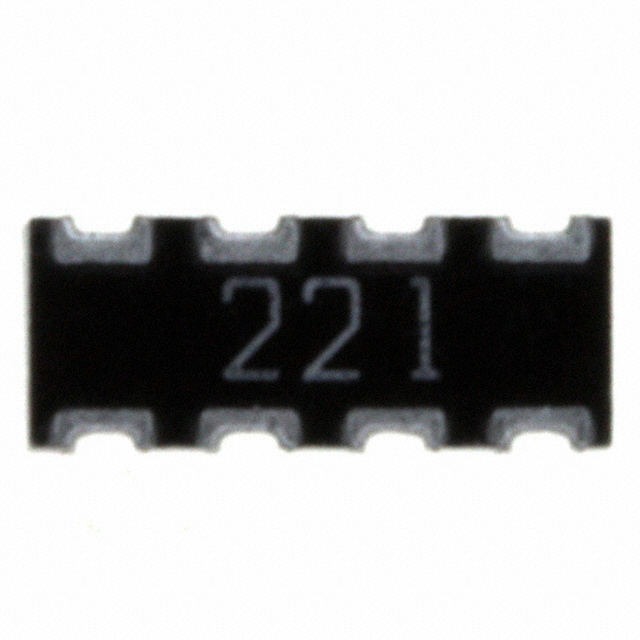

| Part Number | 743C0832203FP | 743C083220JP | 743C083220JTR | 743C083221JP |
| Manufacturer | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES ARRAY 4 RES 2008 | RES ARRAY 4 RES 22 OHM 2008 | RES ARRAY 4 RES 22 OHM 2008 | RES ARRAY 4 RES 220 OHM 2008 |
| Series | * | 743 | 743 | 743 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
