7447649168
lmages are for reference only.7447649168
FIXED IND 68UH 225MA 8.45OHM SMD
Datasheet1210 (3225 Metric)
65,235 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68 µH Unshielded Drum Core, Wirewound Inductor 225 mA 8.45Ohm Max 1210 (3225 Metric)
7447649168
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-GFH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 225 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.45Ohm Max |
| Q @ Freq | 40 @ 2.52MHz |
| Frequency - Self Resonant | 12MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 3225 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | 7447649015 | 744764902 | 744764903 | 744764904 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

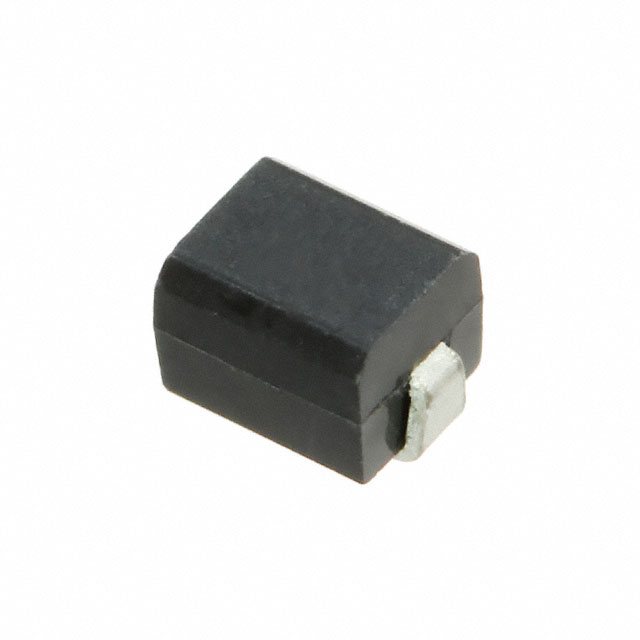

| Description | FIXED IND 1.5UH 1.4A 195MOHM SMD | FIXED IND 2.2UH 1.1A 260MOHM SMD | FIXED IND 3.3UH 1.05A 325MOHM SM | FIXED IND 4.7UH 800MA 520MOHM SM |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
