74AUP1G32GW/DG,125
lmages are for reference only.74AUP1G32GW/DG,125
IC GATE OR 1CH 2-INP 5TSSOP
Datasheet5-TSSOP, SC-70-5, SOT-353
76,100 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
OR Gate IC 1 Channel 5-TSSOP
74AUP1G32GW/DG,125
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | NXP USA Inc. |
| Series | 74AUP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74AUP1G32 |
| Logic Type | OR Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA |
| Current - Output High, Low | 4mA, 4mA |
| Input Logic Level - Low | 0.7V ~ 0.9V |
| Input Logic Level - High | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | 6.4ns @ 3.3V, 30pF |
| Operating Temperature | -40＜C ~ 125＜C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-TSSOP |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

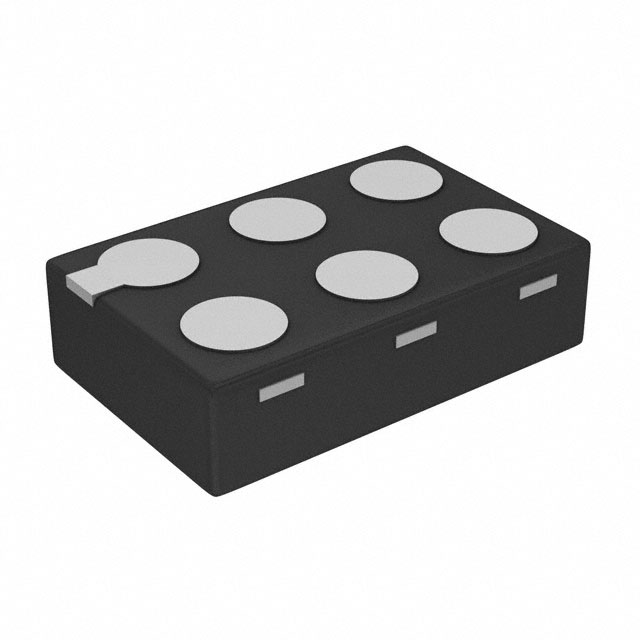

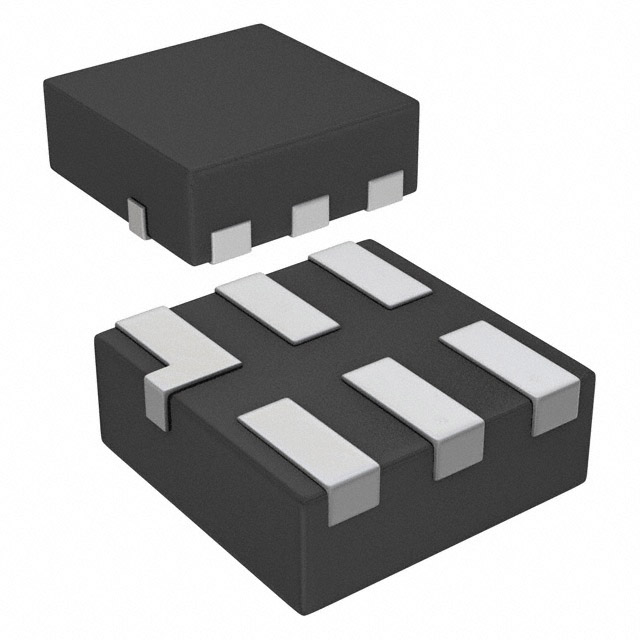

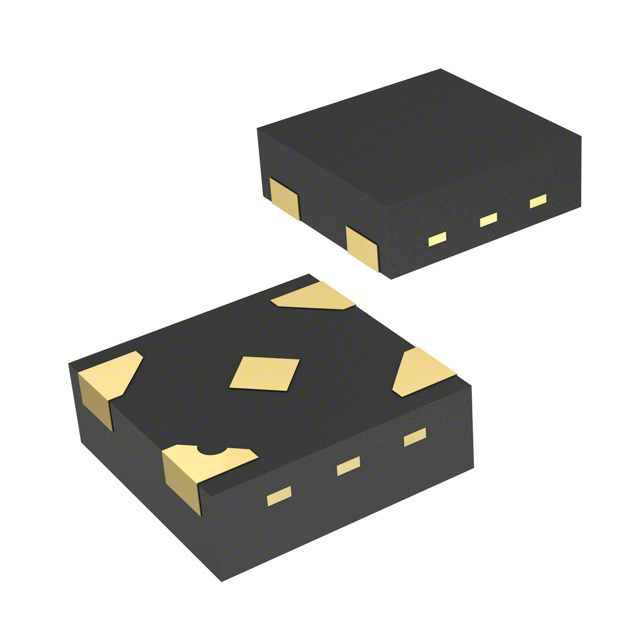

| Part Number | 74AUP1G32FS3-7 | 74AUP1G32FW4-7 | 74AUP1G32FW5-7 | 74AUP1G32FX4-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE OR 1CH 2-INP DFN0808-4 | IC GATE OR 1CH 2-INP DFN1010-6 | IC GATE OR 1CH 2-INP DFN1010-6 | IC GATE OR 1CH 2-INP DFN1409-6 |
| Series | 74AUP | 74AUP | 74AUP | 74AUP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
