74AUP2G86DC,125
lmages are for reference only.74AUP2G86DC,125
IC GATE XOR 2CH 2-INP 8VSSOP
Datasheet8-VFSOP (0.091", 2.30mm Width)
55,439 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
XOR (Exclusive OR) IC 2 Channel 8-VSSOP
74AUP2G86DC,125
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Nexperia USA Inc. |
| Series | 74AUP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74AUP2G86 |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA |
| Current - Output High, Low | 4mA, 4mA |
| Input Logic Level - Low | 0.7V ~ 0.9V |
| Input Logic Level - High | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | 7.1ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSSOP |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

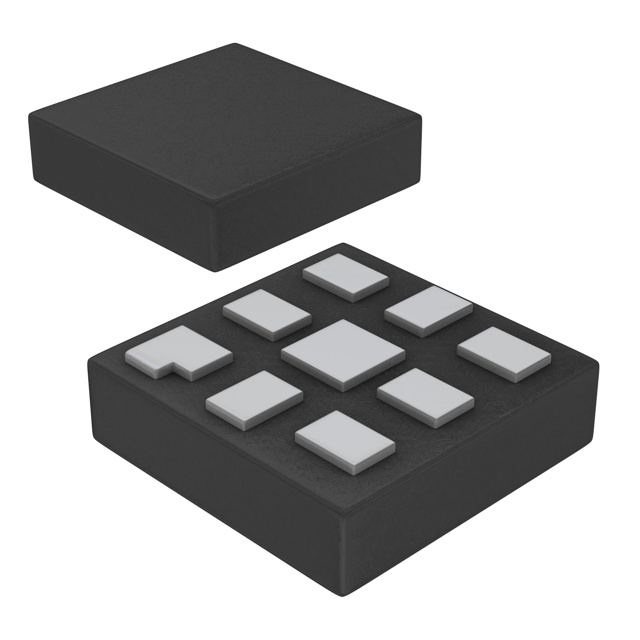

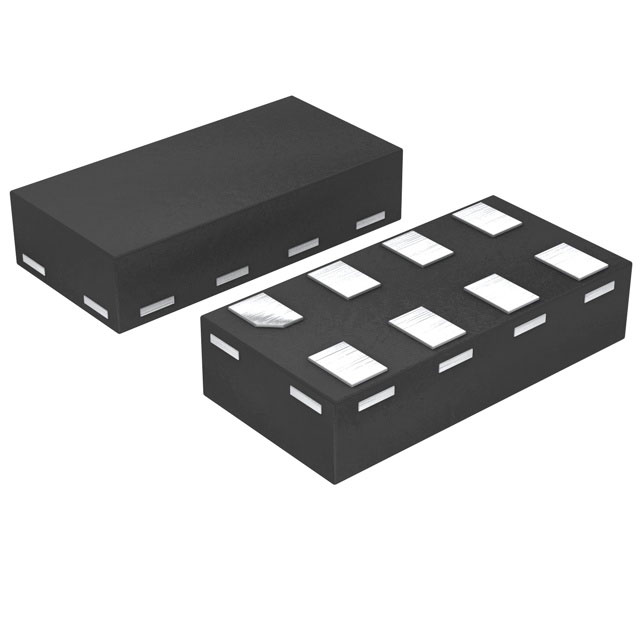

| Part Number | 74AUP2G86GD,125 | 74AUP2G86GD,125 | 74AUP2G86GF,115 | 74AUP2G86GM,125 |
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE XOR 2CH 2-INP 8-XSON | IC GATE XOR 2CH 2-INP 8XSON | IC GATE XOR 2CH 2-INP 8XSON | IC GATE XOR 2CH 2-INP 8XQFN |
| Series | 74AUP | 74AUP | 74AUP | 74AUP |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
