Product CatalogPart Number

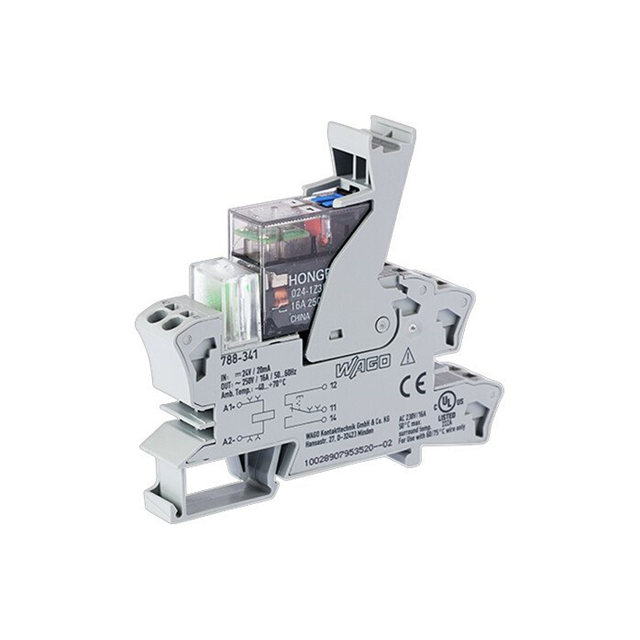

788-341
Manufacturer
WAGO CorporationDescription
RELAY GEN PURPOSE SPDT 16A 24V
Datasheet
DatasheetPackage
-
In Stock
96,843 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
788-341
788-341
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
Quick Inquiry
788-341
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | WAGO Corporation |
| Series | 788 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | DIN Rail |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 250VAC - Max |
| Load - Max Switching | 4000VA |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Spring Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 8 ms |
| Operating Temperature | -40° ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.44 kOhms |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 788-342 | 788-344 | 788-346 | 788-347 |
| Manufacturer | WAGO Corporation | WAGO Corporation | WAGO Corporation | WAGO Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPDT 16A 48V | RELAY GEN PURPOSE SPDT 16A 110V | RELAY GEN PURPOSE DPDT 8A 24V | RELAY GEN PURPOSE DPDT 8A 48V |
| Series | WAGO Corporation | WAGO Corporation | WAGO Corporation | WAGO Corporation |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products

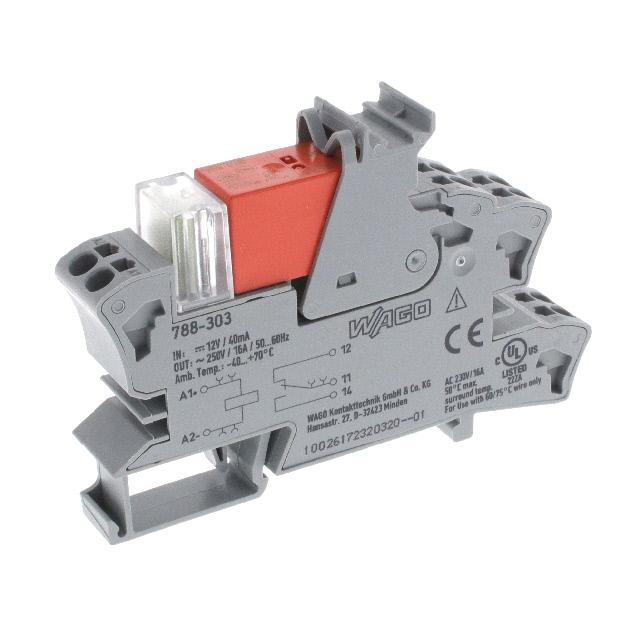

788-303
WAGO Corporation

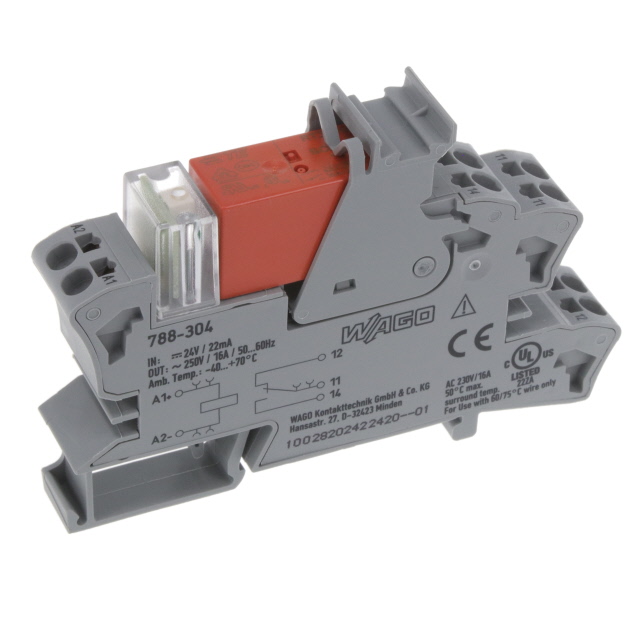

788-304
WAGO Corporation
788-304/003-000
WAGO Corporation
788-305
WAGO Corporation
788-306
WAGO Corporation
788-307
WAGO Corporation

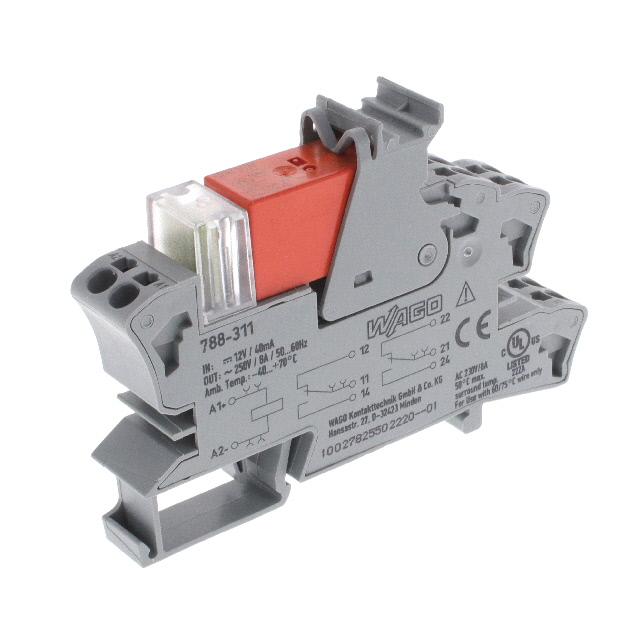

788-311
WAGO Corporation

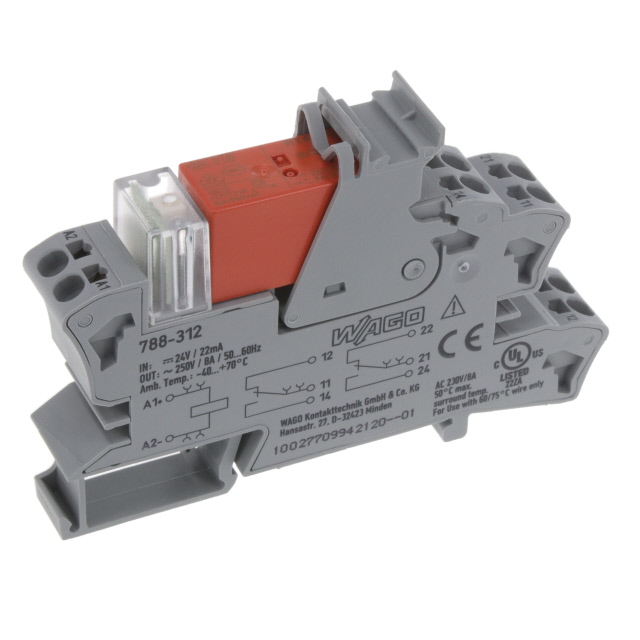

788-312
WAGO Corporation

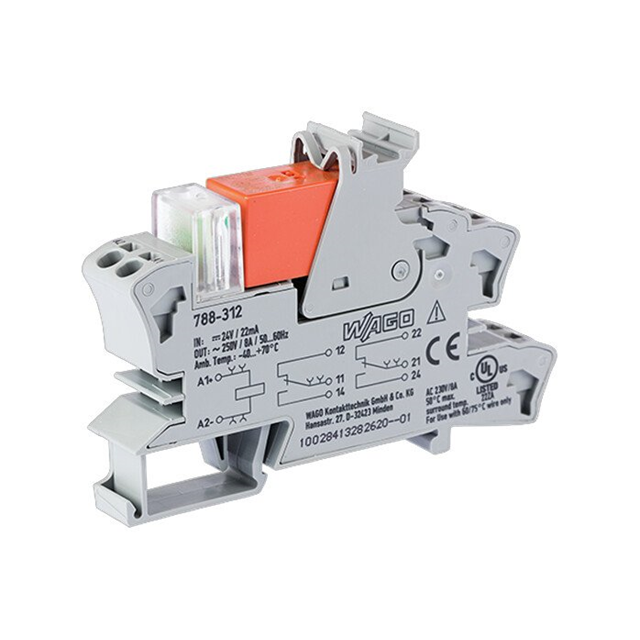

788-312/003-000
WAGO Corporation
788-313
WAGO Corporation
788-314
WAGO Corporation
788-315
WAGO Corporation
788-342
WAGO Corporation
788-344
WAGO Corporation

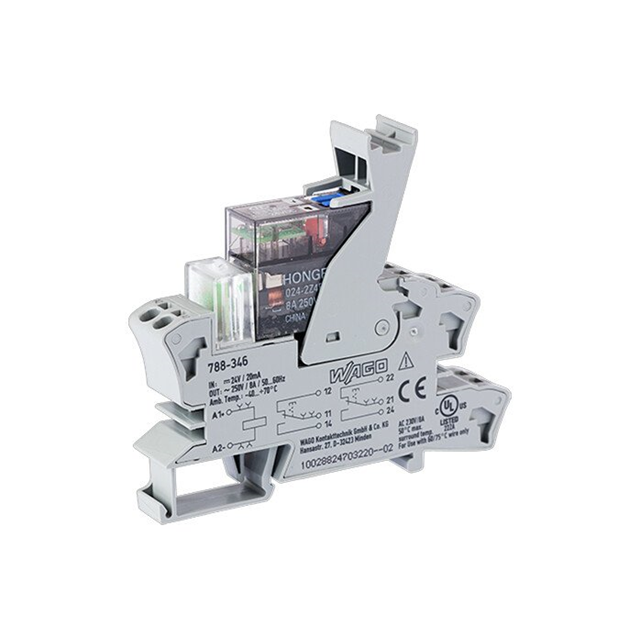

788-346
WAGO Corporation
788-347
WAGO Corporation
788-349
WAGO Corporation

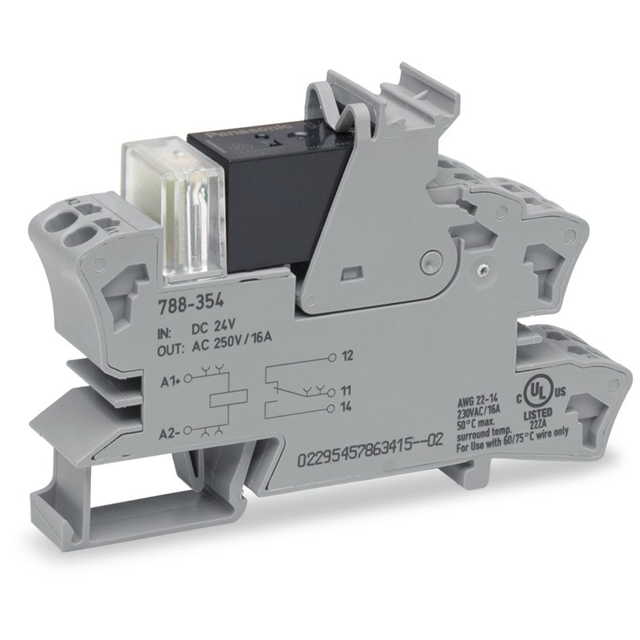

788-353
