Product CatalogPart Number
79B10ST
Manufacturer
Grayhill Inc.Description
SWITCH SLIDE DIP BCD 0.125A 6V
Datasheet
DatasheetPackage
-
In Stock
98,455 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
79B10ST
79B10ST
lmages are for reference only.Payment Methods
Delivery Services
Dip Switch BCD 10 Position Through Hole Slide (Standard) Actuator 125mA 6VDC
Quick Inquiry
79B10ST
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | Grayhill Inc. |
| Series | 79B |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | BCD |
| Number of Positions | 10 |
| Current Rating (Amps) | 125mA |
| Voltage Rating | 6VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.250" (6.35mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Tape Seal |
| Operating Temperature | -40°C ~ 85°C |
| Body Material | Plastic |
| Length | 1.180" (29.97mm) |
| Mechanical Life | 4,000 Cycles |
| Electrical Life | 2,000 Cycles |
| Base Product Number | 79B10 |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|
| Part Number | 79B10T | 76PRB04T | 76RSB07ST | 76GB04ST |
| Manufacturer | Grayhill Inc. | Grayhill Inc. | Grayhill Inc. | Grayhill Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

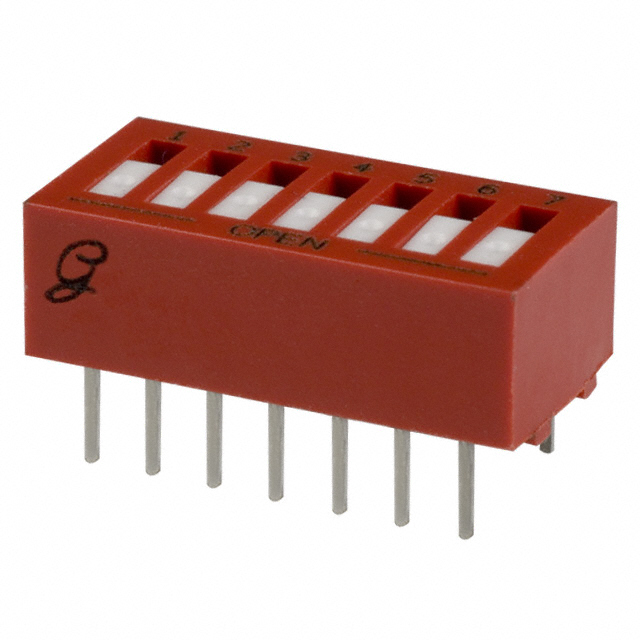

| Description | SWITCH SLIDE DIP BCD 0.125A 6V | SWITCH PIANO DIP SPST 0.15A 30V | SWITCH ROCKER DIP SPST 0.15A 30V | SWITCH ROCKER DIP SPST 0.15A 30V |
| Series | 79B | 76 | 76 | 76 |
| Packaging | Tube | Tube | Tube | Tube |
