800-10-007-10-001000

800-10-007-10-001000

800-10-007-10-001000

lmages are for reference only.

  • Part Number

    800-10-007-10-001000

  • Manufacturer

    Mill-Max Manufacturing Corp.

  • Description

    CONN HEADER VERT 7POS 2.54MM

  • Datasheet

    DatasheetDatasheet

  • Package

    -

  • In Stock

    41,504 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

Connector Header Through Hole 7 position 0.100" (2.54mm)

Quick Inquiry

800-10-007-10-001000

Get the Price Now!

Specifications

Category Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins
Manufacturer Mill-Max Manufacturing Corp.
Series 800
Packaging Bulk
RoHS Status ROHS3 Compliant
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 7
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.195" (4.95mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.438" (11.12mm)
Insulation Height 0.110" (2.79mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold
Contact Material Brass Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Features -
Operating Temperature -
Ingress Protection -
Material Flammability Rating -
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 10.0µin (0.25µm)
Applications -
Base Product Number 800-10

Parts with Similar Specifications

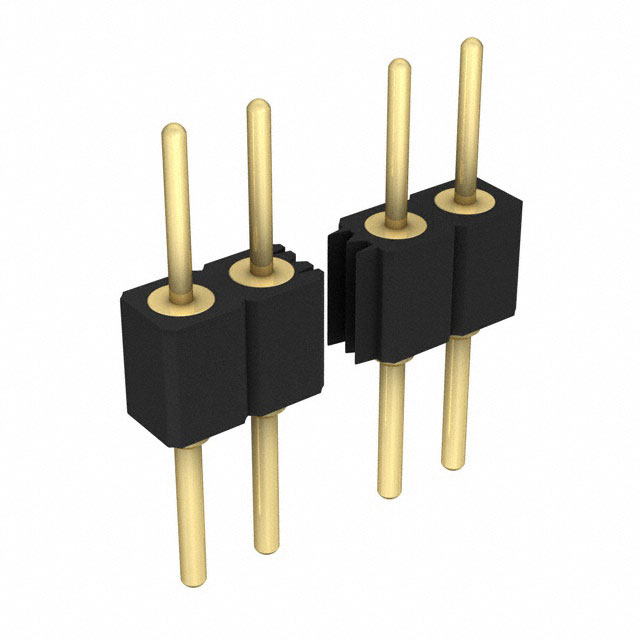

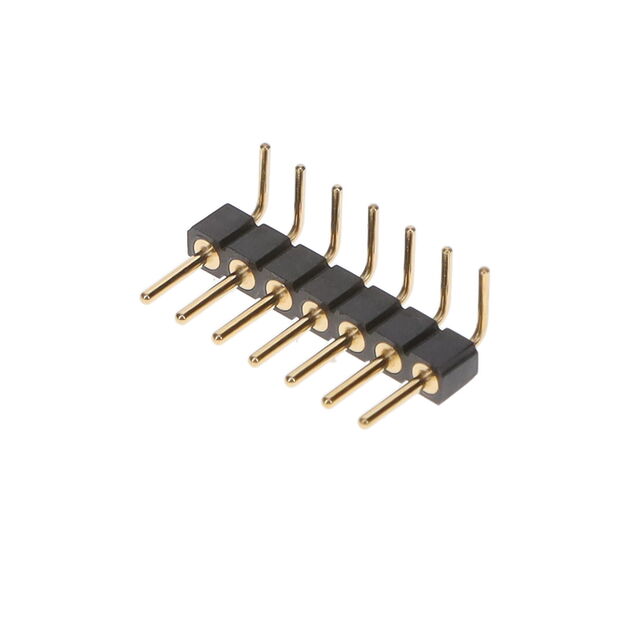

Product Attribute 800-10-007-10-001101 800-10-007-10-002101 800-10-007-10-004000 800-10-007-20-001000
Part Number 800-10-007-10-001101 800-10-007-10-002101 800-10-007-10-004000 800-10-007-20-001000
Manufacturer Preci-Dip Preci-Dip Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp.
RoHS Status ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant
Description CONN HEADER VERT 7POS 2.54MM CONN HEADER VERT 7POS 2.54MM CONN HEADER VERT 7POS 2.54MM CONN HEADER R/A 7POS 2.54MM
Series 800 800 800 800
Packaging Bulk Bulk Bulk Tube
