800-10-007-30-001000

800-10-007-30-001000

800-10-007-30-001000

lmages are for reference only.

  • Part Number

    800-10-007-30-001000

  • Manufacturer

    Mill-Max Manufacturing Corp.

  • Description

    CONN HEADER SMD 7POS 2.54MM

  • Datasheet

    DatasheetDatasheet

  • Package

    -

  • In Stock

    17,365 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

Connector Header Surface Mount 7 position 0.100" (2.54mm)

Quick Inquiry

800-10-007-30-001000

Get the Price Now!

Specifications

Category Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins
Manufacturer Mill-Max Manufacturing Corp.
Series 800
Packaging Bulk
RoHS Status ROHS3 Compliant
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 7
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.195" (4.95mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.110" (2.79mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold
Contact Material Brass Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Features -
Operating Temperature -
Ingress Protection -
Material Flammability Rating -
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 10.0µin (0.25µm)
Applications -
Base Product Number 800-10

Parts with Similar Specifications

Product Attribute 800-10-007-30-001101 800-10-007-30-001191 800-10-007-30-480101 800-10-007-30-480191

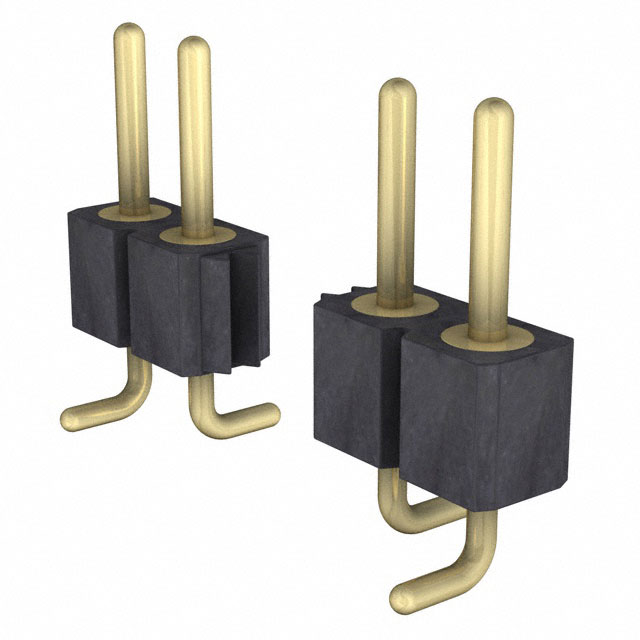

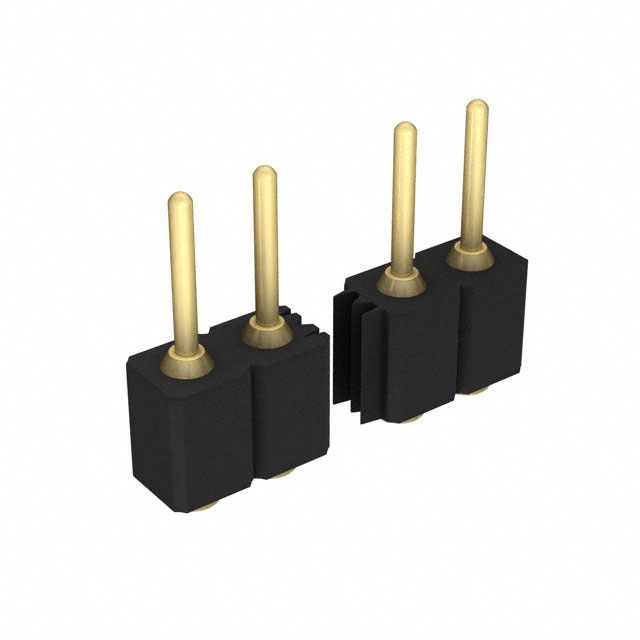

Part Number 800-10-007-30-001101 800-10-007-30-001191 800-10-007-30-480101 800-10-007-30-480191
Manufacturer Preci-Dip Preci-Dip Preci-Dip Preci-Dip
RoHS Status ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant
Description CONN HEADER SMD 7POS 2.54MM CONN HEADER SMD 7POS 2.54MM CONN HEADER SMD 7POS 2.54MM CONN HEADER SMD 7POS 2.54MM
Series 800 800 800 800
Packaging Bulk Tube Bulk Bulk
