801-43-008-10-003000

801-43-008-10-003000

801-43-008-10-003000

lmages are for reference only.

  • Part Number

    801-43-008-10-003000

  • Manufacturer

    Mill-Max Manufacturing Corp.

  • Description

    CONN RCPT 8POS 0.1 GOLD PCB

  • Datasheet

    DatasheetDatasheet

  • Package

    -

  • In Stock

    92,865 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Quick Inquiry

801-43-008-10-003000

Get the Price Now!

Specifications

Category Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets
Manufacturer Mill-Max Manufacturing Corp.
Series 801
Packaging Tube
RoHS Status ROHS3 Compliant
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Row Spacing - Mating -
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.165" (4.20mm)
Contact Length - Post 0.125" (3.18mm)
Operating Temperature -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights -
Ingress Protection -
Features -
Current Rating (Amps) 4.5A
Voltage Rating -
Applications -
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape Circular
Contact Material Beryllium Copper
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number 801-43

Parts with Similar Specifications

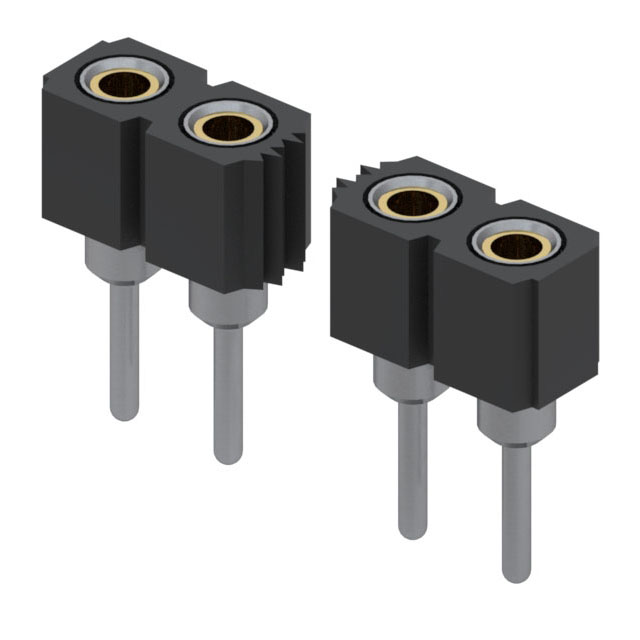

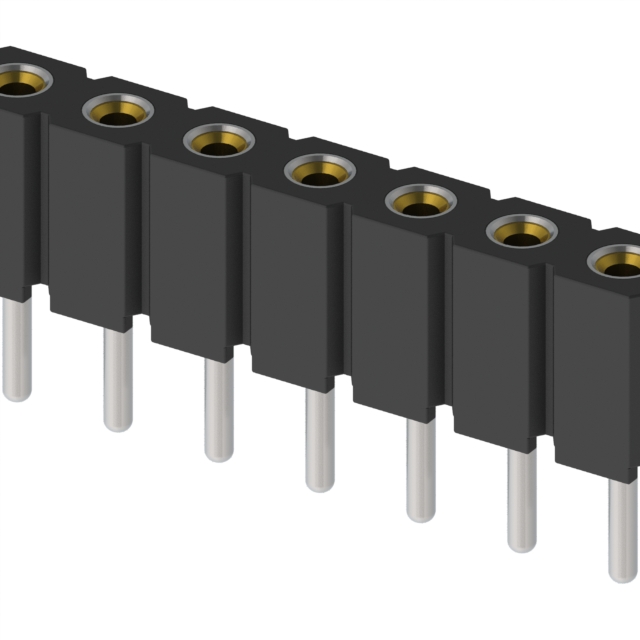

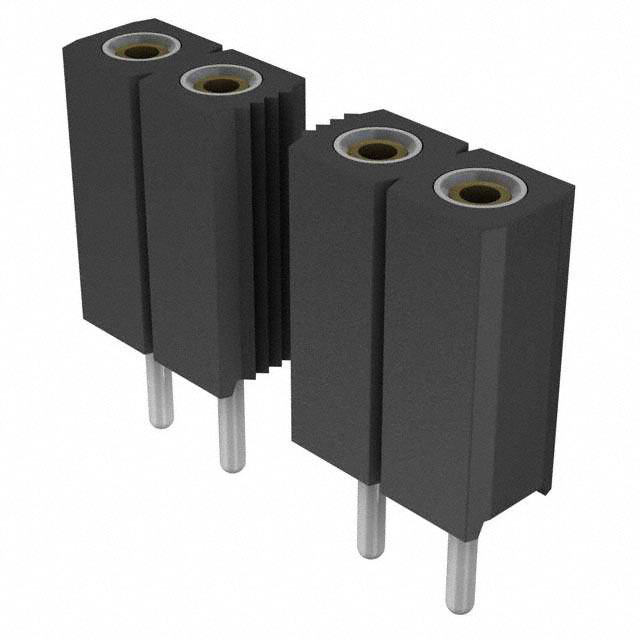

Product Attribute 801-43-008-10-001000 801-43-008-10-002000 801-43-008-10-004000 801-43-008-10-012000
Part Number 801-43-008-10-001000 801-43-008-10-002000 801-43-008-10-004000 801-43-008-10-012000
Manufacturer Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp.
RoHS Status ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant
Description CONN RCPT 8POS 0.1 GOLD PCB CONN RCPT 8POS 0.1 GOLD PCB CONN SOCKET STRIP 8POS CONN RCPT 8POS 0.1 GOLD PCB
Series Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp.
Packaging Bulk Bulk Tube Bulk
