803-43-034-62-001000

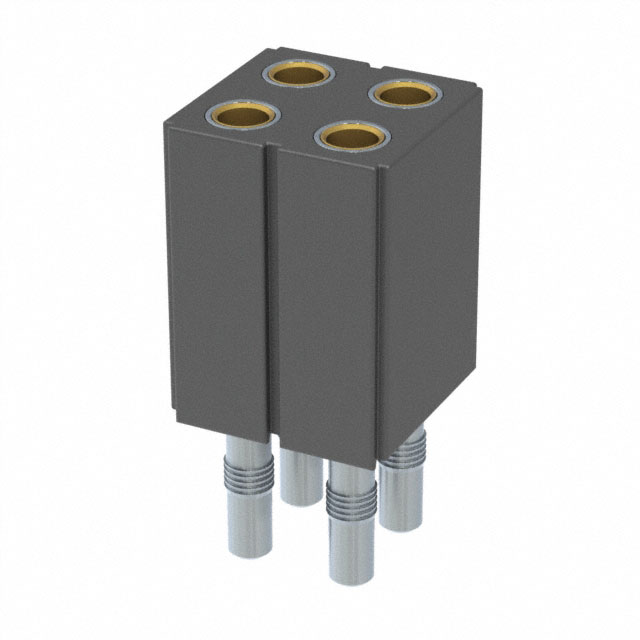

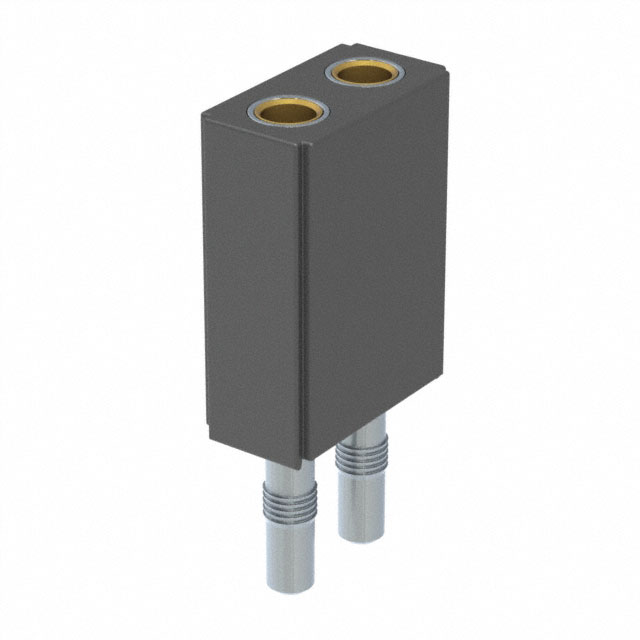

lmages are for reference only.803-43-034-62-001000
CONN RCPT 34POS 0.1 GOLD PCB
Datasheet-
85,423 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
34 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
803-43-034-62-001000
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 803 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.276" (7.00mm) |
| Contact Length - Post | 0.143" (3.63mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 4.5A |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Base Product Number | 803-43 |
| Product Attribute |  |
 |
 |
 |

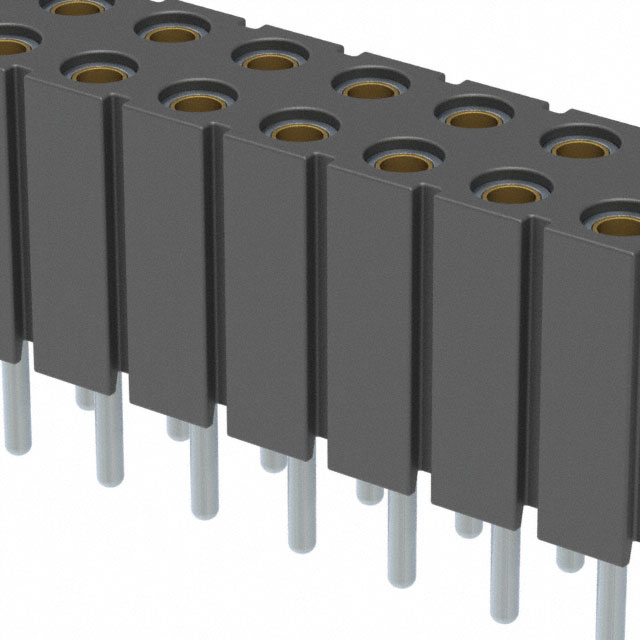

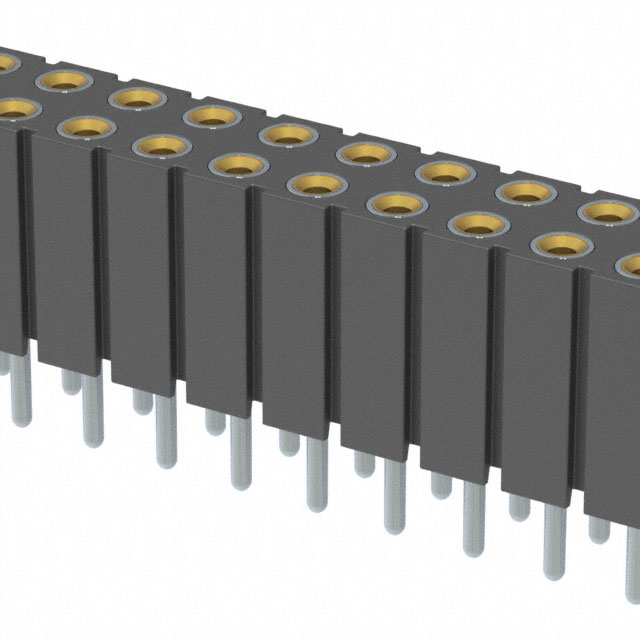

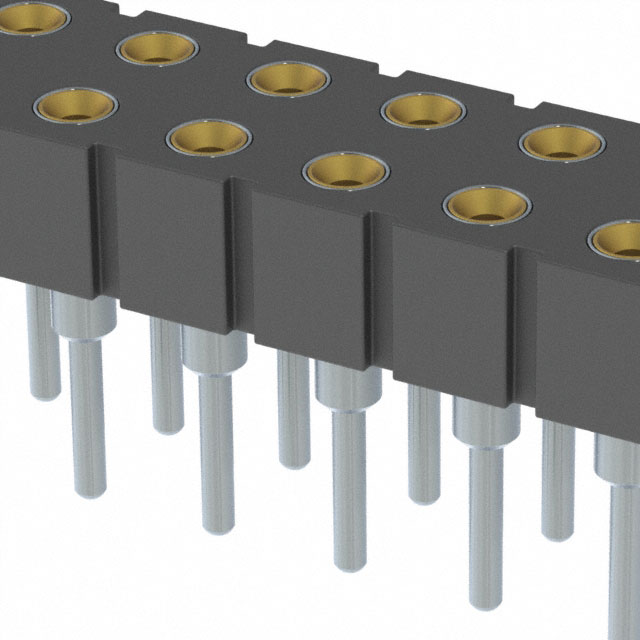

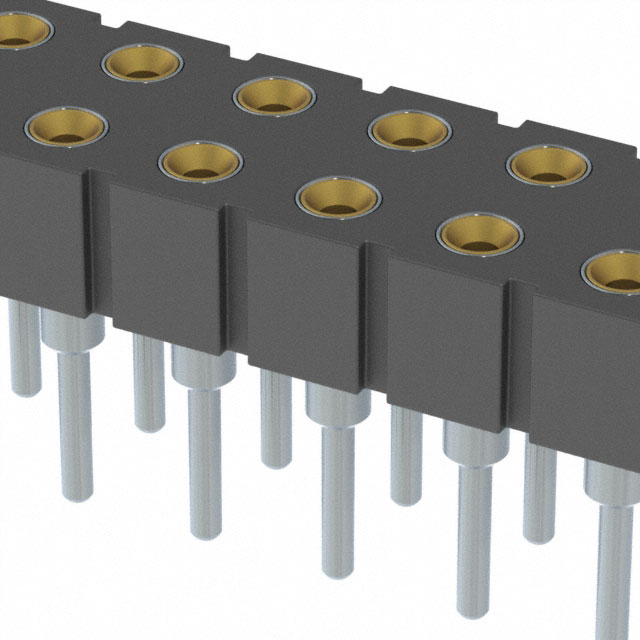

| Part Number | 803-43-034-10-001000 | 803-43-034-10-002000 | 803-43-034-10-003000 | 803-43-034-10-004000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT 34POS 0.1 GOLD PCB | CONN RCPT 34POS 0.1 GOLD PCB | CONN RCPT 34POS 0.1 GOLD PCB | CONN RCPT 34POS 0.1 GOLD PCB |
| Series | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| Packaging | Tube | Bulk | Bulk | Bulk |
