CONN RCPT 62POS 0.1 GOLD PCB
Datasheet-
24,297 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
62 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
803-91-062-10-001000
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 803 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 62 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Insulation Color | Black |
| Insulation Height | 0.276" (7.00mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 4.5A |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Base Product Number | 803-91 |
| Product Attribute |  |
 |
 |
 |
| Part Number | 803-91-062-10-002000 | 803-91-062-30-001000 | 803-91-062-61-001000 | 803-91-062-62-001000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

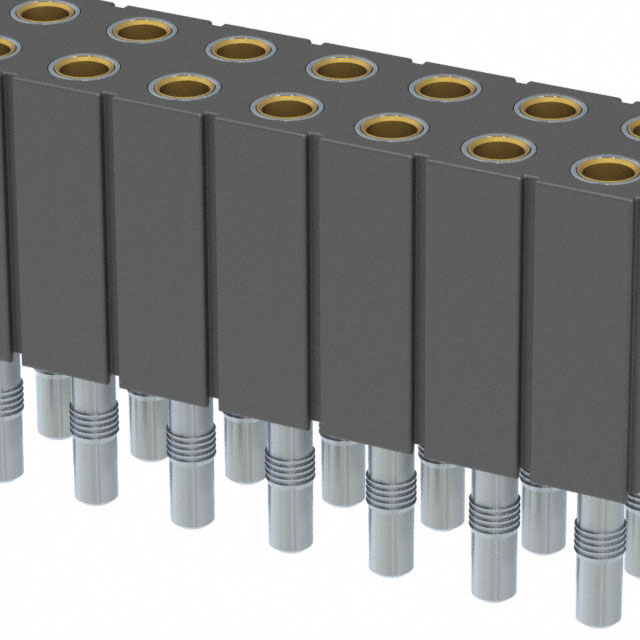

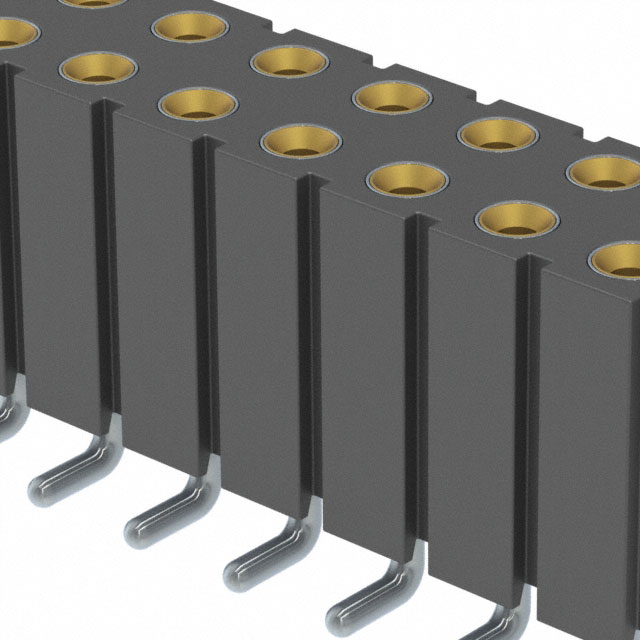

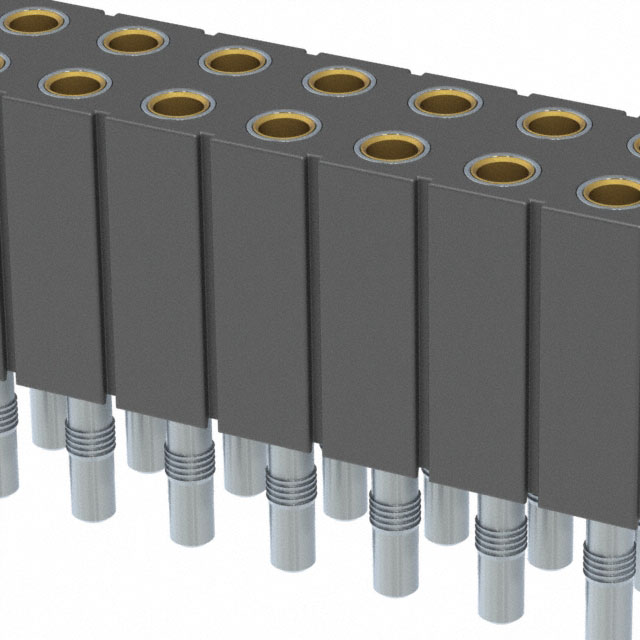

| Description | CONN RCPT 62POS 0.1 GOLD PCB | CONN RCPT 62POS 0.1 GOLD SMD | CONN RCPT 62POS 0.1 GOLD PCB | CONN RCPT 62POS 0.1 GOLD PCB |
| Series | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
