84223C
lmages are for reference only.84223C
FIXED IND 22UH 600MA 600MOHM SMD
DatasheetNonstandard
34,803 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Unshielded Wirewound Inductor 600 mA 600mOhm Max Nonstandard
84223C
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | 8400 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 600mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.130" W (4.50mm x 3.30mm) |
| Height - Seated (Max) | 0.114" (2.90mm) |
| Base Product Number | 84 |
| Product Attribute |  |
 |
 |
 |

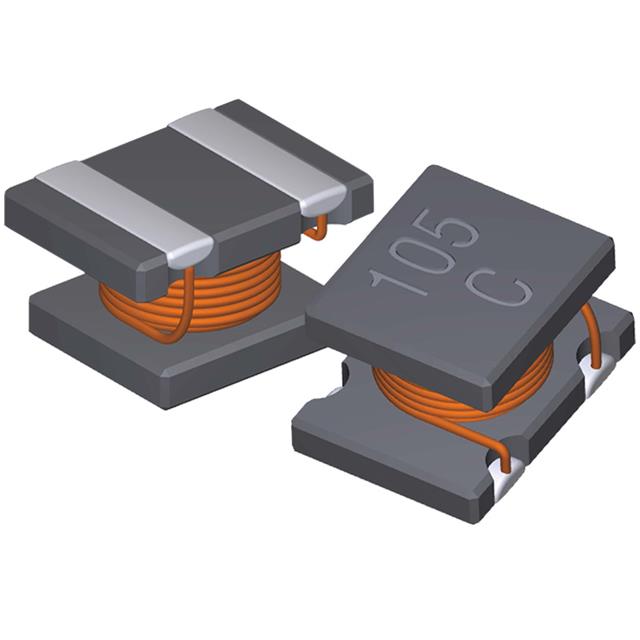

| Part Number | 84222C | 84224C | 84225C | AMDLA1707S-6R8MT |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.2UH 2A 90 MOHM SMD | FIXED IND 220UH 200MA 4.6OHM SMD | FIXED IND 2.2MH 50MA 45 OHM SMD | FIXED IND 6.8UH 24A 7.2MOHM SMD |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
