850-40-048-30-001000

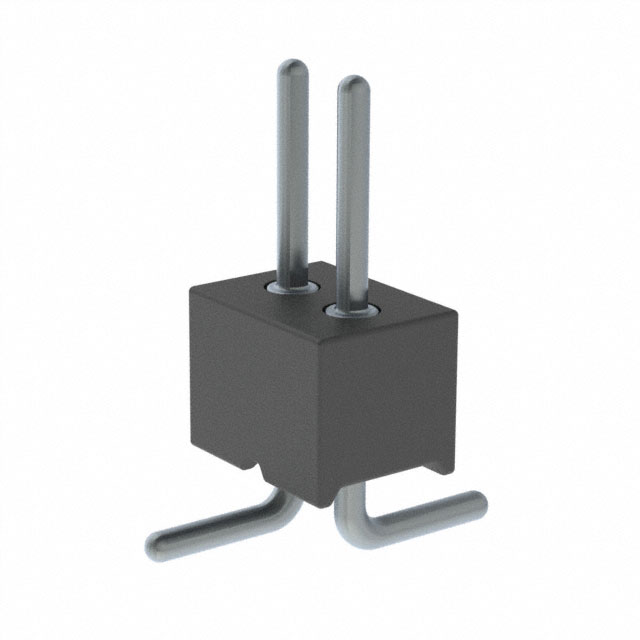

lmages are for reference only.850-40-048-30-001000
CONN HEADER SMD 48POS 1.27MM
Datasheet-
21,021 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Surface Mount 48 position 0.050" (1.27mm)
850-40-048-30-001000
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 850 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 48 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.118" (3.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.087" (2.20mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass Alloy |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Applications | - |
| Base Product Number | 850-40 |
| Product Attribute |  |
 |
 |
 |

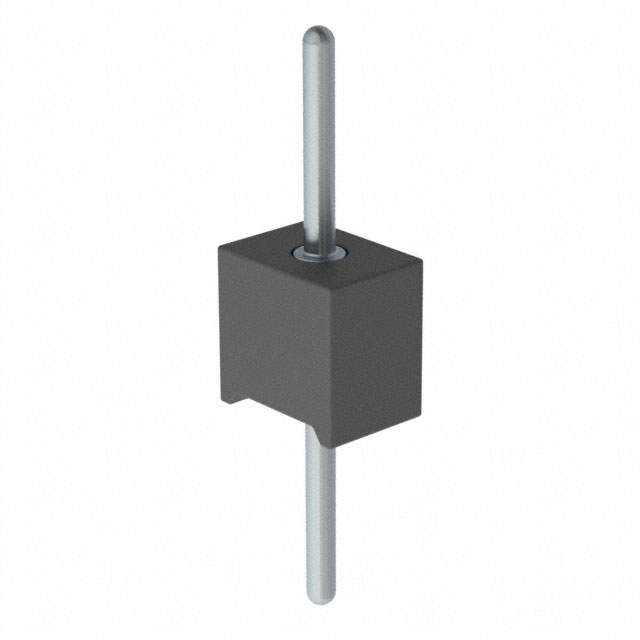

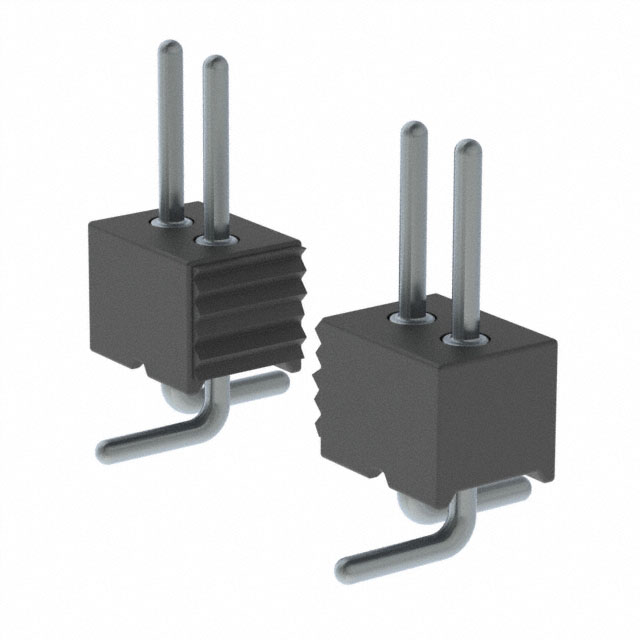

| Part Number | 850-40-048-10-001000 | 850-40-048-20-001000 | 850-40-048-30-002000 | 850-40-001-10-001000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER VERT 48POS 1.27MM | CONN HEADER R/A 48POS 1.27MM | CONN HEADER SMD 48POS 1.27MM | CONN HEADER VERT 1POS |
| Series | 850 | 850 | 850 | 850 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
