Product CatalogPart Number
8501KUDR12V51
Manufacturer
Schneider ElectricDescription
RELAY 2CO QC PIN 10A@240V 12VDC
Datasheet
DatasheetPackage
-
In Stock
10,728 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
8501KUDR12V51
8501KUDR12V51
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 12VDC Coil Chassis Mount
Quick Inquiry
8501KUDR12V51
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Schneider Electric |
| Series | Square D 8501K |
| Packaging | Box |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 300VAC, 30VDC - Max |
| Load - Max Switching | 3000VA, 300W |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, 8 Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | 8501KU |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

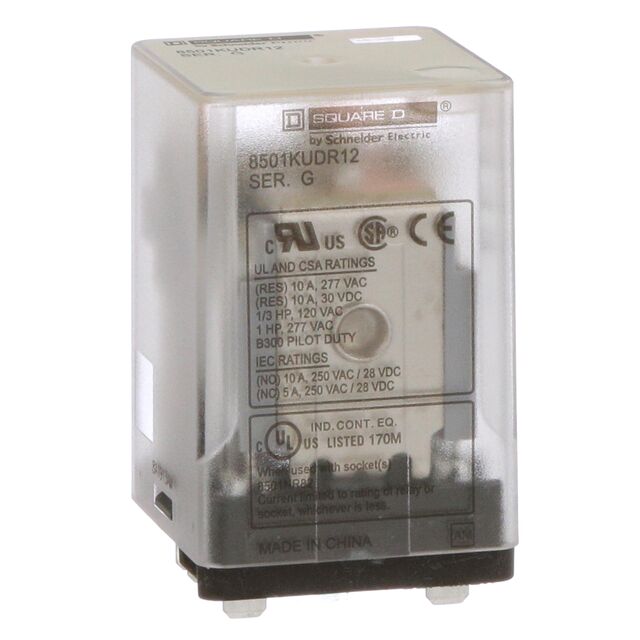

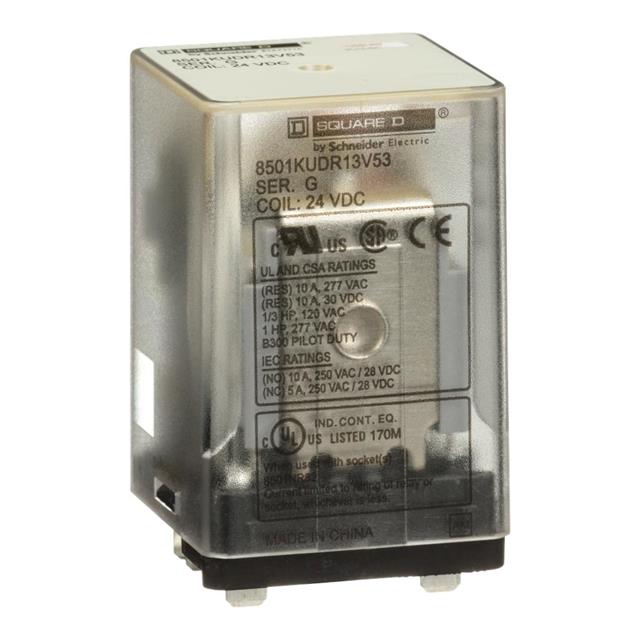

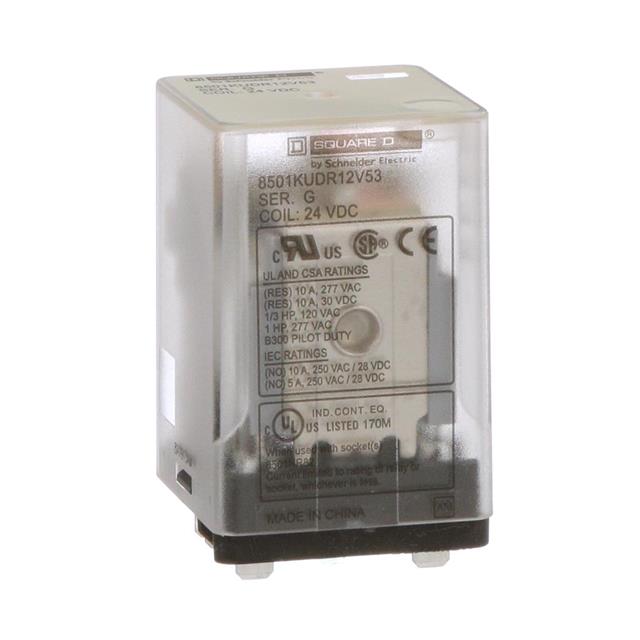

| Part Number | 8501KUDR12P14V53 | 8501KUDR12V53 | 8501KUDR12V60 | 8501KUDR13V53 |
| Manufacturer | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | RELAY 2CO QC PIN 10A@240V 24VDC | PLUG IN RELAY, TYPE KU, BLADE, 0 | RELAY 2CO QC PINS 10A@240V 240VA | PLUG IN RELAY, TYPE KU, BLADE, 0 |
| Series | Schneider Electric | Schneider Electric | Schneider Electric | Schneider Electric |
| Packaging | Box | Box | Box | Box |
