851-91-025-10-002000

851-91-025-10-002000

851-91-025-10-002000

lmages are for reference only.

  • Part Number

    851-91-025-10-002000

  • Manufacturer

    Mill-Max Manufacturing Corp.

  • Description

    CONN RCPT 25POS 0.05 GOLD PCB

  • Datasheet

    DatasheetDatasheet

  • Package

    -

  • In Stock

    28,332 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

25 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold

Quick Inquiry

851-91-025-10-002000

Get the Price Now!

Specifications

Category Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets
Manufacturer Mill-Max Manufacturing Corp.
Series 851
Packaging Bulk
RoHS Status
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 25
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 1
Row Spacing - Mating -
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Contact Length - Post 0.115" (2.92mm)
Operating Temperature -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin-Lead
Mated Stacking Heights -
Ingress Protection -
Features -
Current Rating (Amps) 3A
Voltage Rating -
Applications -
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape Circular
Contact Material Beryllium Copper
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number 851-91

Parts with Similar Specifications

Product Attribute 851-91-025-10-001000 851-91-025-20-001000 851-91-025-30-001000 851-91-001-10-001000

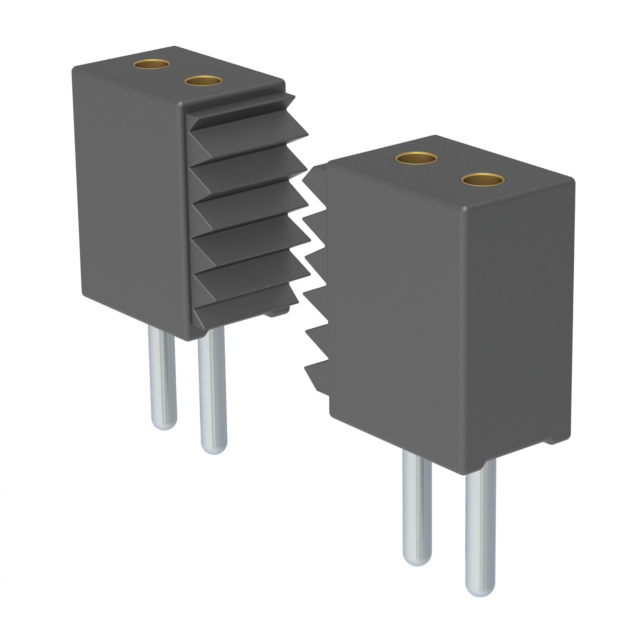

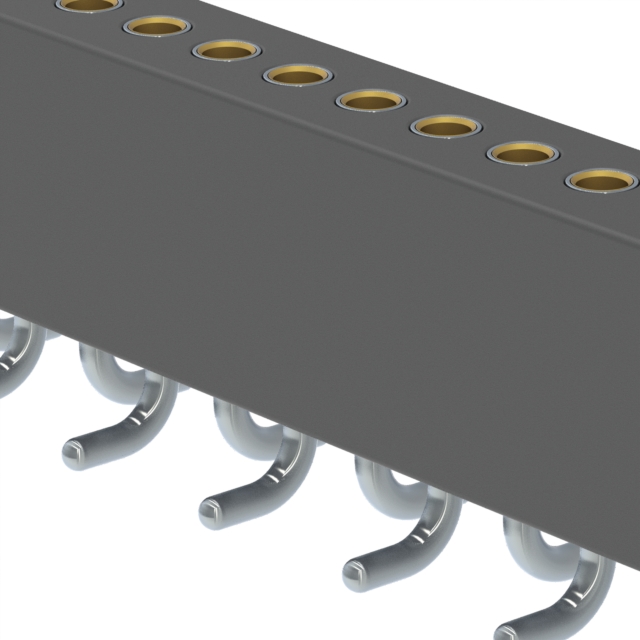

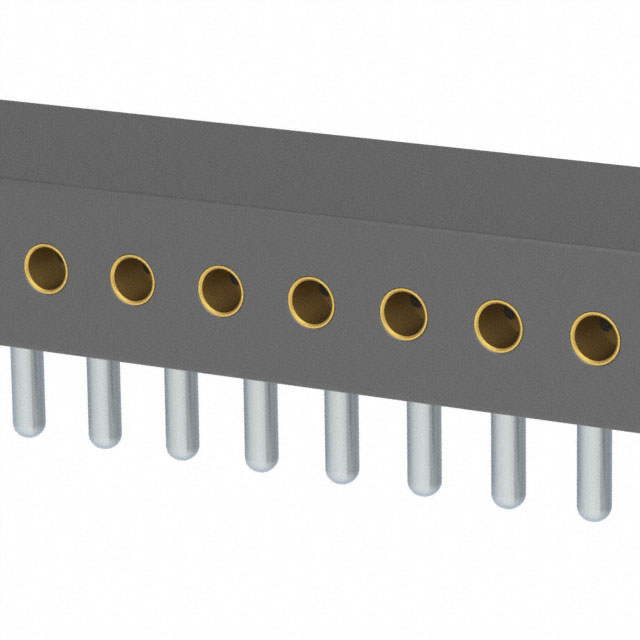

Part Number 851-91-025-10-001000 851-91-025-20-001000 851-91-025-30-001000 851-91-001-10-001000
Manufacturer Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp.
RoHS Status RoHS non-compliant RoHS non-compliant RoHS non-compliant
Description CONN RCPT 25POS 0.05 GOLD PCB CONN RCPT 25P 0.05 GOLD PCB R/A CONN RCPT 25POS 0.05 GOLD SMD CONN RCPT 1POS GOLD PCB
Series Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp. Mill-Max Manufacturing Corp.
Packaging Tube Bulk Bulk Bulk
