853-43-096-10-011000
lmages are for reference only.853-43-096-10-011000
CONN RCPT 96POS 0.05 GOLD PCB
Datasheet-
12,462 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
96 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
853-43-096-10-011000
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 853 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 96 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.158" (4.01mm) |
| Contact Length - Post | 0.199" (5.05mm) |
| Operating Temperature | - |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Contact Shape | Circular |
| Contact Material | Brass Alloy |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Base Product Number | 853-43 |
| Product Attribute |  |
 |
 |
 |

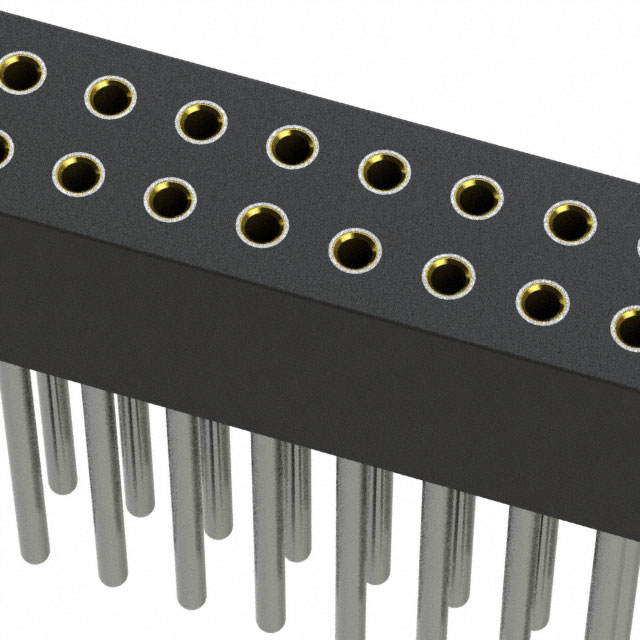

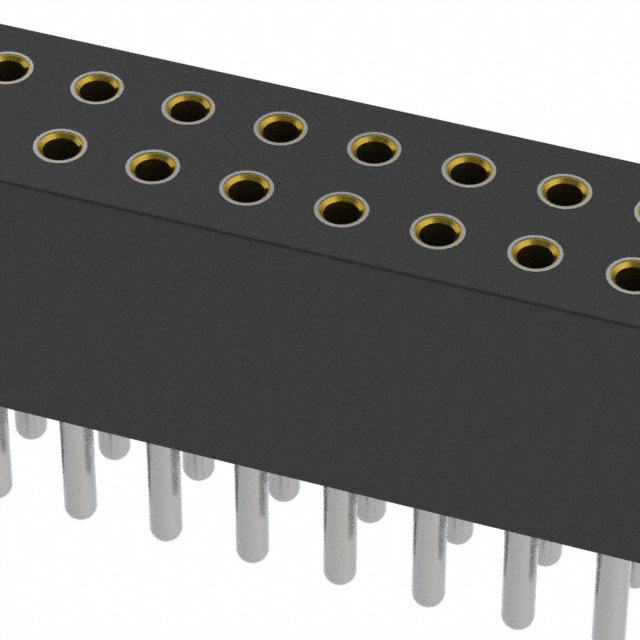

| Part Number | 853-43-096-10-001000 | 853-43-096-10-003000 | 853-43-096-10-021000 | 853-43-096-20-001000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |

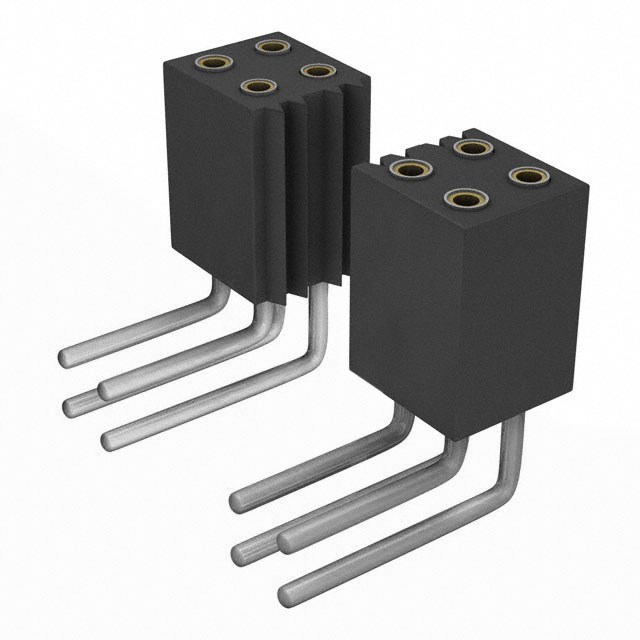

| Description | CONN RCPT 96POS 0.05 GOLD PCB | STANDARD SOCKET HEADER | CONN RCPT 96POS 0.05 GOLD PCB | CONN RCPT 96P 0.05 GOLD PCB R/A |
| Series | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
