853-99-090-10-001000
lmages are for reference only.853-99-090-10-001000
CONN RCPT 90P 0.05 TIN-LEAD PCB
Datasheet-
30,194 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
90 Position Receptacle Connector 0.050" (1.27mm) Through Hole Tin-Lead
853-99-090-10-001000
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 853 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 90 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Insulation Color | Black |
| Insulation Height | 0.158" (4.01mm) |
| Contact Length - Post | 0.102" (2.60mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Base Product Number | 853-99 |
| Product Attribute |  |
|
 |
|

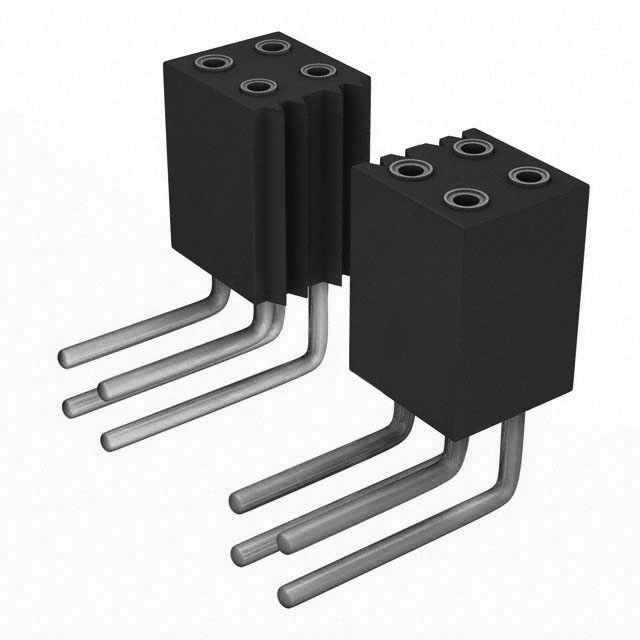

| Part Number | 853-99-090-20-001000 | 853-99-090-30-001000 | 853-91-002-10-001000 | 853-91-002-30-001000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CONN RCPT 90POS 0.05 TIN PCB R/A | CONN RCPT 90P 0.05 TIN-LEAD SMD | CONN RCPT 2POS GOLD PCB | CONN RCPT 2POS GOLD SMD |
| Series | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
