86BSD150PA-3AIC
lmages are for reference only.86BSD150PA-3AIC
SENSOR 150PSIA 14BIT
DatasheetModule
63,284 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 150PSI (1034.21kPa) Absolute 14 b Module
86BSD150PA-3AIC
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | 86BSD |
| Packaging | Tube |
| RoHS Status | |
| Base Product Number | 86BS |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 150PSI (1034.21kPa) |
| Output Type | I2C |
| Output | 14 b |
| Accuracy | ±0.25% |
| Voltage - Supply | 3.3V |
| Port Size | - |
| Port Style | No Port |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | Cable with Connector |
| Maximum Pressure | 300PSI (2068.43kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | - |
| Package / Case | Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

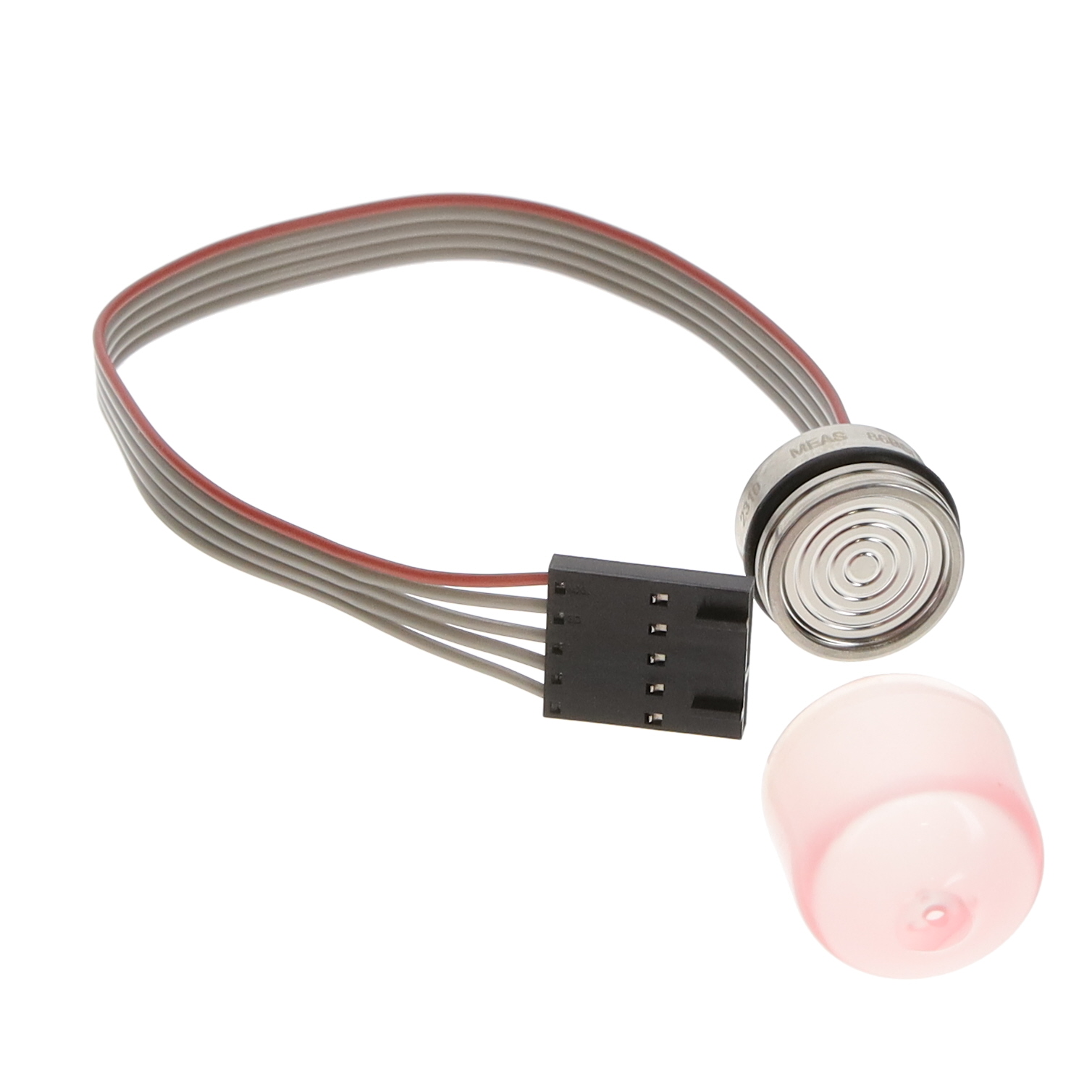

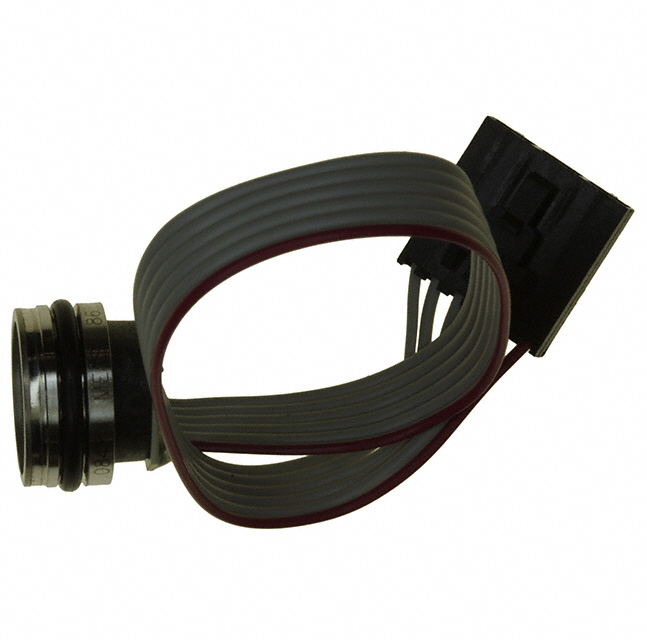

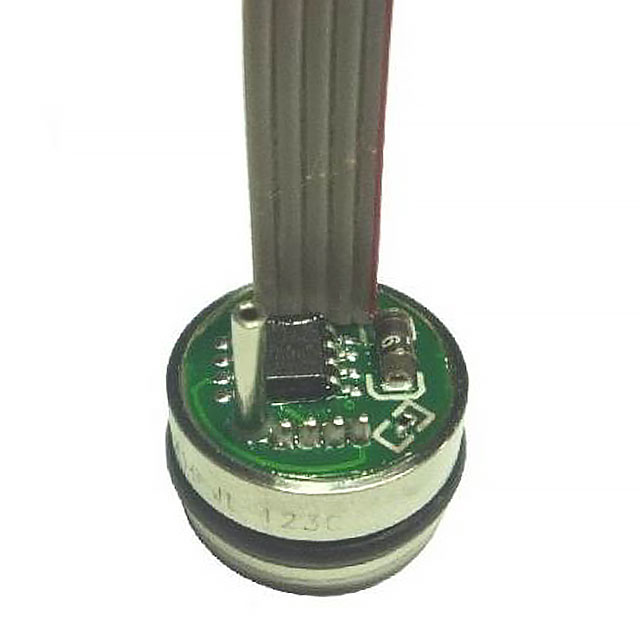

| Part Number | 86BSD150PG-3AIC | 86BSD015PG-3AIC | 86BSD015PG-3AIC | 86BSD030PA-3AIC |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SENSOR 150PSIG 14BIT | SENSOR 15PSIG 14BIT | SENSOR 15PSIG 14BIT | SENSOR 30PSIA 14BIT |
| Series | - | 86BSD | 86BSD | 86BSD |
| Packaging | Tube | Tube | Tube | Tube |
