896-46-009-90-300000
lmages are for reference only.896-46-009-90-300000
CONN RCPT USB3.0 TYPEA 9POS R/A
Datasheet-
95,992 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle
896-46-009-90-300000
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 896 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB-A (USB TYPE-A) |
| Number of Contacts | 9 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | Board Lock |
| Ingress Protection | - |
| Operating Temperature | - |
| Number of Ports | 1 |
| Current Rating (Amps) | 1.5A |
| Voltage - Rated | 30VAC |
| Mating Cycles | 5000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Base Product Number | 896-46 |
| Product Attribute |  |
 |
 |
 |

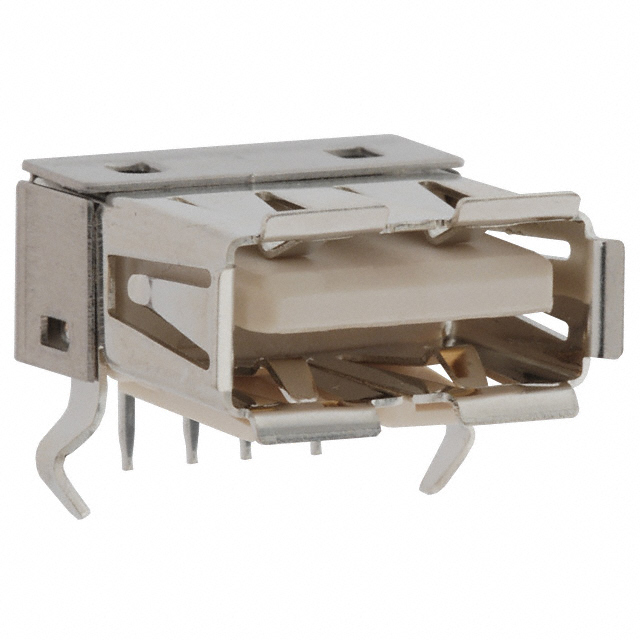

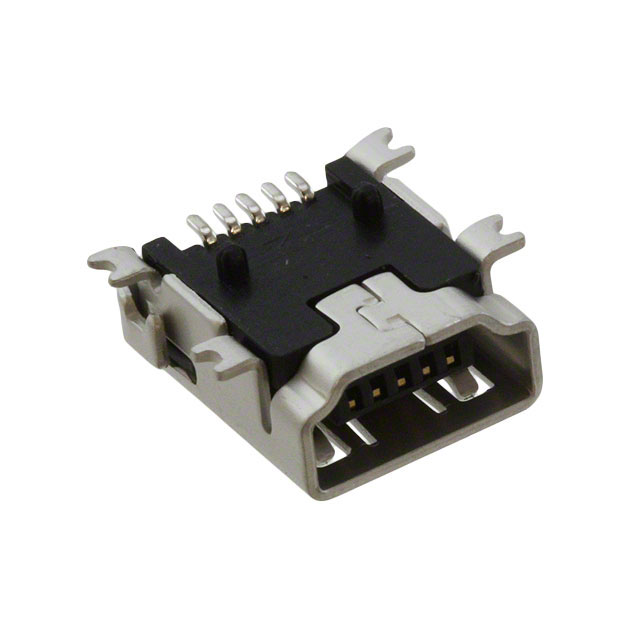

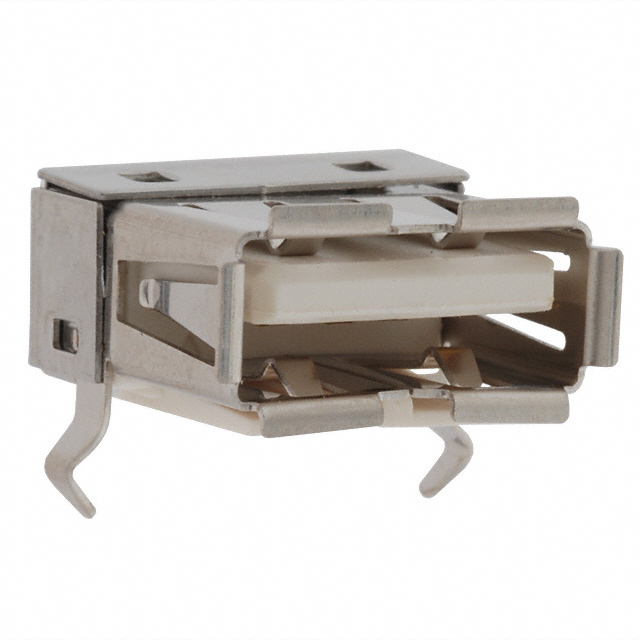

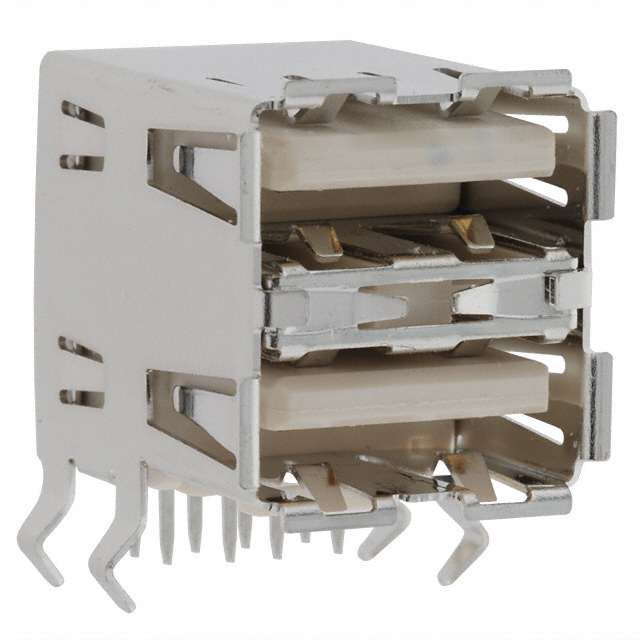

| Part Number | 896-43-004-00-000000 | 896-43-004-90-000000 | 896-43-005-00-100001 | 896-43-008-90-000000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT USB2.0 TYPEA 4P SMD RA | CONN RCPT USB2.0 TYPEA 4POS R/A | CONN RCPT USB2.0 MINI A SMD R/A | CONN RCPT USB2.0 TYPEA STACK R/A |
| Series | 896 | 896 | 896 | 896 |
| Packaging | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray |
