9-2348789-1
lmages are for reference only.9-2348789-1
HD MATENET 2+6 TAB ASSY, GRP E,
Datasheet-
87,843 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 Rectangular Connectors - Housings Plug Black
9-2348789-1
| Category | Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | MATEnet |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Plug |
| Contact Type | Tab |
| Number of Positions | 10 |
| Pitch | - |
| Number of Rows | 2 |
| Row Spacing | 0.236" (6.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | - |
| Color | Black |
| Features | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -40°C ~ 125°C |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

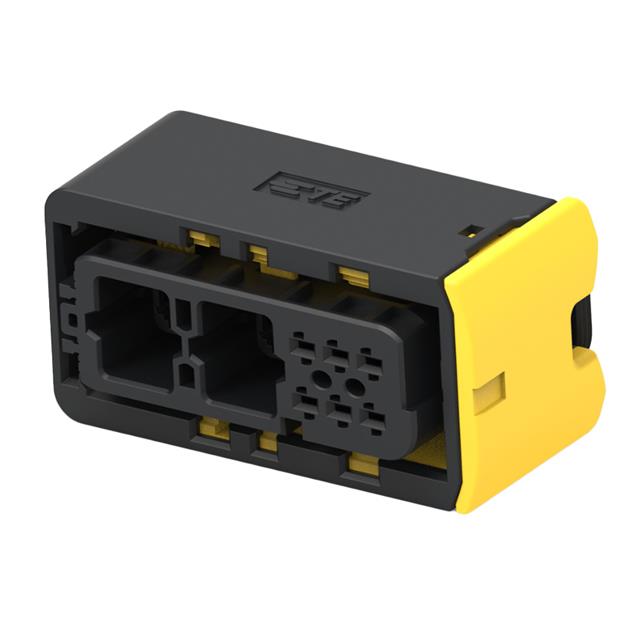

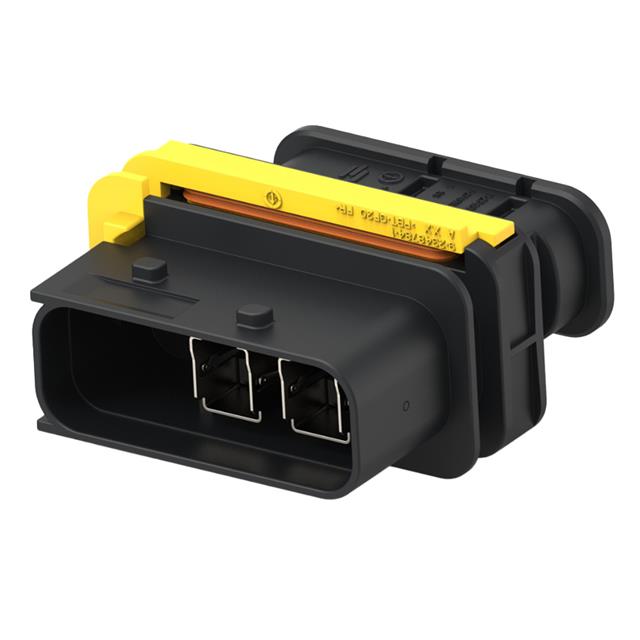

| Part Number | 9-2348789-1 | 9-2348782-1 | 9-2348782-1 | 9-2348786-1 |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HD MATENET 2+6 TAB ASSY, GRP E, | HD MATENET 2+6 TAB HSG ASSY, GRP | HD MATENET 2+6 TAB HSG ASSY, GRP | HD MATENET 2+6 REC HSG ASSY, GRP |
| Series | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| Packaging | Box | Box | Box | Box |
