Product CatalogPart Number
91960-0084N
Manufacturer
Aces ConnectorsDescription
8P, 1.27MM PSI FLASH SOCKET, SMT
Datasheet
DatasheetPackage
-
In Stock
27,781 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
91960-0084N
91960-0084N
lmages are for reference only.Payment Methods
Delivery Services
8 Pos DIP, ZIF (ZIP) Socket Tin Surface Mount
Quick Inquiry
91960-0084N
Specifications
| Category | Connectors, Interconnects - Sockets for ICs-Transistors - IC Sockets |
| Manufacturer | Aces Connectors |
| Series | 91960 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | DIP, ZIF (ZIP) |
| Number of Positions or Pins (Grid) | 8 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Material - Mating | Copper Alloy |
| Mounting Type | Surface Mount |
| Features | - |
| Termination | Solder |
| Pitch - Post | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Material - Post | Copper Alloy |
| Housing Material | Thermoplastic |
| Operating Temperature | -40°C ~ 85°C |
| Termination Post Length | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1 A |
| Contact Resistance | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

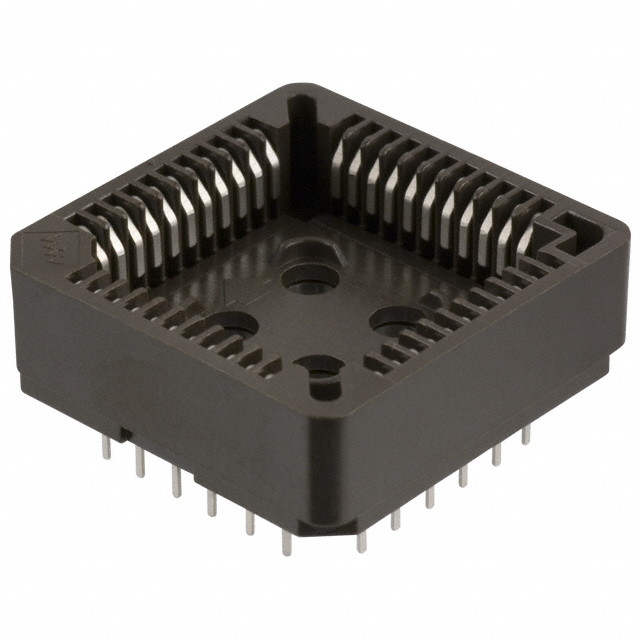

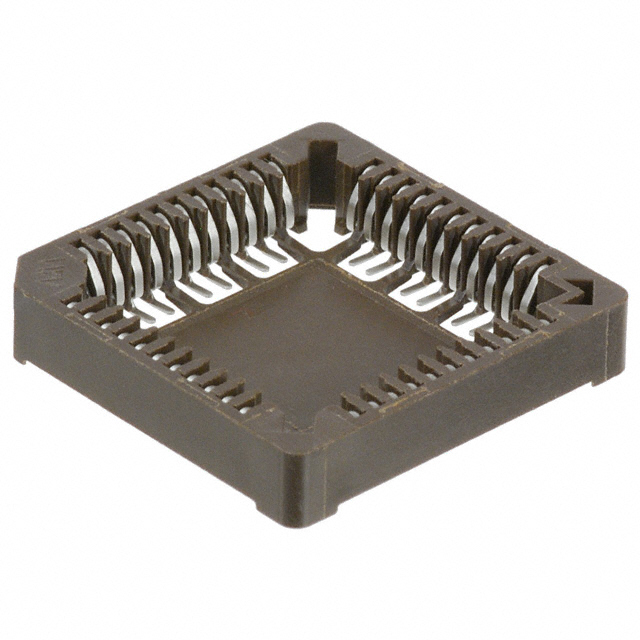

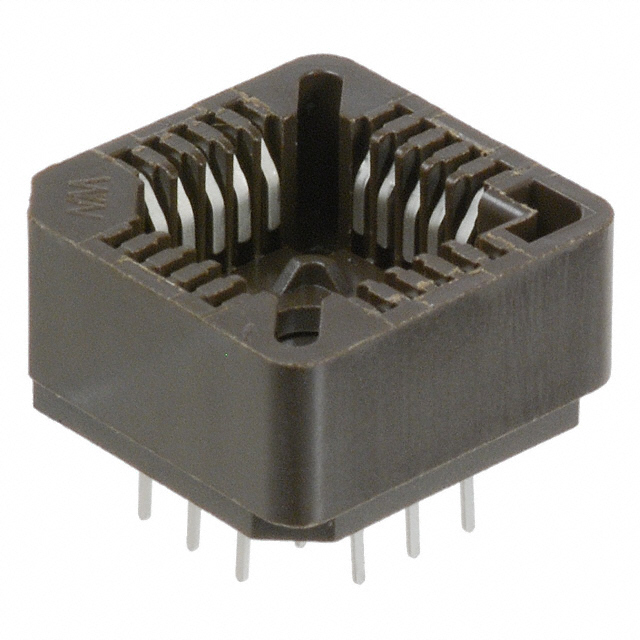

| Part Number | 940-44-028-24-000000 | 917-41-210-41-005000 | 940-99-044-17-400000 | 940-99-020-24-000000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN SOCKET PLCC 28POS TIN | CONN SKT TRANSISTOR | CONN SOCKET PLCC 44POS TIN-LEAD | CONN SOCKET PLCC 20POS TIN-LEAD |
| Series | 940 | 917 | 940 | 940 |
| Packaging | Tube | Tube | Tube | Tube |
