A-SL200EA34-036-GSR1

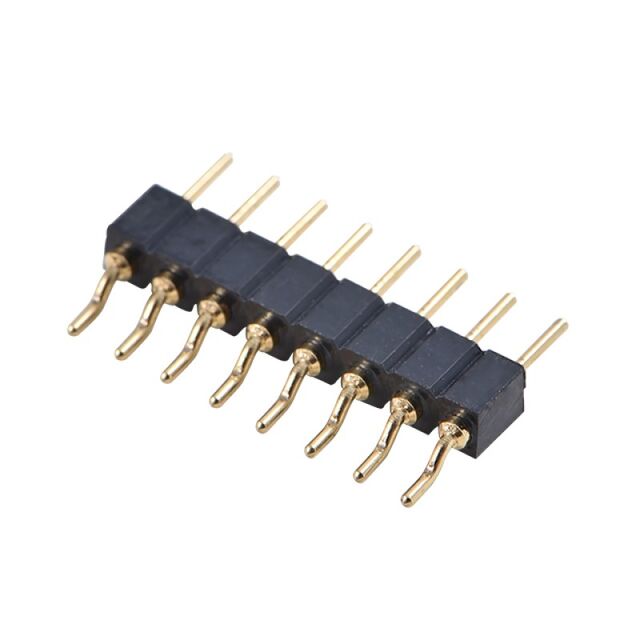

lmages are for reference only.A-SL200EA34-036-GSR1
PIN HEADER, 3.60/3.20MM, 2.00MM,
Datasheet-
55,030 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Surface Mount, Right Angle 34 position 0.079" (2.00mm)
A-SL200EA34-036-GSR1
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Assmann WSW Components |
| Series | A-SL200 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 34 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.142" (3.60mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.087" (2.20mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | A-SL200EA34-036-GST1 | A-SL200EA30-036-GSR1 | A-SL200EA30-036-GST1 | A-SL200EA31-036-GSR1 |
| Manufacturer | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PIN HEADER, 3.60/3.20MM, 2.00MM, | PIN HEADER, 3.60/3.20MM, 2.00MM, | PIN HEADER, 3.60/3.20MM, 2.00MM, | PIN HEADER, 3.60/3.20MM, 2.00MM, |
| Series | A-SL200 | A-SL200 | A-SL200 | A-SL200 |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
