A2D200R
lmages are for reference only.A2D200R
250V 200A RK1 TD FUSE
DatasheetCylindrical, Blade Terminal (Bolt)
13,839 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
200A 250 VAC 250 VDC Fuse Cartridge Bolt Mount
A2D200R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A2D-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 200A |
| Voltage Rating - AC | 250 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | RK1 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.575" Dia x 7.126" L (40.00mm x 181.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 250 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

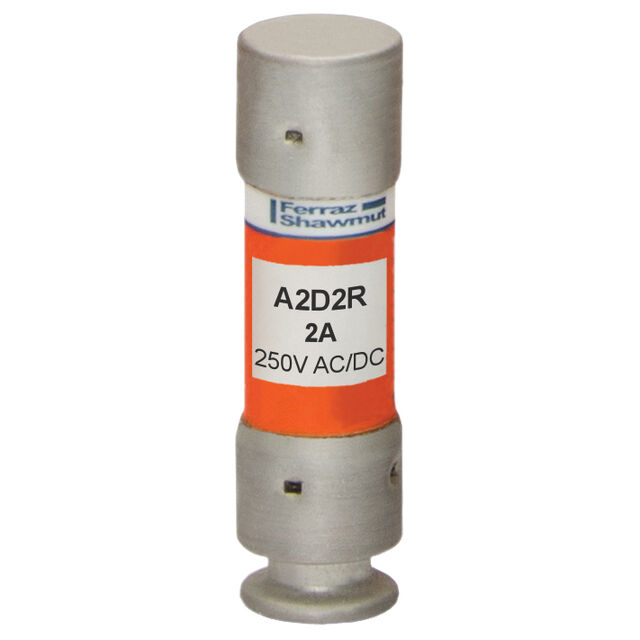

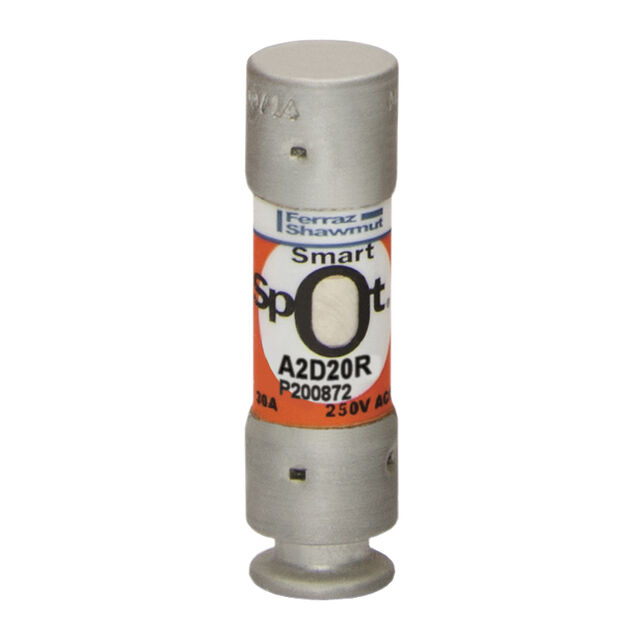

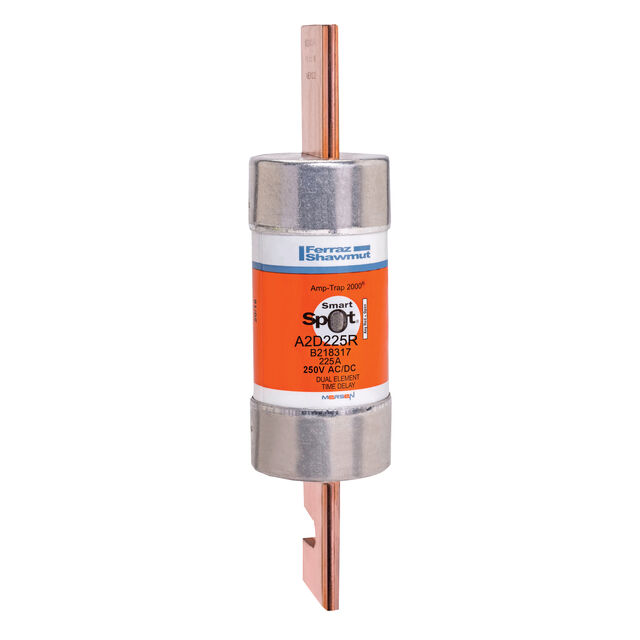

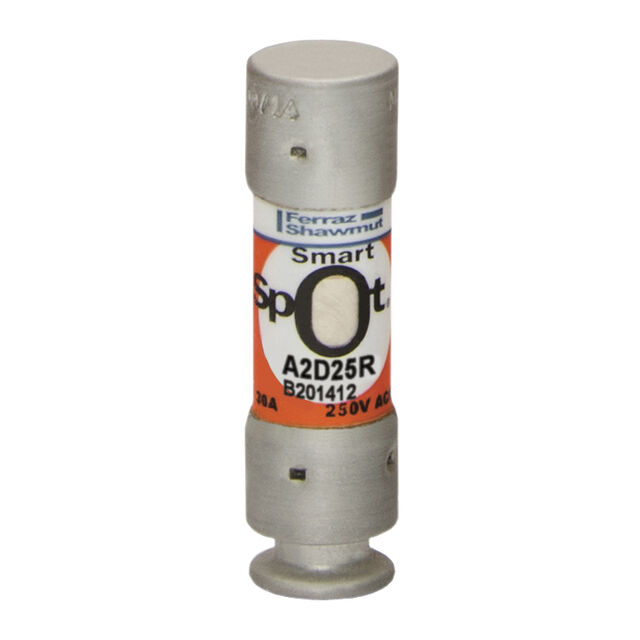

| Part Number | A2D20R | A2D225R | A2D25R | A2D2R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 250V 20A RK1 TD FUSE | 250V 225A RK1 TD FUSE | 250V 25A RK1 TD FUSE | 250V 2A RK1 TD FUSE |
| Series | A2D-R | A2D-R | A2D-R | A2D-R |
| Packaging | Box | Box | Box | Box |
