A2D70R
lmages are for reference only.A2D70R
250V 70A RK1 TD FUSE
DatasheetCylindrical, Blade Terminals
95,903 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
70A 250 VAC 250 VDC Fuse Cartridge Requires Holder
A2D70R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A2D-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 70A |
| Voltage Rating - AC | 250 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | RK1 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 1.063" Dia x 5.866" L (27.00mm x 149.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 250 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | A2D100R | A2D10R | A2D125R | A2D150R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

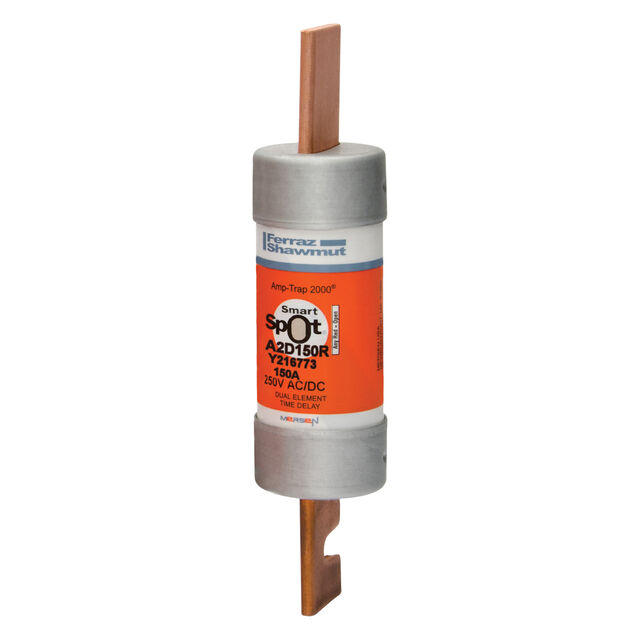

| Description | 250V 100A RK1 TD FUSE | 250V 10A RK1 TD FUSE | 250V 125A RK1 TD FUSE | 250V 150A RK1 TD FUSE |
| Series | A2D-R | A2D-R | A2D-R | A2D-R |
| Packaging | Box | Box | Box | Box |
