A4BQ1000
lmages are for reference only.A4BQ1000
L TD FUSE 600V 1000A A4BQ
DatasheetCylindrical, Blade Terminal (Bolt)
24,169 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1kA 600 VAC 500 VDC Fuse Cartridge Bolt Mount
A4BQ1000
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A4BQ |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 1kA |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | L |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 2.480" Dia x 10.748" L (63.00mm x 273.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 500 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

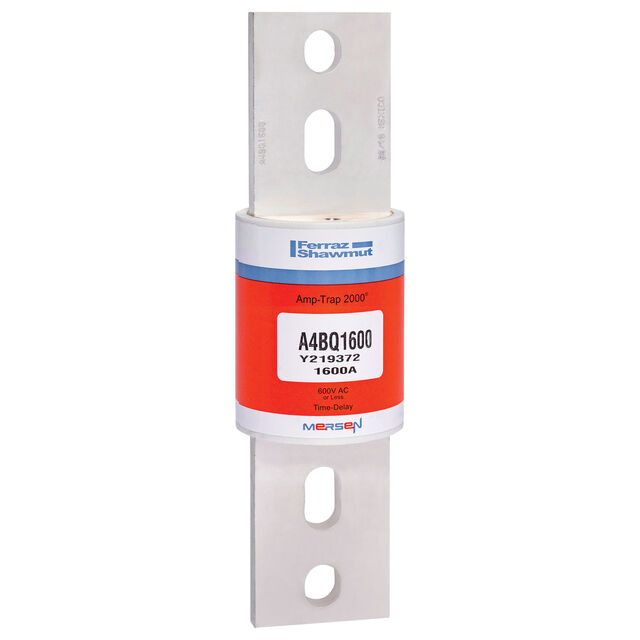

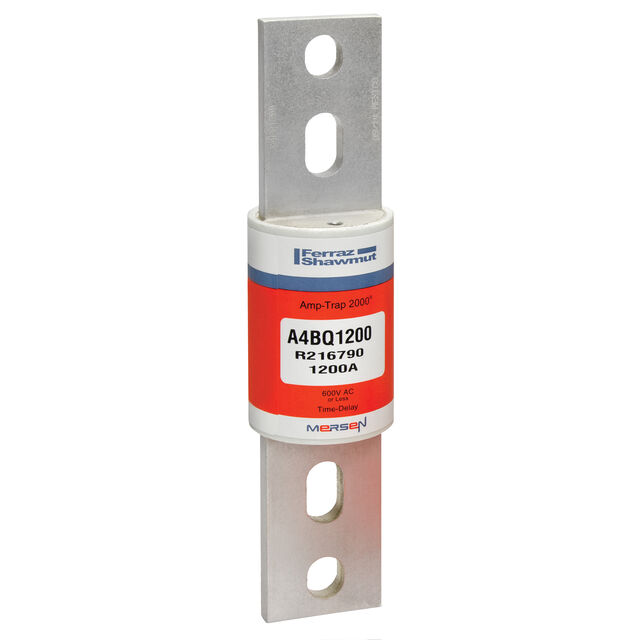

| Part Number | A4BQ1200 | A4BQ1600 | A480R12R-1 | A480R3R-1 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | L TD FUSE 600V 1200A A4BQ | L TD FUSE 600V 1600A A4BQ | FUSE,MOTOR PROTECTION,FERRULE MO | FUSE,MOTOR PROTECTION,FERRULE MO |
| Series | A4BQ | A4BQ | 9F60 | 9F60 |
| Packaging | Box | Box | Box | Box |
