A4BY1200
lmages are for reference only.A4BY1200
L TD FUSE 600V 1200A A4BY
DatasheetCylindrical, Blade Terminal (Bolt)
36,579 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.2kA 600 VAC 300 VDC Fuse Cartridge Bolt Mount
A4BY1200
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A4BY |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 1.2kA |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | L |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 2.480" Dia x 10.748" L (63.00mm x 273.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 300 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

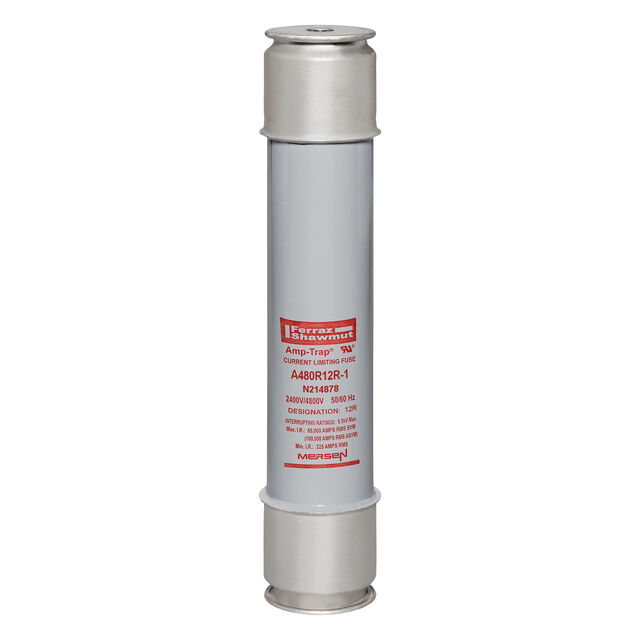

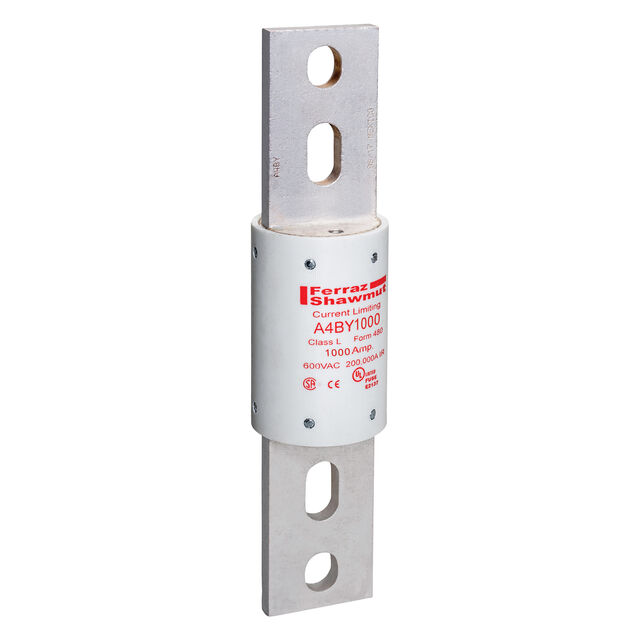

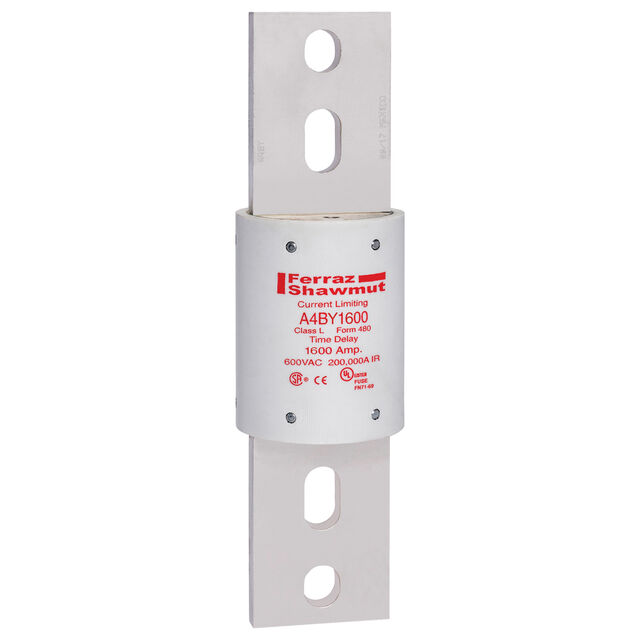

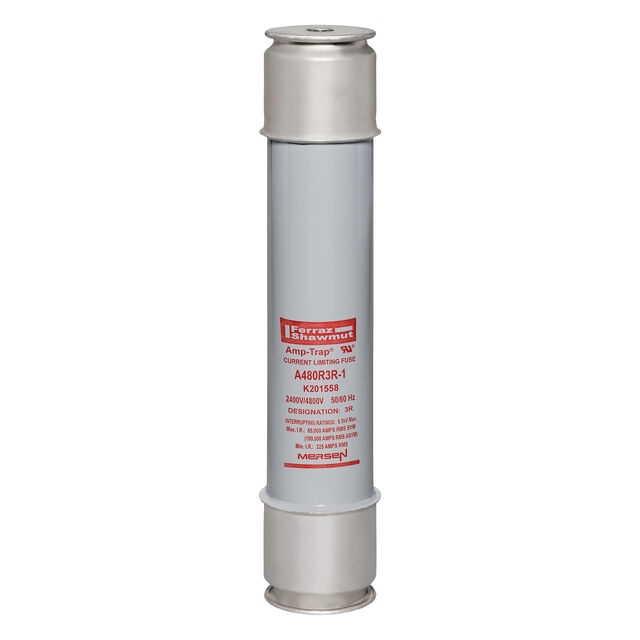

| Part Number | A4BY1000 | A4BY1600 | A480R12R-1 | A480R3R-1 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE,CLASS L,TIME DELAY,200KA AC | FUSE,CLASS L,TIME DELAY,200KA AC | FUSE,MOTOR PROTECTION,FERRULE MO | FUSE,MOTOR PROTECTION,FERRULE MO |
| Series | A4BY | A4BY | 9F60 | 9F60 |
| Packaging | Box | Box | Box | Box |
