A50P60-4
lmages are for reference only.A50P60-4
94600-500V 60A SEMICOND FUSE
DatasheetCylindrical, Blade Terminal (Bolt)
18,666 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60A 500 VAC 450 VDC Fuse Cartridge Bolt Mount
A50P60-4
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | A50P |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 60A |
| Voltage Rating - AC | 500 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | - |
| Approval Agency | UR |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 100kA AC, 79kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 0.811" Dia x 3.189" L (20.60mm x 81.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 450 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

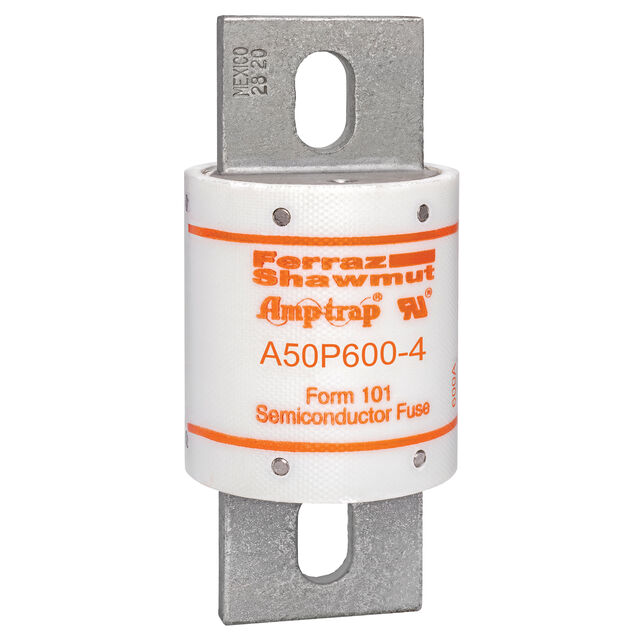

| Part Number | A50P600-4 | A50P100-4 | A50P125-4 | A50P150-4 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | 500V 600A SEMICOND FUSE | FUSE,FAST ACTING,NO BLOWN INDICA | FUSE,FAST ACTING,NO BLOWN INDICA | FUSE,FAST ACTING,NO BLOWN INDICA |
| Series | A50P | A50P | A50P | A50P |
| Packaging | Box | Box | Box | Box |
