A6HR-0104-R100
lmages are for reference only.A6HR-0104-R100
SWITCH PIANO DIP SPST 0.025A 24V
Datasheet-
12,566 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 10 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
A6HR-0104-R100
| Category | Switches - DIP Switches - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | A6HR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Circuit | SPST |
| Number of Positions | 10 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Piano |
| Actuator Level | Raised |
| Contact Material | - |
| Contact Finish | Gold |
| Height Above Board | 0.165" (4.20mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination Style | Gull Wing |
| Pitch | 0.050" (1.27mm), Half |
| Washable | No |
| Features | - |
| Operating Temperature | -30°C ~ 85°C |
| Body Material | - |
| Length | 0.544" (13.82mm) |
| Mechanical Life | - |
| Electrical Life | 1,000 Cycles |
| Base Product Number | A6H |
| Product Attribute |  |
 |
 |
 |

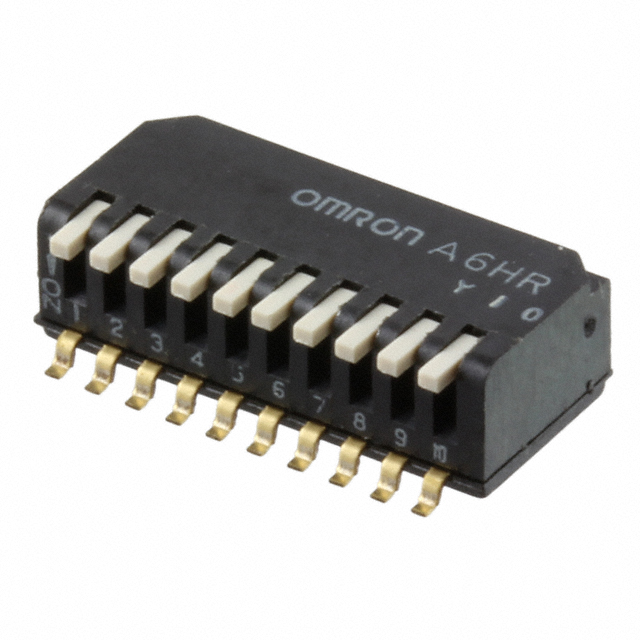

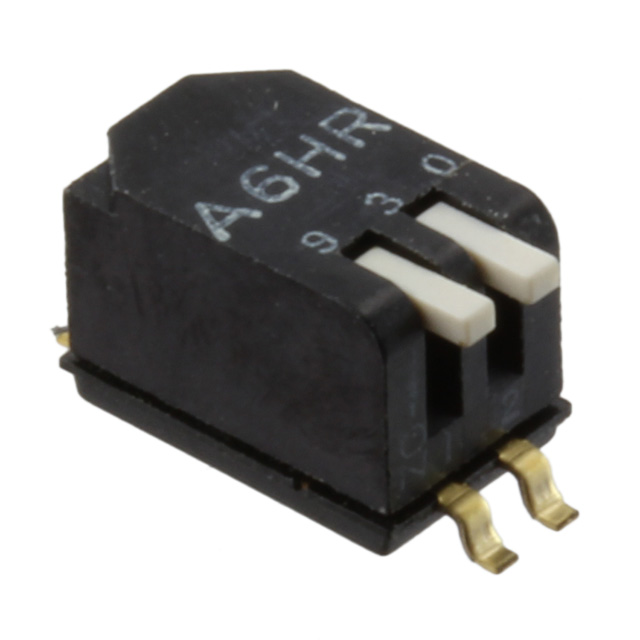

| Part Number | A6HR-0104 | A6HR-0104-PM | A6HR-2104 | A6HR-2104-PM |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SWITCH PIANO DIP SPST 0.025A 24V | SWITCH PIANO DIP SPST 0.025A 24V | SWITCH PIANO DIP SPST 0.025A 24V | SWITCH PIANO DIP SPST 0.025A 24V |
| Series | A6HR | A6HR | A6HR | A6HR |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
