Product CatalogPart Number
A79017-001
Manufacturer
OmneticsDescription
NANO 18 SKT FEMALE R/A SMT W/ 6
Datasheet
DatasheetPackage
-
In Stock
39,893 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
A79017-001
A79017-001
lmages are for reference only.Payment Methods
Delivery Services
18 Position Receptacle Connector 0.025" (0.64mm) Surface Mount, Right Angle Gold
Quick Inquiry
A79017-001
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Omnetics |
| Series | Nano Strip |
| Packaging | Case |
| RoHS Status | |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.025" (0.64mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.030" (0.76mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Insulation Color | Natural |
| Insulation Height | 0.070" (1.78mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Guide Pin |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Thermoplastic |
| Contact Shape | Circular |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

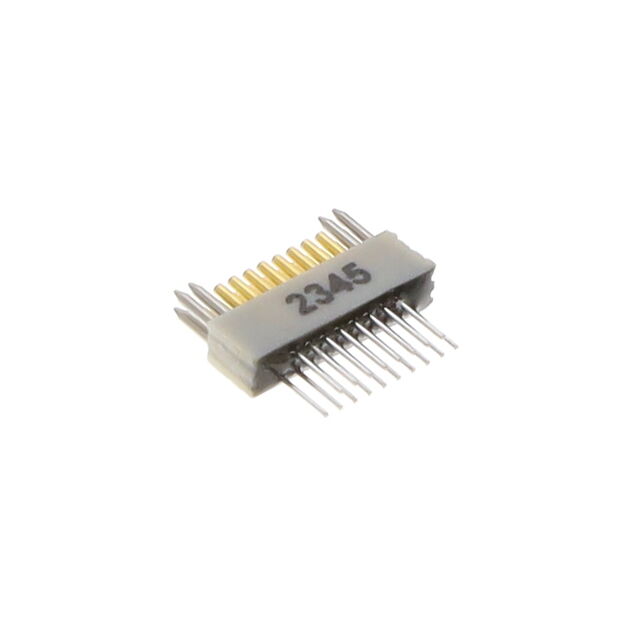

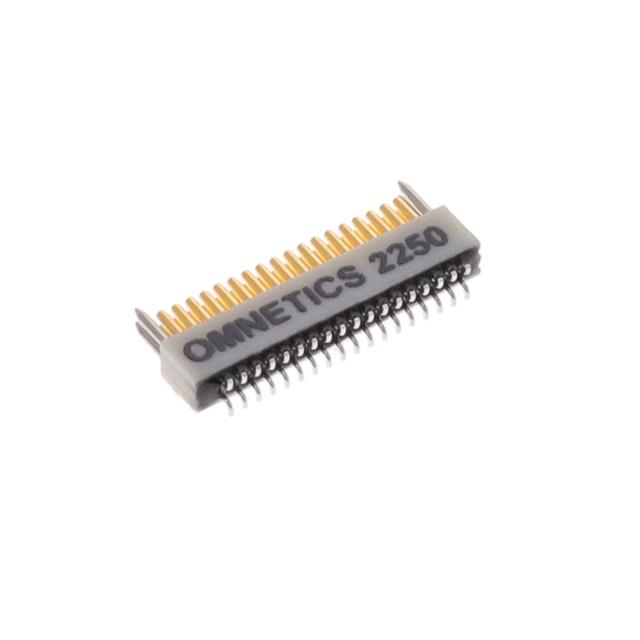

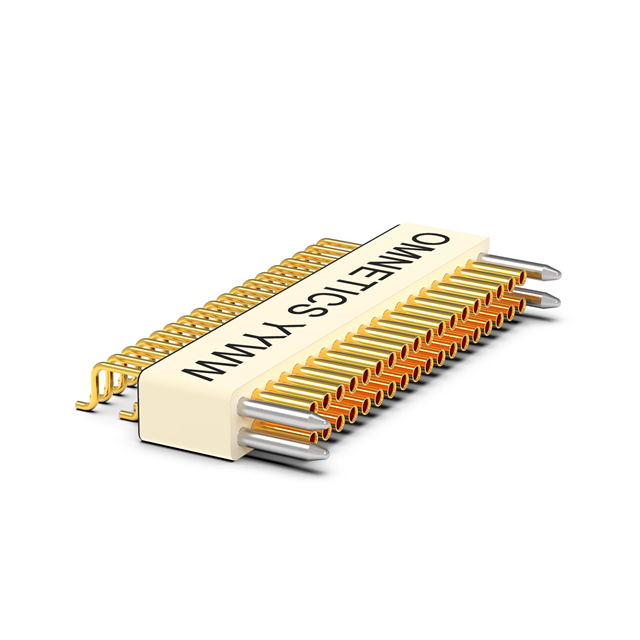

| Part Number | A79015-001 | A79023-001 | A79025-001 | A79027-001 |
| Manufacturer | Omnetics | Omnetics | Omnetics | Omnetics |
| RoHS Status | RoHS non-compliant | |||
| Description | NANO 18 SKT FEMALE PCB W/ 6 GUID | NANO 36 SKT FEMALE PCB W/ 4 GUID | 36 POSITION DUAL ROW FEMALE NANO | NANO 36 SKT FEMALE SMT W/ 4 GUID |
| Series | Omnetics | Omnetics | Omnetics | Omnetics |
| Packaging | Case | Case | Bag | Case |
